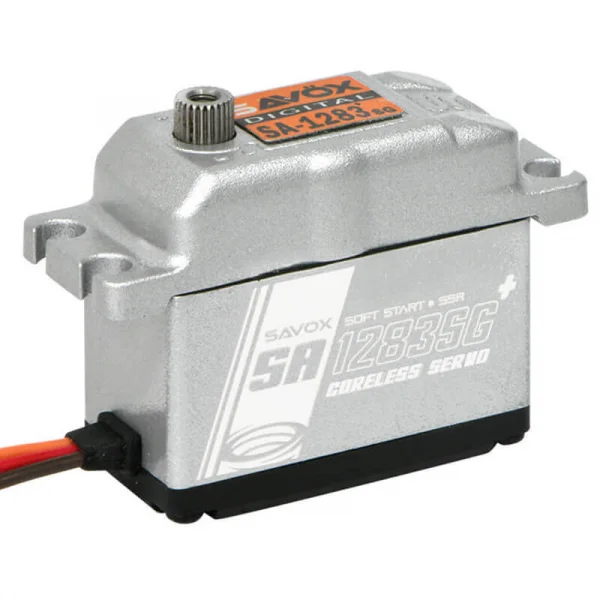

Savox SA1283+ Servo - 30Kg/cm - 0.13 Sec

Brand: Savox

Part No: SAV-SA1283SG+

$108.53 ~~RRP $120.59~~

Shadow Stock: Usually ships next day

Request Price Match Ask a Question Write a Review

The Savox SA1283+ (SAV-SA1283SG+) is a high-torque digital servo engineered for large-scale applications where power, precision and durability are essential. Delivering up to 30 kg·cm torque with a swift 0.13s transit time at 6.0V, it combines a full aluminium case with a unique steel geartrain and dual ball bearings for smooth, repeatable control. Ideal for the stresses of large-scale flying — including jet, 3D and scale models — this updated “Plus” variant is built for reliability and precise movement time after time.

As part of the Savox “+” range, the SA1283+ adds a refined Soft Start Mode and suggested compatibility with Sanwa SSR high-speed protocols, enhancing handling and responsiveness during setup and in demanding manoeuvres. A 25-tooth spline offers broad horn options, while low gear backlash supports accurate centring and tracking.

Key Features

High-torque digital performance: up to 30 kg·cm at 6.0V
Fast transit speed: 0.13s/60° @ 6.0V
Full aluminium case for strength and heat dissipation
Unique steel geartrain for durability
Dual ball bearings (2BB) for smooth output
Low gear backlash for precise, repeatable movement
25-tooth output spline
“Plus” enhancements: Soft Start Mode and suggested Sanwa SSR compatibility

Specifications

Dimensions (mm): 40.3 x 20.2 x 37.2
Weight: 80 g
Speed (@6.0V, sec/60°): 0.13
Torque (@6.0V): 30 kg·cm
Gears: Unique steel
Bearings: 2BB
Case: Full aluminium
Servo horn: 25-tooth spline

What’s Included

Larger, longer servo horns
Aircraft rubber mounting hardware

Free Shipping

On UK Orders over £100

Happy to Help

Helpful, friendly advice

28 Day Returns

Easy returns process

Secure Payments

Secured by Stripe

SAVOX HI TORQUE DIGITAL SERVO ALU CASE 30KG/[email protected] PLUS

Trust Savox for your large scale model with the new updated range of high performance servos from Savox, especially designed to handle the stresses of large scale flying whether it be jet, 3D, or scale.

Improved torque ratings and low gear backlash provide the ultimate in precise accurate movement time after time. All SA servos come supplied with larger, longer servo horns and aircraft rubber mounting hardware to make your build as trouble free as possible.

Specifications

Dimensions(mm): 40.3x20.2x37.2
Weight(g): 80
Speed(@6.0V sec/60): .13s
Torque(@6.0V oz-in): 30kg
Gear: Unique Steel
Bearing: 2BB
Case: Full Aluminium
Servo Horn: 25 Tooth Spline

Performance Radar

Easily compare RC servo models with our intuitive radar chart. This tool visualizes critical performance metrics, allowing you to assess and select the ideal servo for your needs. Whether you're prioritizing speed, durability, or precision, the Performance Radar helps you make informed decisions with confidence.

Savox servos are renowned for their versatility, catering to a wide range of applications, from high-speed racing to heavy-duty off-road tasks. Engineered for reliability and performance, they deliver the perfect balance of power, precision, and durability, making them a trusted choice for RC enthusiasts worldwide.

Dimensions

Savox Plus / "+" Models: feature a new Soft Start Mode and Sanwa SSR compatibility.

Unsure which servo you need for your model?

Visit our Savox Servo Soultion Centre and find the ideal servo for your needs.

Key Info:

Brand: Savox
Part No: SAV-SA1283SG+
Barcode: 4710006994468
Max Voltage: 6v (NiMh)
Gear Material: Metal
