Savox SB2273SG+ Digital Brushless Servo - 25Kg 0.08s
Brand: Savox
Part No: SAV-SB2274SG+
Backorder: Expected 10th June 2026
Request Stock NotificationThe Savox SB2273SG+ Digital Brushless Servo (part number SAV-SB2274SG+) delivers high-voltage performance with rapid response and robust durability. Rated at 25kg and 0.08s at 7.4V, it pairs a brushless motor with unique steel gears for speed, precision and long-term reliability. A 25T spline, dual ball bearings and a part aluminium case round out a solid specification designed for serious RC use.
As part of the Savox "+" range, this servo benefits from Soft Start Mode and compatibility with Sanwa SSR systems. Engineered for efficiency with impressively low power consumption, it offers smooth control and high resolution for demanding applications.
Key Features
- 12-bit (4096) resolution with precise, consistent control

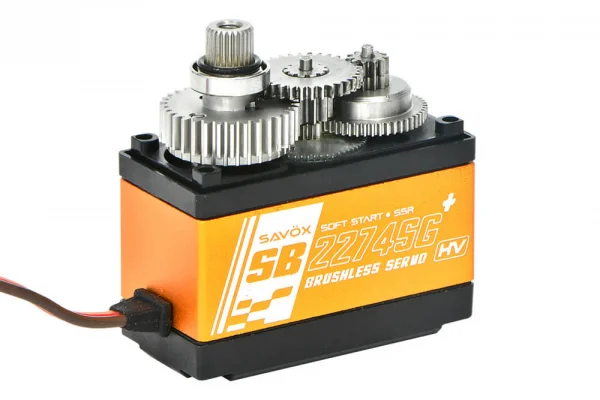

- Unique steel gear train for strength and durability
- Super light-weight construction
- Brushless motor for extremely high speed and excellent efficiency
- Environmentally friendly materials and production
- "+" model enhancements: Soft Start Mode and Sanwa SSR compatibility
Specifications

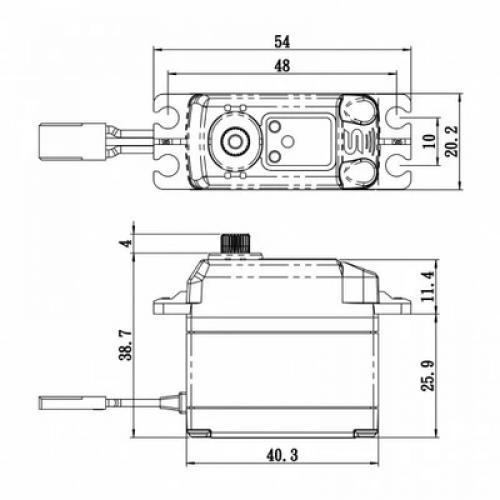

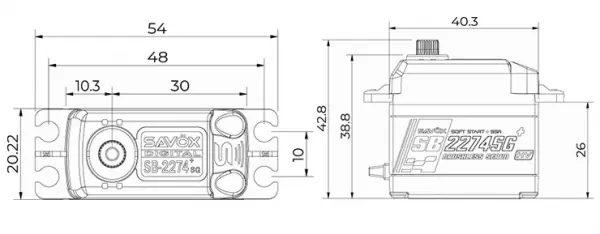

- Dimensions (mm): 40.3 x 20.2 x 38.5
- Weight (g): 69.0
- Speed (@6.0V sec/60): 0.105
- Torque (@6.0V oz-in): 277.7
- Speed (@7.4V sec/60): 0.08
- Torque (@7.4V oz-in): 347.2
- Gear: Unique Steel
- Bearing: 2BB
- Case: Part Aluminium
- Servo Horn Spline: 25 Tooth
Suggested Compatibility
- 1/8 and 1/10 scale trucks and buggies (electric & nitro)
- Giant scale aircraft
- Boats
- Helicopters
Secured by Stripe
This is the Savox SB2274SG PLUS High Speed Brushless Unique Steel Gear Digital Servo.
Features- Combines leading edge technology with super high 12 bit (4096) resolution and unique steel gears.
- Super light-weight.
- Brushless motor provides extremely high speed, incredible efficiency, and amazingly low power consumption.
- Savox servos are totally green - from materials to production, these servos are environmentally friendly.
- Ideal for 1/8th or 1/10th scale trucks and buggies (electric & nitro) and giant scale aircraft. Also suitable for use in boats and helis.
- Dimensions(mm): 40.3x20.2x38.5
- Weight(g): 69.0
- Speed(@6.0V sec/60): .105
- Torque(@6.0V oz-in): 277.7
- Speed(@7.4V sec/60): .08
- Torque(@7.4V oz-in): 347.2
- Gear: Unique Steel
- Bearing: 2BB
- Case: Part Aluminium
- Servo Horn: 25 Tooth Spline
Easily compare RC servo models with our intuitive radar chart. This tool visualizes critical performance metrics, allowing you to assess and select the ideal servo for your needs. Whether you're prioritizing speed, durability, or precision, the Performance Radar helps you make informed decisions with confidence.
Savox servos are renowned for their versatility, catering to a wide range of applications, from high-speed racing to heavy-duty off-road tasks. Engineered for reliability and performance, they deliver the perfect balance of power, precision, and durability, making them a trusted choice for RC enthusiasts worldwide.
Savox Plus / "+" Models: feature a new Soft Start Mode and Sanwa SSR compatibility.
Unsure which servo you need for your model?
Visit our Savox Servo Soultion Centre and find the ideal servo for your needs.
Key Info:
- Brand: Savox
- Part No: SAV-SB2274SG+
- Barcode: 4710006994536
- Max Voltage: 7.4v+ (LiPo)
- Gear Material: Metal
