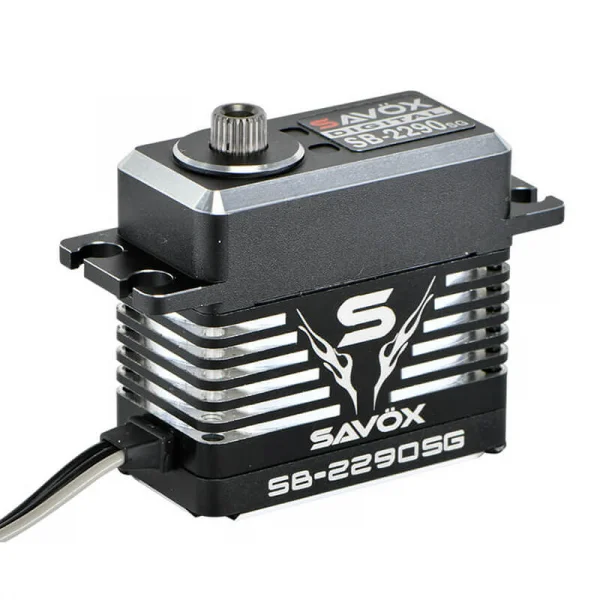

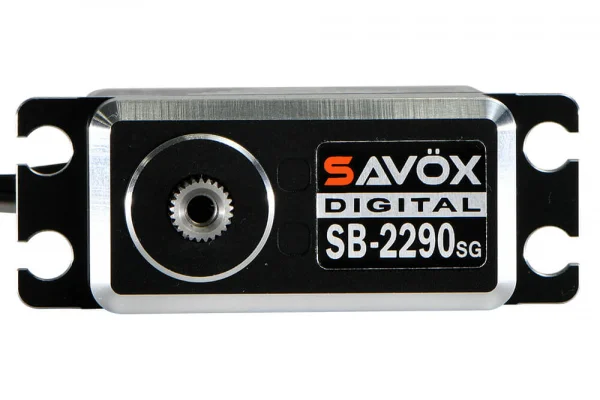

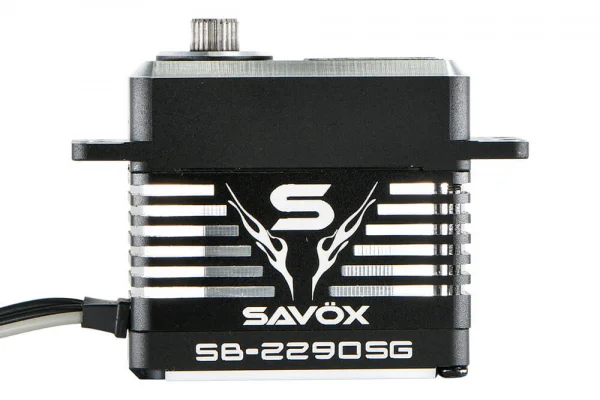

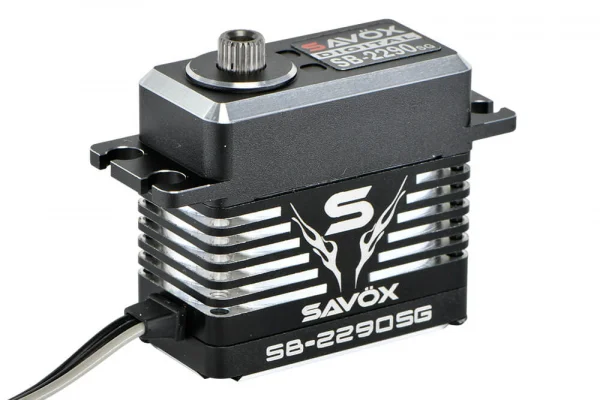

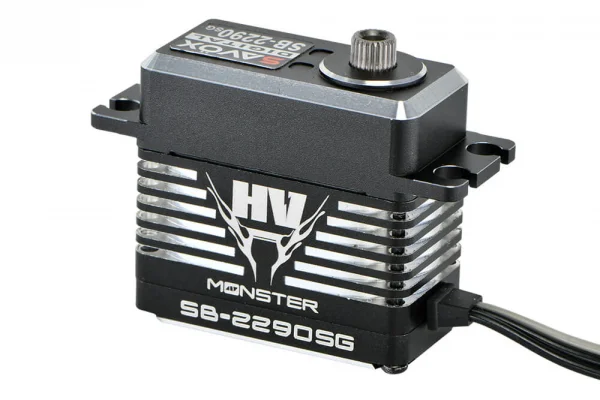

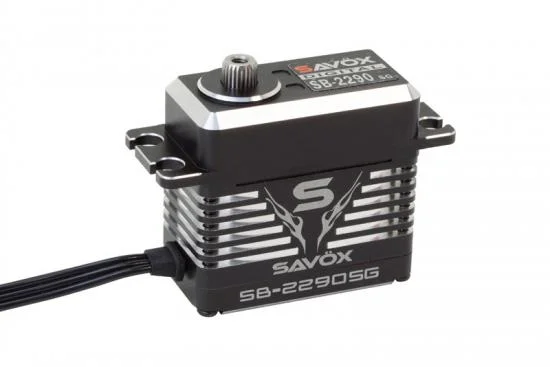

Savox SB2290SG Monster HV Servo - 50kg / 0.13s
Brand: Savox
Part No: SAV-SB2290SG
In Stock: Usually ships same day
The powerful all new "Monster" performance series from Savox. These new servos utilize a unique brushless motor and controller technology to boost power up to 35% over previous generation servos.
Savox SB-2290 Servo Features:
- Full Aluminum Case
- 3 Precision Ball Bearings

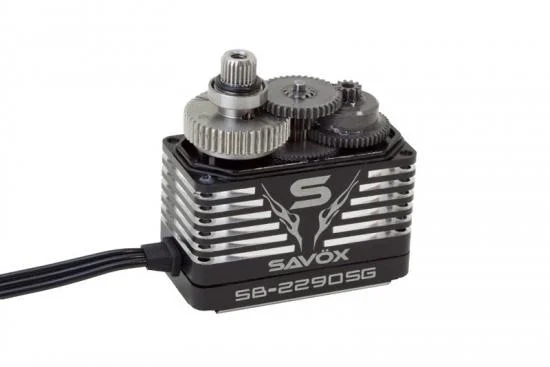

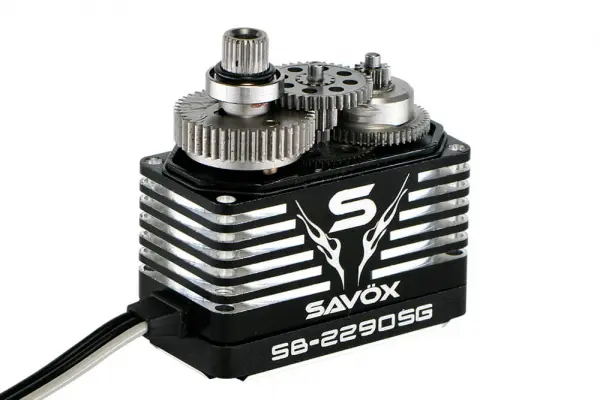

- Unique steel gears
Spec Check:
- Speed (sec/60°): , @6.0v 0.16, @7.4v 0.13
- Torque (kg-cm): , @6.0v 40.00, @7.4v 50.00

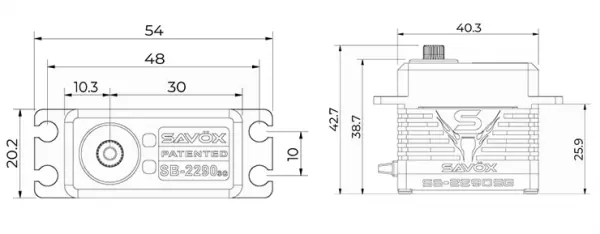

- Dimensions: 40.3 x 20.2 x 38.7mm
- Weight: 81.0g
- Bearing: 2BB
- Case: Aluminium
Unsure which servo you need for your model?
Visit our Savox Servo Soultion Centre and find the ideal servo for your needs.
Secured by Stripe
- Brand: Savox
- Part No: SAV-SB2290SG
- Barcode: 4710006993393
- Max Voltage: 7.4v+ (LiPo)
- Gear Material: Metal
Free Shipping
This item is over £100, so qualifies for free standard UK shipping!
Express Shipping
Upgrade to next day from £3
Worldwide Shipping
Available at checkout
Reviews
Serious servo. Runs an x-maxx no problem! Fit and forget but obviously quite expensive. But the 50kg is real not a made up number like many !
WRITE A REVIEW
Questions & Answers
I am sorry they do not list this information - however you can get the servo extender leads in various lengths if you need them.
You may need to file out the mount slightly due to this servo being slightly bigger.
You would also need a 25t steering horn or servo saver, something like this FTAR012BK
Yes it will if you use this TRX7749
Yes this would fit that car.
This servo would be a good replacement, you may need to file out the servo mount slightly to get this to fit in the car.
Yes it will as its a standrd size servo, you may need to change your horn to a 25t, try Fast311B if you do ?
No this is not a water proof servo.
These are standard size (40x20x40 approx) so won't fit a Kraton 8S as they are too small. However you could look at say a Savox SAV-SW0241 with the box ARA320553 (if you don't have the adapters already)
These would fit... Probably overkill - but they are standard size.
