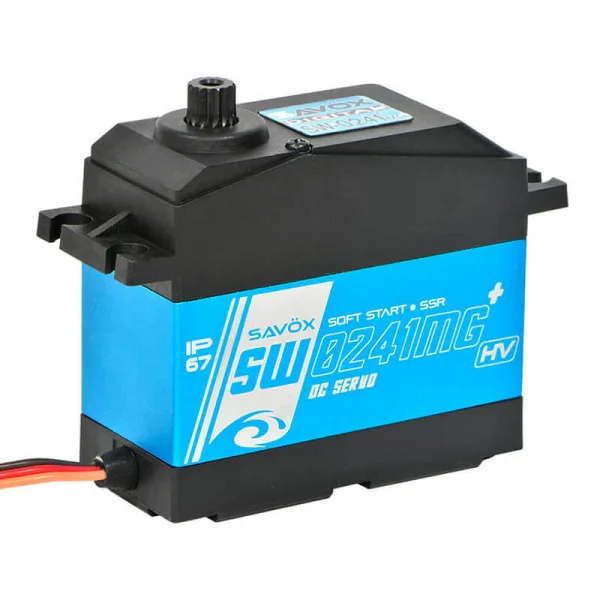

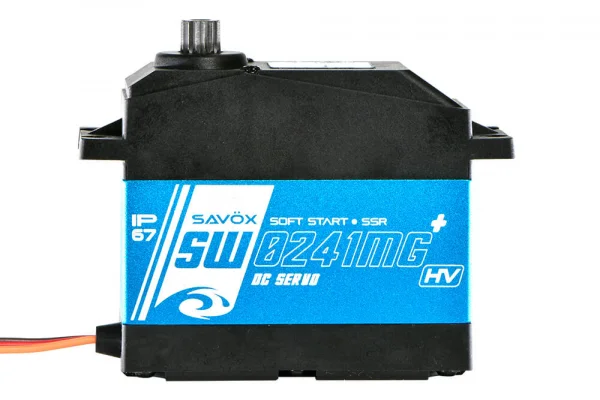

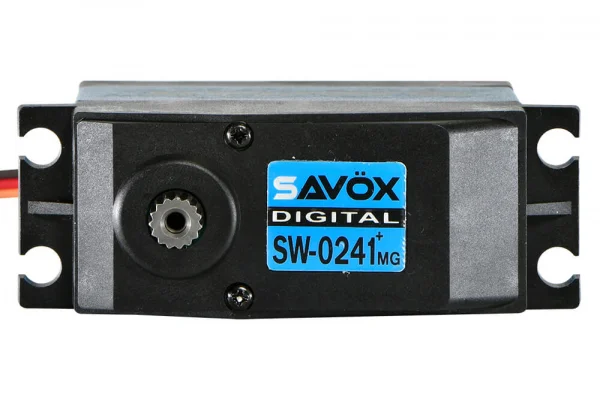

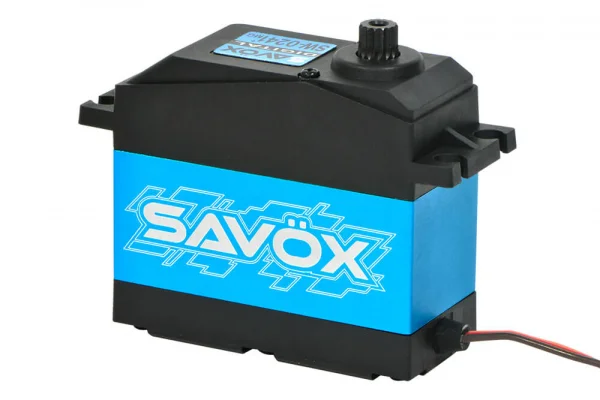

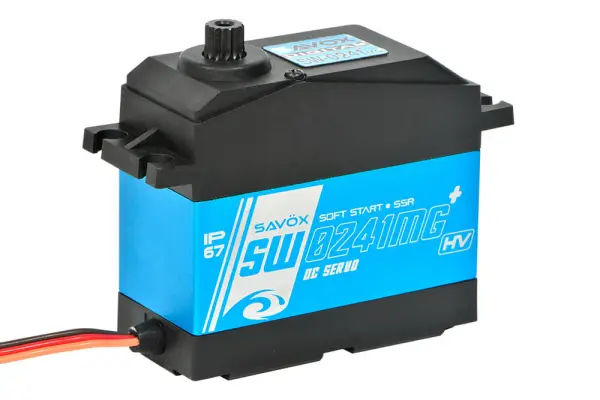

Savox SW0241MG+ Jumbo Waterproof High Voltage Servo - 40KG - 0.17s

Savox SW0241MG+ Jumbo Waterproof High Voltage Servo - 40KG - 0.17s

Brand: Savox

Part No: SAV-SW0241MG+

£74.09 ~~RRP £77.99~~

In Stock: Usually ships same day

Collect Instore

Request Price Match Ask a Question Write a Review

The Savox SW0241MG+ Jumbo Waterproof High Voltage Servo is a robust large-format option for demanding RC applications. At 7.4V it delivers up to 40 kg-cm of torque with a 0.17 sec/60° transit speed, combining a waterproof case, strong metal gears and a part aluminium housing for reliable performance. For easy reference, this model is Savox part number SAV-SW0241MG+.

Built around high-resolution 12-bit (4096) control electronics, the SW0241MG+ offers precise, consistent centring and smooth movement. As a “+” model it also benefits from a new Soft Start Mode and Sanwa SSR compatibility, enhancing setup flexibility with modern radio systems.

Features

High-resolution 12-bit (4096) digital control
Waterproof case design
Part aluminium case for cooler, smoother running

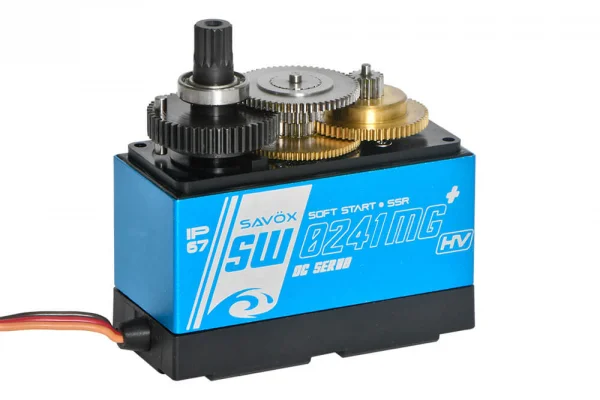

Strong metal gear train for durability
High-voltage capable
New Soft Start Mode and Sanwa SSR compatibility
15 tooth spline output
2 BB bearings

Specifications

Dimensions (mm): 65.8 x 30.0 x 61.6
Weight (g): 200.0
Speed @ 6.0V (sec/60): 0.21
Torque @ 6.0V (kg-cm): 30
Speed @ 7.4V (sec/60): 0.17
Torque @ 7.4V (kg-cm): 40
Gear type: Metal
Bearings: 2 BB
Case: Part aluminium
Servo horn: 15 tooth spline

Suggested Compatibility

1/5 scale trucks and buggies

Free Shipping

On UK Orders over £100

Happy to Help

Helpful, friendly advice

28 Day Returns

Easy returns process

Secure Payments

Secured by Stripe

SAVOX WATERPROOF JUMBO HV DIGI SERVO 40KG/[email protected] - PLUS

The Savox SW0241MG+ is our waterproof high torque 5th scale metal gear digital servo. This servo is high voltage capable and features of torque @ 7.4V

Features

Combines leading edge technology with super high 12 bit (4096) resolution
Waterproof case design.
The aluminium case design not only looks good but also allows for cooler and smoother operating temps.
Strong metal gear train for added durability
This servo is the perfect addition to your 5th scale truck or buggy.

Specifications

Dimensions(mm): 65.8 x 30.0 x 61.6
Weight(g): 200.0
Speed @6.0V (sec/60): .21
Torque @6.0V (kg-cm): 30
Speed @7.4V (sec/60): .17
Torque @7.4V (kg-cm): 40
Gear Type: Metal
Bearings: 2 BB
Case: Part Aluminium
Servo Horn: 15 Tooth Spline

Performance Radar

Easily compare RC servo models with our intuitive radar chart. This tool visualizes critical performance metrics, allowing you to assess and select the ideal servo for your needs. Whether you're prioritizing speed, durability, or precision, the Performance Radar helps you make informed decisions with confidence.

Savox servos are renowned for their versatility, catering to a wide range of applications, from high-speed racing to heavy-duty off-road tasks. Engineered for reliability and performance, they deliver the perfect balance of power, precision, and durability, making them a trusted choice for RC enthusiasts worldwide.

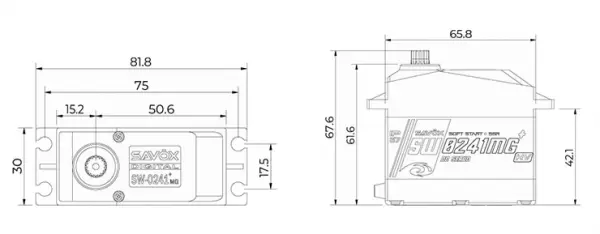

Dimensions

New Savox and Plus / "+" Models: feature a new Soft Start Mode and Sanwa SSR compatibility.

Unsure which servo you need for your model?

Visit our Savox Servo Soultion Centre and find the ideal servo for your needs.

Key Info:

Brand: Savox
Part No: SAV-SW0241MG+
Barcode: 4710006994635
Max Voltage: 7.4v
Gear Material: Metal

Standard Shipping

£3.95 to most of the UK

Express Shipping

£6.95 to most of the UK

Worldwide Shipping

Available at checkout

Reviews

No specific product reviews yet, why not write one?

WRITE A REVIEW

Name

Email (optional, so we can let you know if we reply)

Rating

Your Review

Add photos (optional, up to 5) Drag & drop photos here, or click to browse

All reviews are subject to moderation

Questions & Answers

Real questions from real customers. Why not ask your own?

Will this work on a xmaxx

Simon Mendey / 11th June 2025

No that will not fit.

Steve @ Wheelspin Models

Hi, for the HPI Baja 5B, the Servo horn that comes with Kit is a 25T Spline and this servo is a 15T Spline, do I have to buy a 15T Spline horn to make the whole thing work? If so what would be the correct Part Number for the horn. Thanks.

Marco Vincenzetti / 28th September 2024

The best one to go for is this one: FAST321B

Rich @ Wheelspin Models

Will this work on my sc10 pro4

Terry / 8th October 2023

No, this one is to big for that car, you could look at this one SAV-SW1210SG+

Si @ Wheelspin Models

Hi will this servo fit in my losi 5t v1 or can you please recommend good steering servo what will fit and work well regards Steve

Steven Oram / 26th April 2022

Yes this servo will work well in the 5ive T .

Steve W @ Wheelspin Models

Hi i want to upgrade my kraton 8s servo would this do the job

Adam Sadiq / 5th February 2020

This sizes are a little different on this one, if you check with part number : SPMS905 the savox is a little taller.

Anthony @ Wheelspin Models

Looking for a better steering servo for my dbxl,,,can you advise please

Kenny / 12th October 2019

These would make a nice upgrade!

Alternatively the SPMSS9010 and SPMSS9020 are very nice, but more money.

Ben @ Wheelspin Models

Hi will this fit the maverick blackout xb for steering?

Ken Lodge / 20th June 2018

Yes, we think so - the stock servo measures 65 x 50 x 30mm, this one is around 10mm taller but you should still have enough clearance to fit.

Ben @ Wheelspin Models
