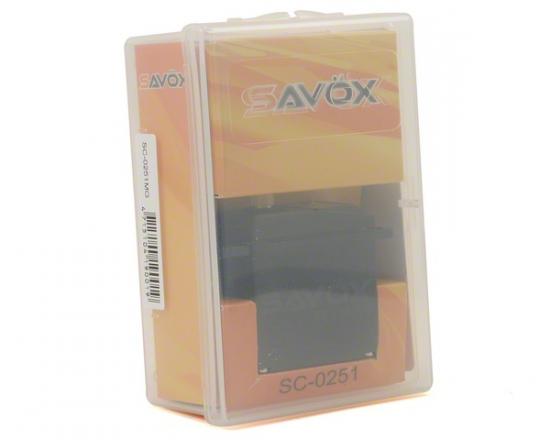

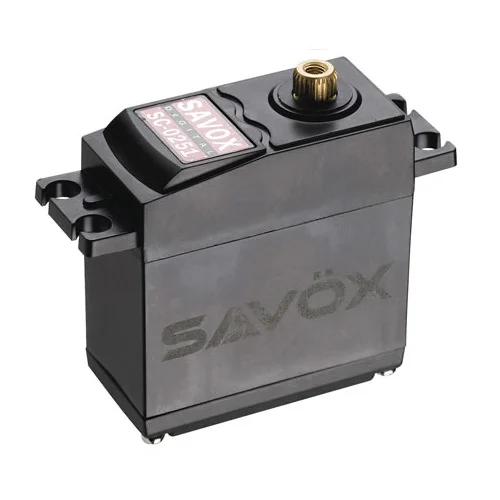

Savox SC0251 Digital Metal Geared Servo - 16Kg / 0.18 Sec
Brand: Savox
Part No: SAV-SC0251MG
THIS ITEM IS DISCONTINUED AND NO LONGER AVAILABLE.
PLEASE SEE ITEM #SAV-SC0251MG+ AS A REPLACEMENT
The Savox SC0251 Digital Metal Geared Servo (part number SAV-SC0251MG) delivers dependable high-torque performance for demanding RC applications. Offering 16.0 kg-cm of torque and a 0.18 sec/60° transit time at 6.0V, it combines a robust metal gear train with dual bearings in a larger standard footprint and a 25T Futaba-spline output.
Key Features
- Precision metal gears create a strong, solid drivetrain
- Strict production and quality control of plastic components
- Environmentally friendly materials and production
Specifications
- Speed @ 6.0V: 0.18 sec/60°
- Torque @ 6.0V: 222 oz-in / 16.0 kg-cm
- Weight: 61 g
- Bearing: Dual
- Type: Larger Standard
- Gear: Metal
- Case: Plastic
- Output Shaft: 25T spline (Futaba)
- Case Size (L x W x H): 40.7 x 20 x 42.4 mm
Suggested Compatibility
- RC rock crawlers
- 1/8 scale vehicles
- 50 class aeroplanes
Application Notes
- Certain receiver and ESC combinations may cause brown-out with Savox servos. An external BEC or BEC-stabilising receiver capacitor may be required for reliable operation in low voltage electric setups.
- This servo is taller than standard size units. Please verify the stated dimensions fit your installation.
Secured by Stripe
This is the Savox SC-0251 Larger Standard Digital High Torque Metal Gear Servo. This high torque servo is great for crawlers, 1/8 scale vehicles and 50 class airplanes.
Features:
- Precision metal gears forms a strong and solid framework
- Strict production and quality control of plastic components
- Totally Green – from materials to production, these servos are environmentally friendly.
*NOTE: Certain combinations of receiver and ESC have been found to cause Brown Out issues when combined with Savox servos. An external BEC, or BEC stabilizing receiver capacitor may be needed for efficient, glitch free operation in low voltage electric applications.
Specifications:
- Speed @ 6.0V： 0.18 sec/60°
- Torque @ 6.0V: 222 oz-in / 16.0 kg-cm
- Weight: 61g
- Bearing: Dual
- Type: Larger Standard
- Gear: Metal
- Case: Plastic
- Output Shaft: 25T Spline (Futaba)
- Case Size (LxWxH): 40.7x20x42.4mm
NOTE:This servo is taller than standard size servos. Please verify that the dimensions of this servo will suit your application prior to purchase.
Key Info:
- Brand: Savox
- Part No: SAV-SC0251MG
- Barcode: 4710006990064
- Max Voltage: 6v (NiMh)
- Gear Material: Metal
