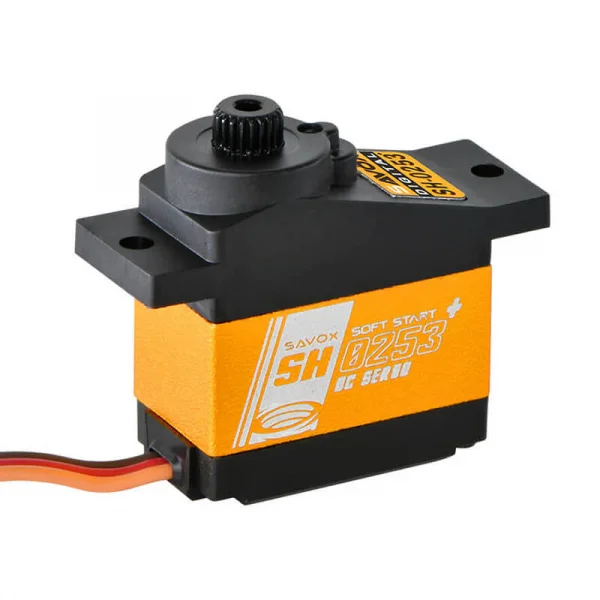

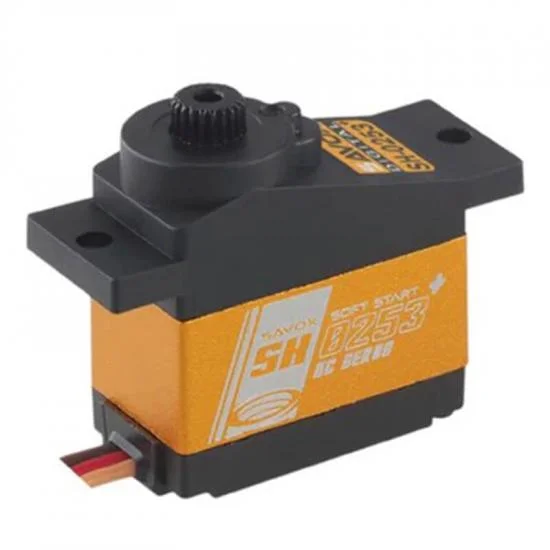

Savox SH0253+ Micro Size Digital Servo - 2.2kg 0.09s
Brand: Savox
Part No: SAV-SH0253+
In Stock: Usually ships same day
The Savox SH0253+ Micro Size Digital Servo is built for rapid response and precise control in tight installations. Delivering 0.09s transit speed at 6.0V with 2.2kg performance (as named) and a robust part aluminium case, it suits heli and park-flyer roles where speed and consistency matter. The SH0253+ (part number SAV-SH0253+) adds Soft Start Mode and Sanwa SSR compatibility to the proven SH02 series platform.
Features
- Over-spec refined design outperforms ordinary micro-size servos
- Part aluminium case helps maintain cooler, smoother operating temperatures
- Metal gears provide a solid framework for precise control
- Strict quality control of plastic components
- Environmentally friendly materials and production
- Ideal for CCPM and rudder on 450 class helicopters and park flyer aeroplanes
- Soft Start Mode on "+" models
- Sanwa SSR compatibility on "+" models
Specifications

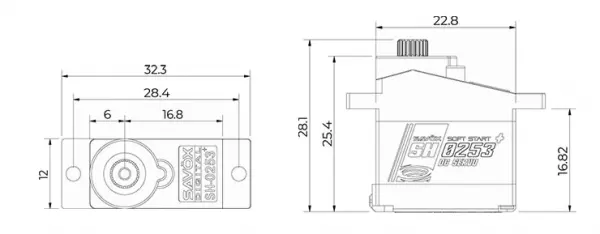

- Dimensions: 22.8 x 12.0 x 25.4 mm
- Weight: 13.6 g
- Speed (@4.8V sec/60): 0.13
- Torque (@4.8V oz-in): 25.0
- Speed (@6.0V sec/60): 0.09
- Torque (@6.0V oz-in): 30.6
- Gear: Metal & Plastic
- Bearing: 2BB
- Case: Part Aluminium
- Servo Horn: 21 Tooth Spline
Suggested Compatibility
- CCPM and rudder use on 450 class helicopters
- Park flyer aeroplanes
Secured by Stripe
The Savox SH0253+ is a Super Speed Micro Digital Servo.
Features- Over-spec refined design out performs ordinary micro size servos.
- The metal case design looks good and allows for cooler and smoother operating temps.
- Metal gears forms a solid framework for precise control and operation.
- Strict production and quality control of plastic components ensure quality construction.
- Our servos are totally green – from materials to production, these servos are environmentally friendly.
- Ideal for CCPM and Rudder on 450 class heli's and Park Flyer Airplanes.
- Dimensions: 22.8x12.0x25.4mm
- Weight: 13.6g
- Speed (@4.8V sec/60): .13
- Torque (@4.8V oz-in): 25.0
- Speed (@6.0V sec/60): .09
- Torque (@6.0V oz-in): 30.6
- Gear: Metal & Plastic
- Bearing: 2BB
- Case: Part Aluminium
- Servo Horn: 21 Tooth Spline
Easily compare RC servo models with our intuitive radar chart. This tool visualizes critical performance metrics, allowing you to assess and select the ideal servo for your needs. Whether you're prioritizing speed, durability, or precision, the Performance Radar helps you make informed decisions with confidence.
Savox servos are renowned for their versatility, catering to a wide range of applications, from high-speed racing to heavy-duty off-road tasks. Engineered for reliability and performance, they deliver the perfect balance of power, precision, and durability, making them a trusted choice for RC enthusiasts worldwide.
New Savox and Plus / "+" Models: feature a new Soft Start Mode and Sanwa SSR compatibility.
Unsure which servo you need for your model?
Visit our Savox Servo Soultion Centre and find the ideal servo for your needs.
Key Info:
- Brand: Savox
- Part No: SAV-SH0253+
- Barcode: 4710006994581
