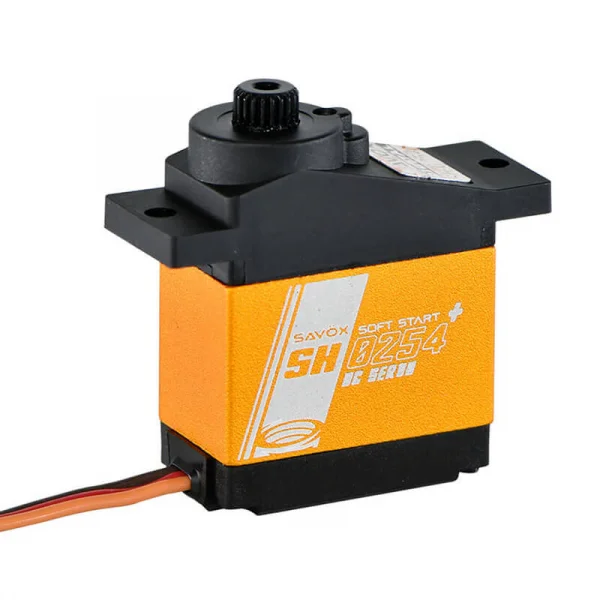

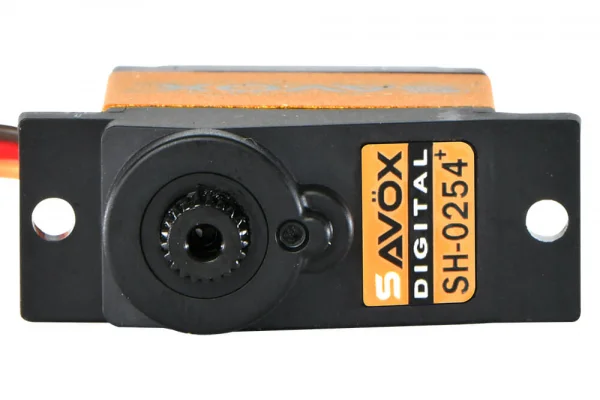

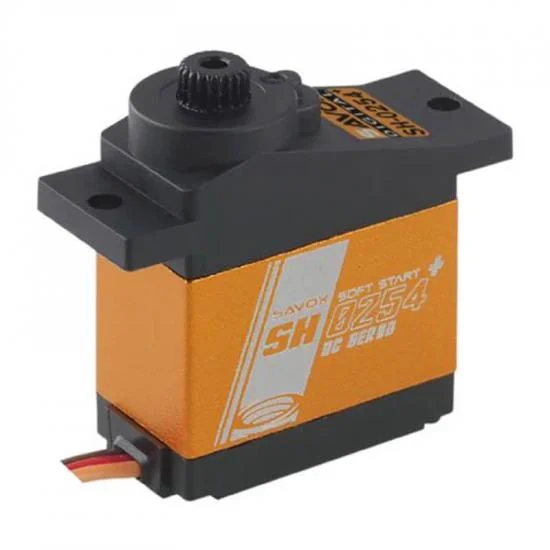

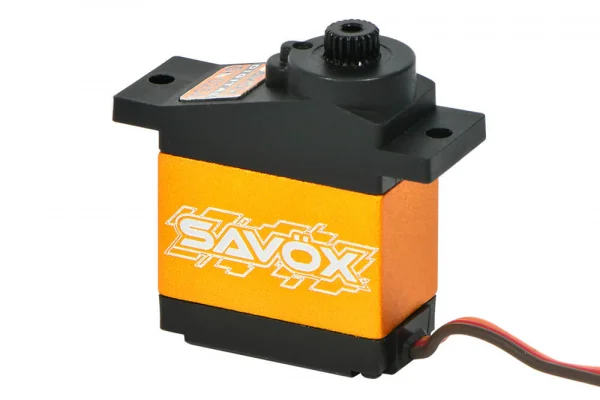

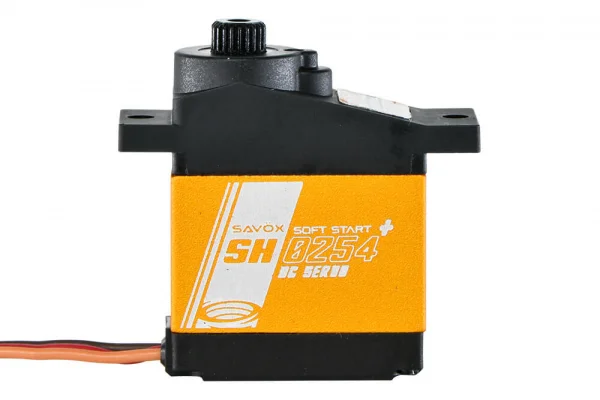

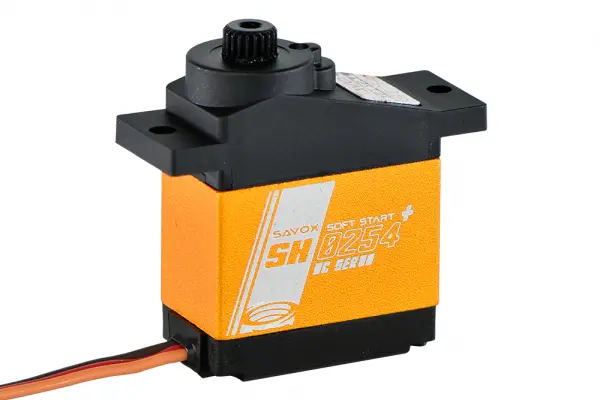

Savox SH0254+ Micro Size Digital Servo - 3.9kg 0.13s
Brand: Savox
Part No: SAV-SH0254+
In Stock: Usually ships same day
The Savox SH0254+ micro digital servo (SAV-SH0254+) delivers strong performance in a compact footprint, offering up to 3.9kg/cm torque with a 0.13s transit time at 6.0V. The "+" update adds Soft Start Mode and Sanwa SSR compatibility. A DC motor, dual ball bearings and a part aluminium case support smooth, reliable operation in lightweight RC applications.
Key Features
- Micro digital servo with DC motor
- Soft Start Mode and Sanwa SSR compatibility
- Dual ball bearings (2BB)

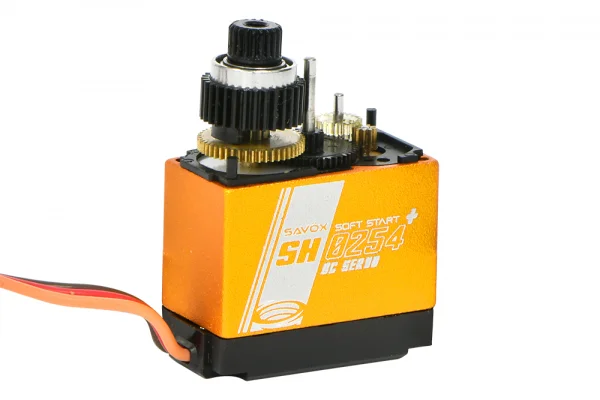

- Metal & plastic geartrain
- Part aluminium case
- 21-tooth spline servo horn interface
Specifications
- Dimensions: 22.8 x 12 x 29.4mm
- Weight: 16g
- Speed (@4.8V, sec/60): 0.16
- Torque (@4.8V, kg/cm): 3.1
- Speed (@6.0V, sec/60): 0.13
- Torque (@6.0V, kg/cm): 3.9
- Gear: Metal & Plastic
- Bearing: 2BB
- Case: Part aluminium
- Servo Horn: 21 tooth spline
What’s Included
- Savox SH0254+ micro digital servo
- Servo arms
- Mounting screws
Suggested Compatibility
- RC helicopters and park flyers
- Swash plate use on small helicopters
Secured by Stripe
The Savox SH0254+ is a micro digital servo with DC motor, 2 ball bearings and plastic gears. It can be used in helicopters and airplanes, for example as swash plate servo for small helicopters. The delivery includes the servo as well as the servo arms and the mounting screws.
Specifications- Dimensions: 22.8 x 12 x 29.4mm
- Weight: 16g
- Speed (@4.8V sec/60): 0.16
- Torque (@4.8V kg/cm): 3.1
- Speed (@6.0V sec/60): 0.13
- Torque (@6.0V kg/cm): 3.9
- Gear: Metal & Plastic
- Bearing: 2BB
- Case: Part Aluminium
- Servo Horn: 21 Tooth Spline
Easily compare RC servo models with our intuitive radar chart. This tool visualizes critical performance metrics, allowing you to assess and select the ideal servo for your needs. Whether you're prioritizing speed, durability, or precision, the Performance Radar helps you make informed decisions with confidence.
Savox servos are renowned for their versatility, catering to a wide range of applications, from high-speed racing to heavy-duty off-road tasks. Engineered for reliability and performance, they deliver the perfect balance of power, precision, and durability, making them a trusted choice for RC enthusiasts worldwide.
New Savox and Plus / "+" Models: feature a new Soft Start Mode and Sanwa SSR compatibility.
Unsure which servo you need for your model?
Visit our Savox Servo Soultion Centre and find the ideal servo for your needs.
