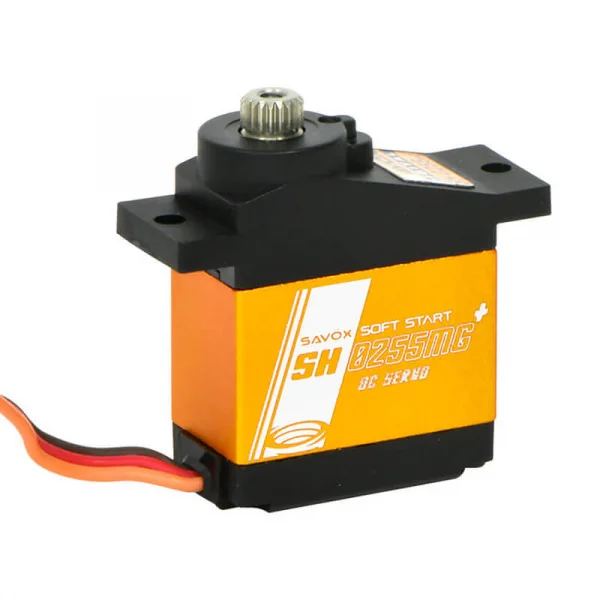

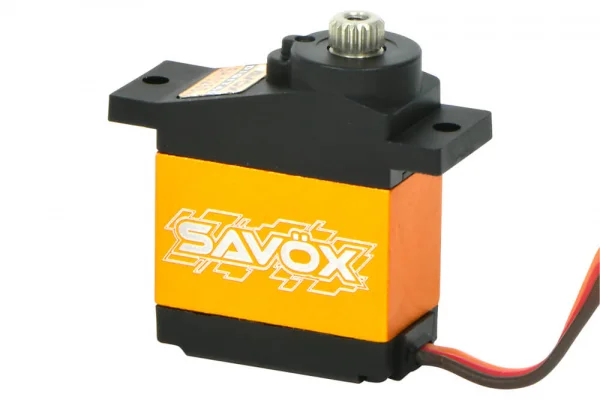

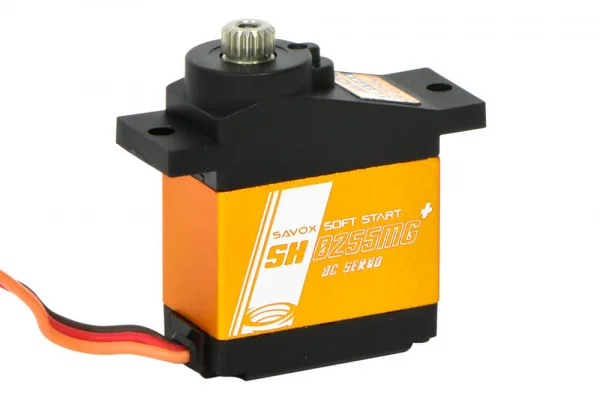

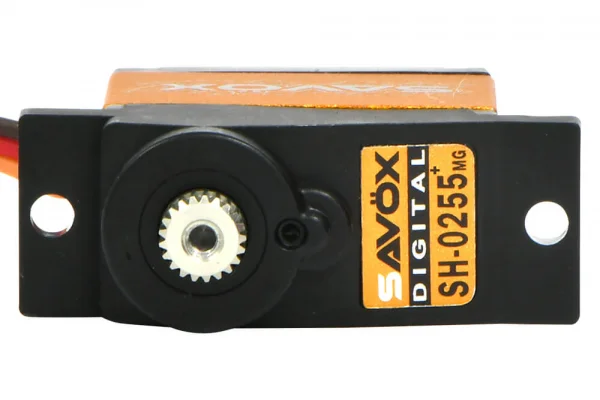

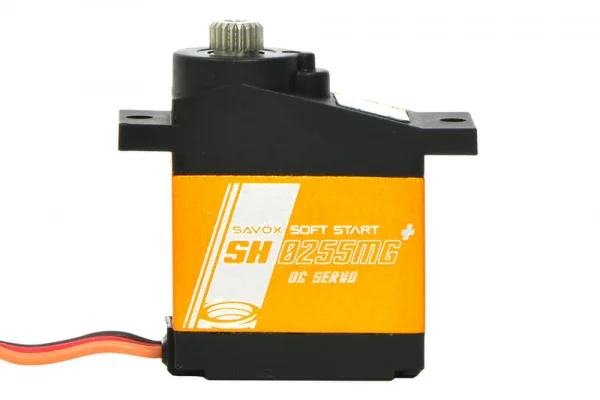

Savox SH0255MG+ Micro Size Digital Servo - 3.9kg 0.13s
Brand: Savox
Part No: SAV-SH0255MG+
In Stock: Usually ships same day
The Savox SH0255MG+ is a micro size digital servo that delivers 3.9kg-cm torque at 6V and a fast 0.13s transit time in a compact 22.8 x 12 x 29.4 mm package. A robust metal geartrain and part aluminium case support smooth, consistent performance in demanding applications.
The latest "+" update adds Soft Start Mode and Sanwa SSR compatibility for refined control feel and enhanced integration with supported systems.
Features
- Refined, over-spec design that pushes beyond typical micro servo output limits.
- Metallic body helps dissipation, keeping operation cool and smooth.
- High-quality plastic components produced to stringent QC standards.

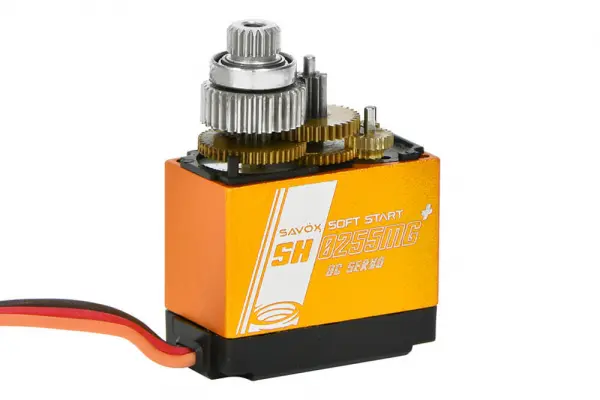

- Professionally engineered metal gears create a solid, durable framework.
- Gear design intended to make “crumbled gear” a thing of the past.
Key Specifications
- Dimensions: 22.8 x 12 x 29.4 mm
- Weight: 15.8 g (weight excludes wires or horns)
- Speed (sec/60°): 0.13
- Torque (kg-cm/oz-in): 3.9 / 54.1
- Gear: Metal
- Case: Part aluminium
- Servo Horn Spline: 21-tooth (21T)
Suggested compatibility: CCPM and rudder on 450-size helicopters, and park-fly aeroplanes.
Secured by Stripe
Micro size digital servo with refined design that brings out extraordinary performance.
Ideal for CCPM and Rudder on 450 level heli and Park Fly Airplane.
- Over-spec refined design overturns output limitation of ordinary micro size servo.
- The metallic body design not only exudes an exquisite style but helps the operating to stay cool and smooth from the beginning to the end.
- Production and quality control of plastic component in our servos follow the standard of branded digital camera.
- Professional and exquisite design and made gears form as the solid framework of our servos.
- Design will make “Crumbled Gear” history.
- Dimensions: 22.8 x 12 x 29.4mm
- Weight: 15.8g**
- Speed (sec/60°): 0.13
- Torque (kg-cm/oz-in): 3.9/54.1
- Gear: Metal
- Case: Part Aluminium
- Servo Horn: 21 Tooth Spline
**Weight listed does not include wires or horns.
Performance RadarEasily compare RC servo models with our intuitive radar chart. This tool visualizes critical performance metrics, allowing you to assess and select the ideal servo for your needs. Whether you're prioritizing speed, durability, or precision, the Performance Radar helps you make informed decisions with confidence.
Savox servos are renowned for their versatility, catering to a wide range of applications, from high-speed racing to heavy-duty off-road tasks. Engineered for reliability and performance, they deliver the perfect balance of power, precision, and durability, making them a trusted choice for RC enthusiasts worldwide.
New Savox and Plus / "+" Models: feature a new Soft Start Mode and Sanwa SSR compatibility.
Unsure which servo you need for your model?
Visit our Savox Servo Soultion Centre and find the ideal servo for your needs.
Key Info:
- Brand: Savox
- Part No: SAV-SH0255MG+
- Barcode: 4710006994192
