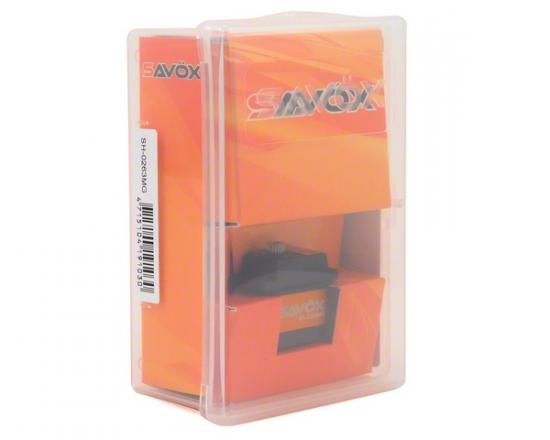

Savox SH0263MG Micro Servo - 2.2Kg/cm - 0.10 Sec
Brand: Savox
Part No: SAV-SH0263MG
THIS ITEM IS DISCONTINUED AND NO LONGER AVAILABLE.
PLEASE SEE ITEM #SAV-SH0263MG+ AS A REPLACEMENT
The Savox SH0263MG Micro Digital Servo delivers fast response and reliable torque in a compact form. With metal gears, dual ball bearings and an aluminium case, it offers precise control and smooth running for tight installations. Part number SAV-SH0263MG.
Features
- Dual ball bearings in a micro servo (2BB)
- Over-spec refined design outperforms ordinary micro servos
- Metal case design for cooler, smoother operation
- Metal gears for precise control and durability
- Strict production and quality control of plastic components
- Environmentally friendly materials and production
Specifications
- Dimensions: 22.8 x 12.0 x 25.4 mm
- Weight: 15.0 g
- Speed @ 4.8V: 0.13 sec/60°
- Speed @ 6.0V: 0.10 sec/60°
- Torque @ 4.8V: 25.0 oz-in
- Torque @ 6.0V: 30.6 oz-in
- Gear: Metal
- Bearing: 2BB
- Case: Aluminium
- Output Shaft: 25-tooth spline
Suggested Compatibility
- Cyclic servos for 250/450 class helicopters
- 1/16 scale surface vehicles
- 3D aircraft
- Park flyer aeroplanes
Important Note
Certain combinations of receiver and ESC may cause brown out issues with Savox servos in low-voltage electric setups. An external BEC or a BEC-stabilising receiver capacitor may be required for reliable operation.
Secured by Stripe
This is the Savox SH-0263MG Super Torque Metal Gear Micro Digital Servo.
Features:
- Dual ball bearings in a micro servo? Yes, that is correct 2BB in a micro!!!
- Over-spec refined design out performs ordinary micro size servo.
- The metal case design looks awesome and allows for cooler and smoother operating temps.
- Metal gears form a solid framework for precise control and operation.
- Strict production and quality control of plastic components.
- Our servos are totally green – from materials to production, these servos are environmentally friendly.
- Ideal for cyclic servos for 250/450 class heli's, 1/16 scale surface vehicles, 3D aircraft, and park flyer airplanes.
*NOTE: Certain combinations of receiver and ESC have been found to cause "Brown Out" issues when combined with Savox servos. An external BEC, or BEC stabilizing receiver capacitor may be needed for efficient, glitch free operation in low voltage electric applications.
Specifications:
- Dimensions: 22.8X12.0X25.4mm
- Weight: 15.0g
- Speed:
- @ 4.8V: .13 sec/60
- @ 6.0V: .10 sec/60
- Torque:
- @ 4.8V: 25.0 oz-in
- @ 6.0V: 30.6 oz-in
- Gear: Metal
- Bearing: 2BB
- Case: Aluminum
- Output Shaft: 25 Tooth Spline
Key Info:
- Brand: Savox
- Part No: SAV-SH0263MG
- Barcode: 4710006990262
Standard Shipping
£3.95 to most of the UK
Express Shipping
£6.95 to most of the UK
Worldwide Shipping
Available at checkout
Reviews
No specific product reviews yet, why not write one?WRITE A REVIEW
Questions & Answers
Apologies, we'd bow to Savox's info on this - it looks to be 25T spline, same as Futaba, Traxxas, Etc
