Savox SH0263MG+ Micro Servo 2.2kg-cm, 0.10s
Brand: Savox
Part No: SAV-SH0263MG+
Shadow Stock: Usually ships next day
Finance options available at checkout.
Description
The Savox SH0263MG+ micro digital servo (part number SAV-SH0263MG+) is a quick, tough metal-gear unit with an aluminium middle case for improved heat dissipation. Offering 0.10 sec/60° at 6.0V with 2.2 kg-cm torque and dual ball bearings for smooth precision, it’s a compact choice for tight installations. Suggested compatibility: small planes and 450 size helicopters.
Features

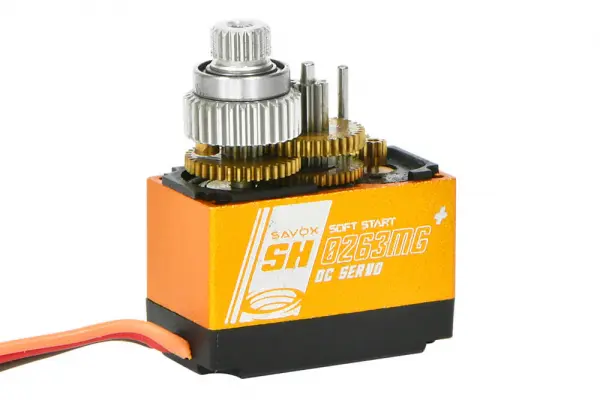

- Metal gear train ensures durability and longevity.
- Aluminium middle case allows for cooler operating temperatures.
- Dual ball bearing support.
- Ideal for small planes, and 450 size helicopters.
- Plus model enhancement: Soft Start Mode and Sanwa SSR compatibility.
Specifications
- Dimensions (mm): 22.8 x 12.0 x 25.4
- Weight (g): 15
- Speed (@4.8V sec/60): 0.13
- Torque (@4.8V oz-in): 25.0
- Speed (@6.0V sec/60): 0.10
- Torque (@6.0V oz-in): 30.6
- Gear: Metal
- Bearing: 2BB
- Case: Part Aluminium
- Servo Horn: 21 Tooth Spline
Secured by Stripe
Savox SH0263MG Plus Micro Servo - 2.2Kg/cm - 0.10 Sec Manuals & Guides
How-To Guides & Articles
Specifications
The Savox SH0263MG+ metal-gear, digital micro servo is quick and built tough!
Features- Metal gear train ensures durability and longevity.
- Aluminium middle case allows for cooler operating temperatures.
- Dual ball bearing support.
- Ideal for small planes, and 450 size helicopters.
- Dimensions(mm): 22.8 x 12.0 x 25.4
- Weight(g): 15
- Speed(@4.8V sec/60): 0.13
- Torque(@4.8V oz-in): 25.0
- Speed(@6.0V sec/60): 0.10
- Torque(@6.0V oz-in): 30.6
- Gear: Metal
- Bearing: 2BB
- Case: Part Aluminium
- Servo Horn: 21 Tooth Spline
Easily compare RC servo models with our intuitive radar chart. This tool visualizes critical performance metrics, allowing you to assess and select the ideal servo for your needs. Whether you're prioritizing speed, durability, or precision, the Performance Radar helps you make informed decisions with confidence.
Savox servos are renowned for their versatility, catering to a wide range of applications, from high-speed racing to heavy-duty off-road tasks. Engineered for reliability and performance, they deliver the perfect balance of power, precision, and durability, making them a trusted choice for RC enthusiasts worldwide.
New Savox and Plus / "+" Models: feature a new Soft Start Mode and Sanwa SSR compatibility.
Unsure which servo you need for your model?
Visit our Savox Servo Soultion Centre and find the ideal servo for your needs.
Key Info:
- Brand: Savox
- Part No: SAV-SH0263MG+
- Barcode: 4710006994307
