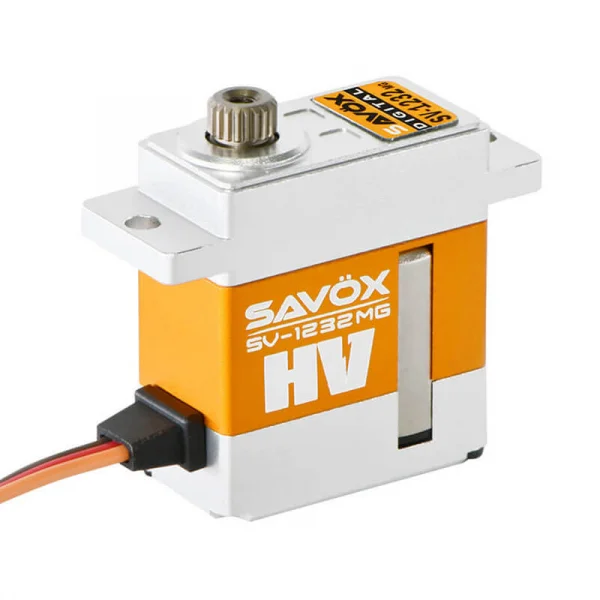

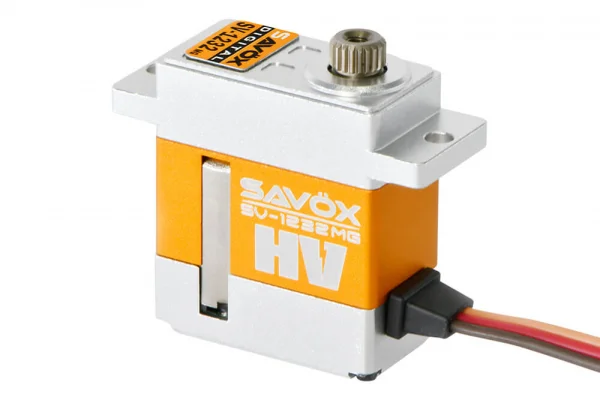

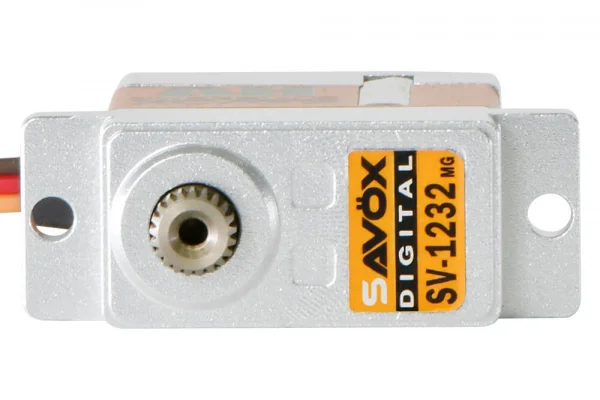

Savox SV1232MG High Voltage Micro 400 Size Alloy Case Servo -5KG - 0.05

Savox SV1232MG High Voltage Micro 400 Size Alloy Case Servo -5KG - 0.05

Brand: Savox

Part No: SAV-SV1232MG

£58.87 ~~RRP £63.99~~

Out Of Stock

Request Stock Notification

Pre-Order

Request Price Match Ask a Question Write a Review

The Savox SV1232MG is a high-voltage micro 400-size servo engineered for rapid response in compact installations. A robust metal gear train and full aluminium case aid durability and thermal performance, while its swift transit speed makes it well suited to applications where precision and agility matter. At 7.4V it delivers around 5.0 kg-cm of torque with a 0.05 sec/60 speed.

Features

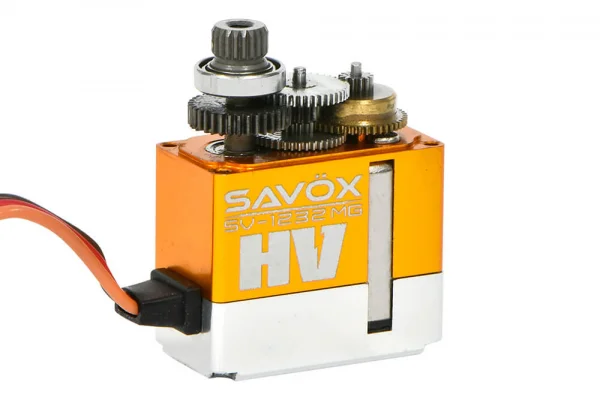

Metal gear train for durability and longevity
Full aluminium case for cooler operating temperatures
High-voltage capable design
Extremely fast response

Specifications

Dimensions (mm): 32.4 x 27.25 x 12
Weight: 23.0 g (excludes wires or horns)
Speed (@6.0V sec/60): 0.06
Speed (@7.4V sec/60): 0.05
Speed (@8.4V sec/60): 0.04
Torque (@6.0V kg-cm): 4.0
Torque (@7.4V kg-cm): 5.0
Torque (@8.4V kg-cm): 6.5
Gears: Metal
Case: Full aluminium
Spline: 21-tooth (servo horn)
Part number: SAV-SV1232MG

Suggested Compatibility

250–450 size RC helicopters where speed is essential
400-size micro applications requiring a fast HV servo

Free Shipping

On UK Orders over £100

Happy to Help

Helpful, friendly advice

28 Day Returns

Easy returns process

Secure Payments

Secured by Stripe

SAVOX HV MICRO 400 SIZE ALLOY CASE SERVO 5KG/[email protected]

The Savox SV1232MG servo is an extremely fast micro-sized servo ideal for 250-450 size helicopters where speed is essential.

Features

Metal gear train ensures durability and longevity.
All metal case helps with cooler operating temperatures.
Capable of high voltage use.
Extremely fast for quick response.

Specifications

Dimensions(mm): 32.4 x 27.25 x 12
Weight(g): 23.0**
Speed(@6.0V sec/60): .06
Speed(@7.4V sec/60): .05
Speed(@8.4V sec/60): .04
Torque(@6.0V kg-cm): 4.0
Torque(@7.4V kg-cm): 5.0
Torque(@8.4V kg-cm): 6.5
Gear: Metal
Case: Full Aluminium
Servo Horn: 21 Tooth Spline

**Weight listed does not include wires or horns.

Performance Radar

Easily compare RC servo models with our intuitive radar chart. This tool visualizes critical performance metrics, allowing you to assess and select the ideal servo for your needs. Whether you're prioritizing speed, durability, or precision, the Performance Radar helps you make informed decisions with confidence.

Savox servos are renowned for their versatility, catering to a wide range of applications, from high-speed racing to heavy-duty off-road tasks. Engineered for reliability and performance, they deliver the perfect balance of power, precision, and durability, making them a trusted choice for RC enthusiasts worldwide.

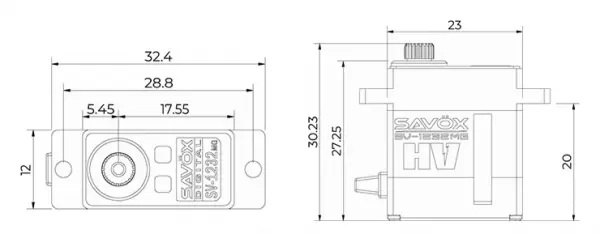

Dimensions

Unsure which servo you need for your model?

Visit our Savox Servo Soultion Centre and find the ideal servo for your needs.

Key Info:

Brand: Savox
Part No: SAV-SV1232MG
Barcode: 4710006992662

Standard Shipping

£3.95 to most of the UK

Express Shipping

£6.95 to most of the UK

Worldwide Shipping

Available at checkout

Reviews

No specific product reviews yet, why not write one?

WRITE A REVIEW

Name

Rating

Your Review

All reviews are subject to moderation

Questions & Answers

Real questions from real customers. Why not ask your own?

Hi, could you please tell me which is the correct replacement gear set for the SV1232 servo. Thanks, Mike

Mike Dovey / 24th February 2019

It looks like SGSC1232SG

Ben @ Wheelspin Models
