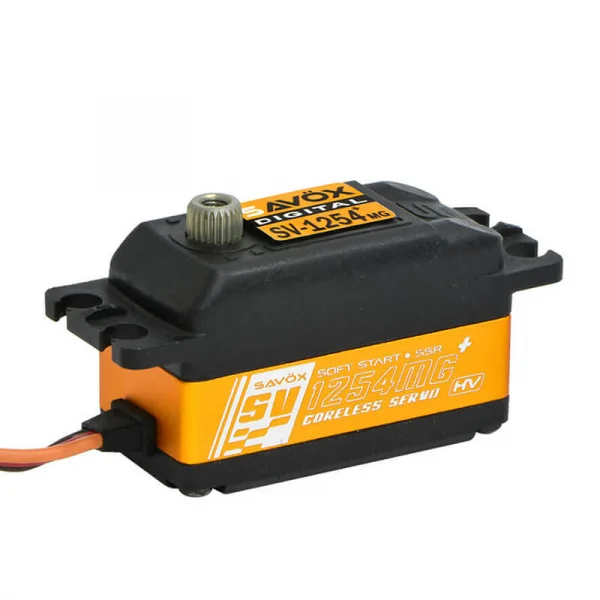

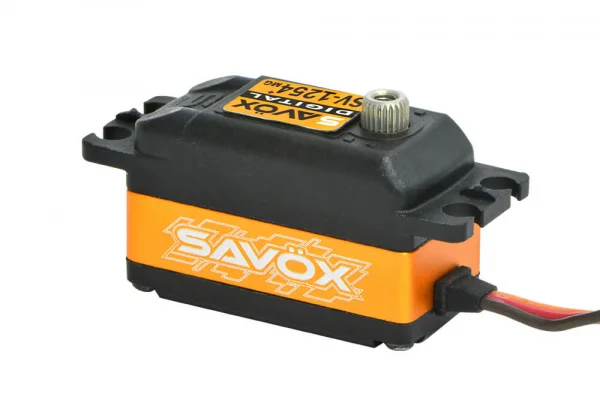

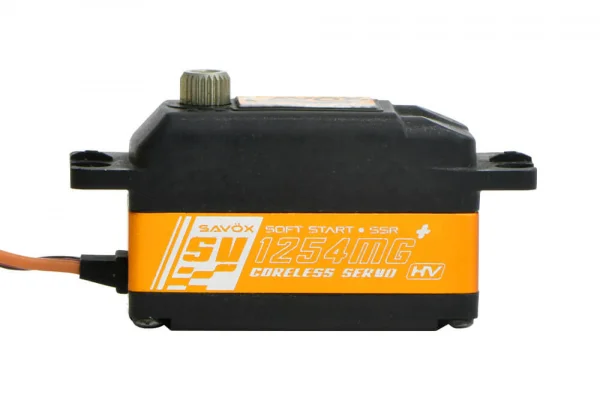

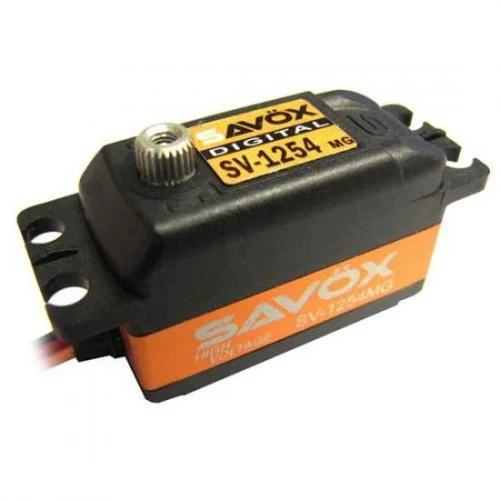

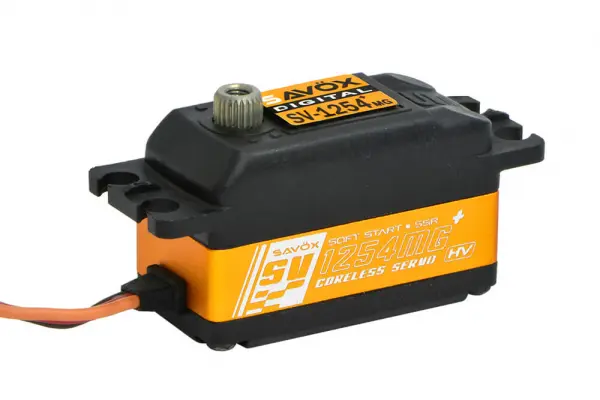

Savox SV1254MG+ HV Low Profile Digital Servo - 15KG / 0.085s

Brand: Savox

Part No: SAV-SV1254MG+

£57.59 ~~RRP £63.99~~

Shadow Stock: Usually ships next day

Request Price Match Ask a Question Write a Review

The Savox SV1254MG+ (SAV-SV1254MG+) is a high-performance HV low profile digital servo that combines a coreless motor with a steel gear train for rapid response and long-term durability. Delivering up to 15kg-cm of torque with a swift 0.085s transit time at 7.4V, it packs standard-size performance into a compact footprint.

The "+" revision adds a new Soft Start Mode and Sanwa SSR compatibility for refined control and tighter integration with modern radio systems. A 25T output spline and part aluminium case complete a robust, track-ready specification.

Key Features

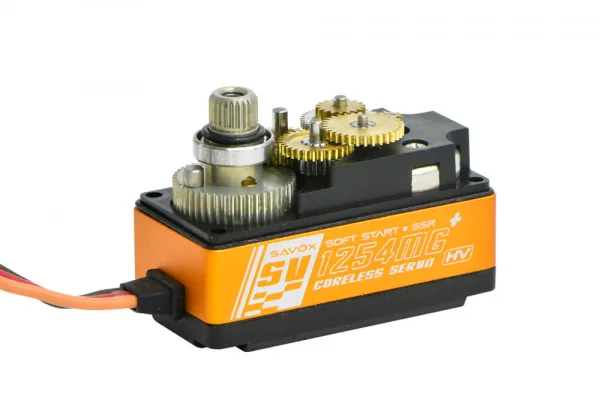

Steel gear train for durability under heavy use
High-voltage operation
Low profile size with standard performance
Suggested compatibility: 1/10 on-road platforms and tight installations
Plus model enhancements: Soft Start Mode and Sanwa SSR compatibility
25T output spline

Specifications

Dimensions: 40.8 x 20.2 x 25.4mm
Weight: 46.0g
Speed @6.0V (sec/60°): 0.10
Speed @7.4V (sec/60°): 0.085
Speed @8.4V (sec/60°): 0.075
Torque @6.0V (kg-cm): 12.00
Torque @7.4V (kg-cm): 15.00
Torque @8.4V (kg-cm): 18.00
Bearings: 2BB
Case: Part aluminium

Free Shipping

On UK Orders over £100

Happy to Help

Helpful, friendly advice

28 Day Returns

Easy returns process

Secure Payments

Secured by Stripe

SAVOX HV LOW PROFILE DIGITAL SERVO 15KG/[email protected] - PLUS

The Savox SV1254MG+ servo is a high performance coreless servo with good torque and fast transit time in a low profile package.

Features

Steel gear train provide durability against heavy use.
Capable of HV operation.
Standard size performance in a low profile package.
Ideal for 1/10 on road and other applications where space is tight.

Specifications

Dimensions: 40.8 x 20.2 x 25.4mm
Weight: 46.0g
Speed @6.0V (sec/60°): 0.10
Speed @7.4V (sec/60°): 0.085
Speed @8.4V (sec/60°): 0.075
Torque @6.0V (kg-cm): @7.4v 12.00
Torque @7.4V (kg-cm): @7.4v 15.00
Torque @8.4V (kg-cm): @7.4v 18.00
Bearing: 2BB
Case: Part Aluminium
Servo Horn: 25 Tooth Spline

Performance Radar

Easily compare RC servo models with our intuitive radar chart. This tool visualizes critical performance metrics, allowing you to assess and select the ideal servo for your needs. Whether you're prioritizing speed, durability, or precision, the Performance Radar helps you make informed decisions with confidence.

Savox servos are renowned for their versatility, catering to a wide range of applications, from high-speed racing to heavy-duty off-road tasks. Engineered for reliability and performance, they deliver the perfect balance of power, precision, and durability, making them a trusted choice for RC enthusiasts worldwide.

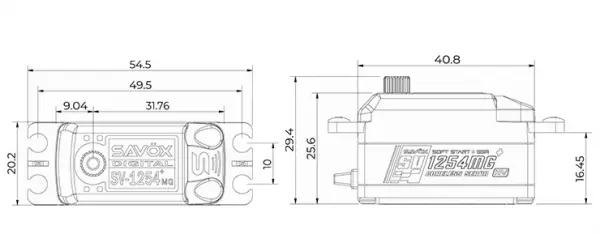

Dimensions

New Savox and Plus / "+" Models: feature a new Soft Start Mode and Sanwa SSR compatibility.

Unsure which servo you need for your model?

Visit our Savox Servo Soultion Centre and find the ideal servo for your needs.

Key Info:

Brand: Savox
Part No: SAV-SV1254MG+
Barcode: 4710006994284
Max Voltage: 7.4v+ (LiPo)
Gear Material: Metal
