Savox SV1271+ High Voltage Standard Size Servo - 25KG - 0.08s
Brand: Savox
Part No: SAV-SV1271SG+
In Stock: Usually ships same day

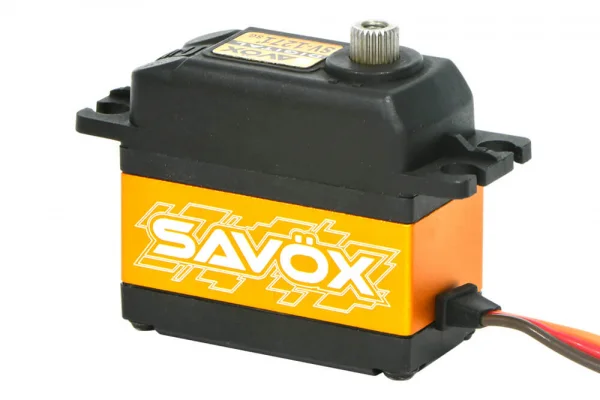

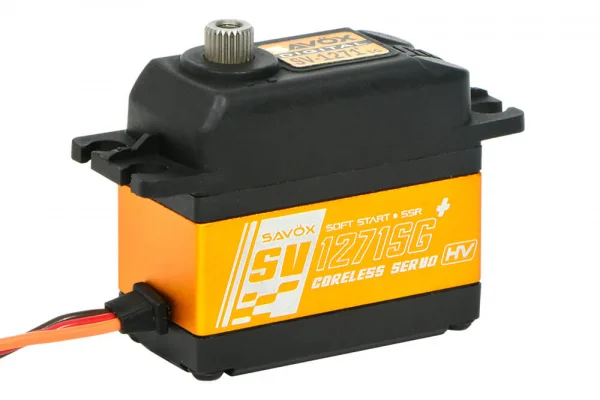

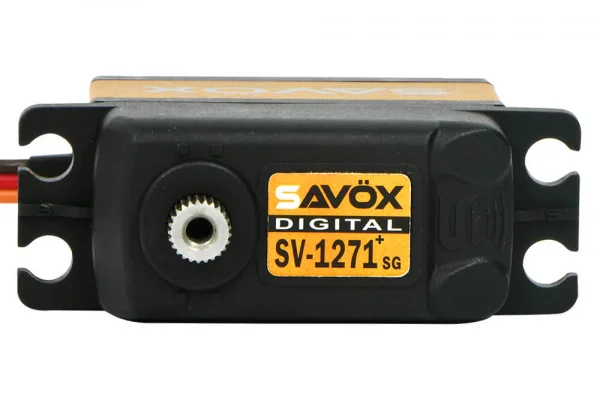

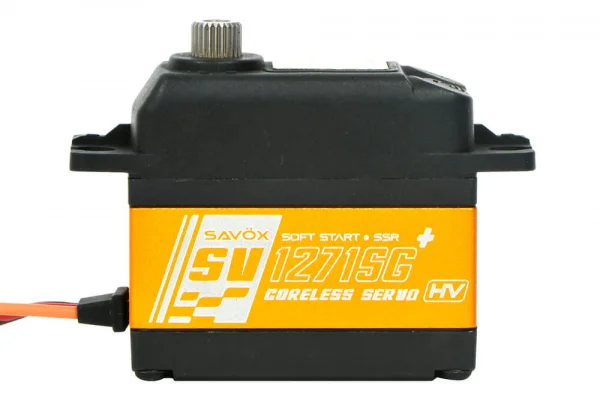

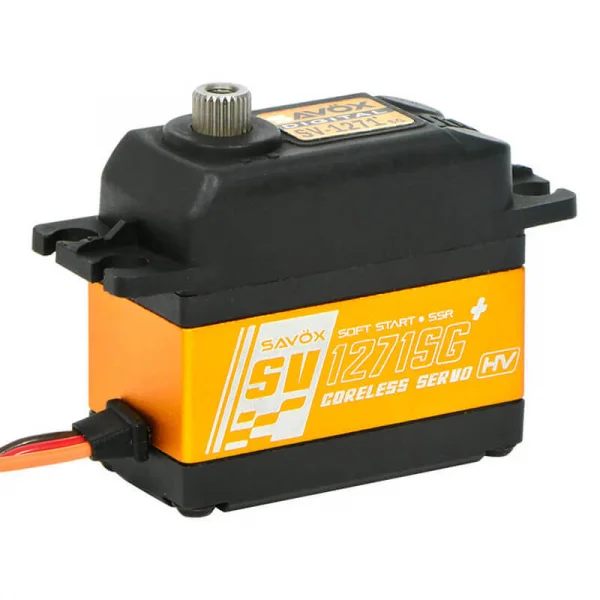

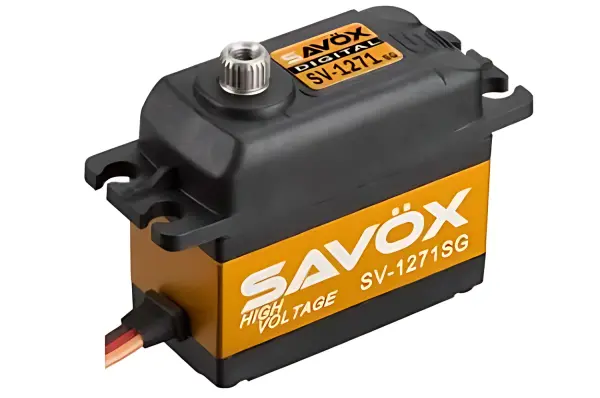

The Savox SV1271SG+ is a high voltage, standard-size digital servo delivering rapid response and serious holding power. With a coreless motor, unique steel gears and a part aluminium case, it offers a strong blend of speed, torque and durability for demanding RC applications. This updated "+" model builds on the proven SV1271 platform and carries part number SAV-SV1271SG+.
Features
- Super fast for its size at 0.08 sec/60 (7.4V).

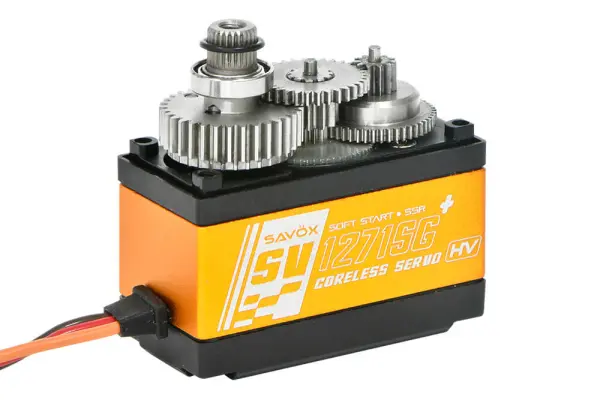

- Precision, unique steel gears for high durability under heavy use.
- Coreless motor for smoother, faster and more efficient performance.
- Designed for native high-voltage 2S LiPo operation.
Specifications

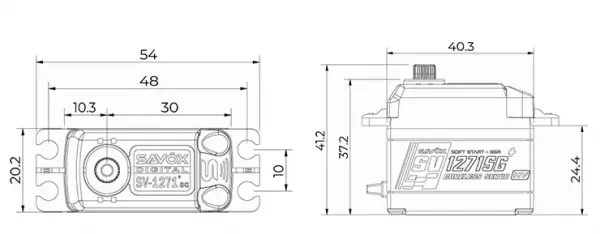

- Dimensions (mm): 40.3 x 20.2 x 37.2
- Weight: 63.0 g
- Speed @ 6.0V: 0.11 sec/60
- Torque @ 6.0V: 20 kg-cm
- Speed @ 7.4V: 0.08 sec/60
- Torque @ 7.4V: 30 kg-cm
- Speed @ 8.4V: 0.07 sec/60
- Torque @ 8.4V: 35 kg-cm
- Gears: Unique steel
- Bearings: 2BB
- Case: Part aluminium
- Spline: 25-tooth (25T)
Plus Model Enhancements
- New Soft Start Mode for smoother initial movement.
- Suggested compatibility with Sanwa SSR.
Suggested Compatibility
- Large-scale aeroplane models
- Jet models
- 1/5th scale surface vehicles
Secured by Stripe
The Savox SV1271SG+ 'Monster Torque' High Voltage Steel Gear Digital Servo is totally green - from materials to production, these servos are environmentally friendly. Ideal for large-scale airplane, jet, and 1/5th scale surface.
Features- Super fast for its size at .08 sec/60.
- Super strong and precision made unique steel gears provide high level of durability and survives heavy use.
- Coreless motor brings output performance to the top level - smoother, faster, and more efficient.
- Special design for high voltage native 2s LiPo operation.
- Dimensions(mm): 40.3 x 20.2 x 37.2
- Weight(g): 63.0
- Speed @6.0V (sec/60): 0.11
- Torque @6.0V (kg-cm): 20
- Speed @7.4V (sec/60): 0.08
- Torque @7.4V (kg-cm): 30
- Speed @8.4V (sec/60): 0.07
- Torque @8.4V (kg-cm): 35
- Gear: Unique Steel
- Bearing: 2BB
- Case: Part Aluminium
- Servo Horn: 25 Tooth Spline
Easily compare RC servo models with our intuitive radar chart. This tool visualizes critical performance metrics, allowing you to assess and select the ideal servo for your needs. Whether you're prioritizing speed, durability, or precision, the Performance Radar helps you make informed decisions with confidence.
Savox servos are renowned for their versatility, catering to a wide range of applications, from high-speed racing to heavy-duty off-road tasks. Engineered for reliability and performance, they deliver the perfect balance of power, precision, and durability, making them a trusted choice for RC enthusiasts worldwide.
New Savox and Plus / "+" Models: feature a new Soft Start Mode and Sanwa SSR compatibility.
Unsure which servo you need for your model?
Visit our Savox Servo Soultion Centre and find the ideal servo for your needs.
Key Info:
- Brand: Savox
- Part No: SAV-SV1271SG+
- Barcode: 4710006994239
- Max Voltage: 7.4v+ (LiPo)
- Gear Material: Metal
