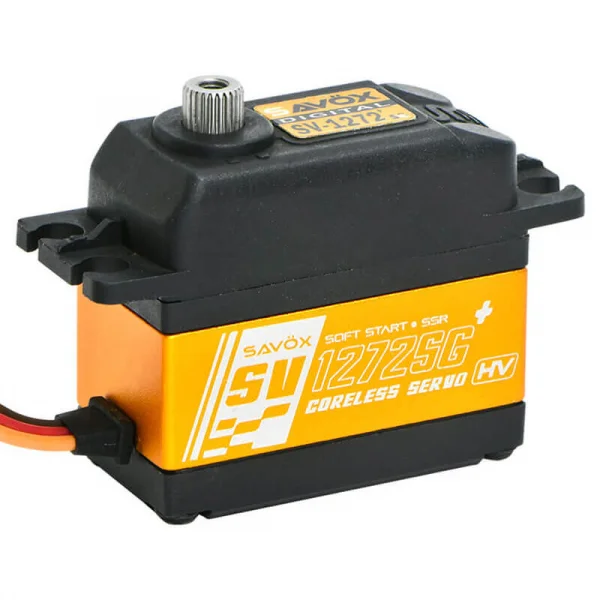

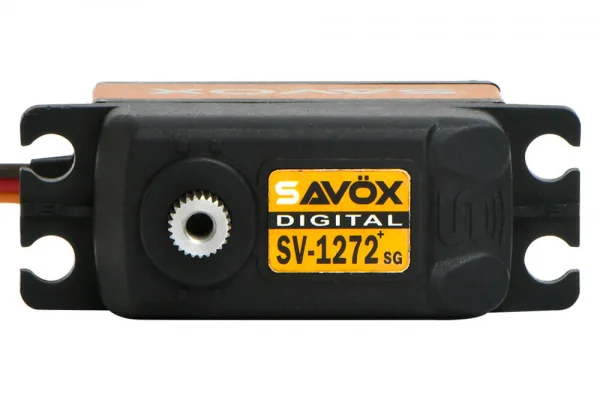

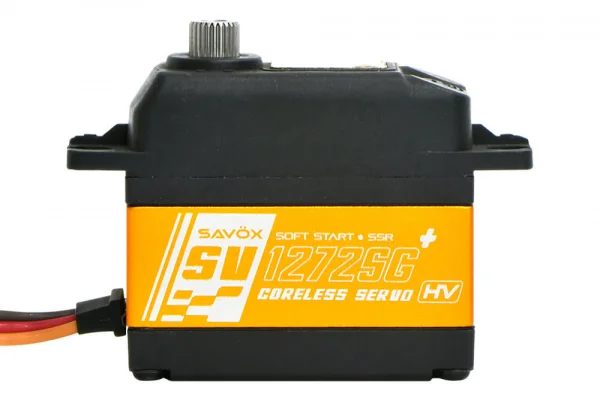

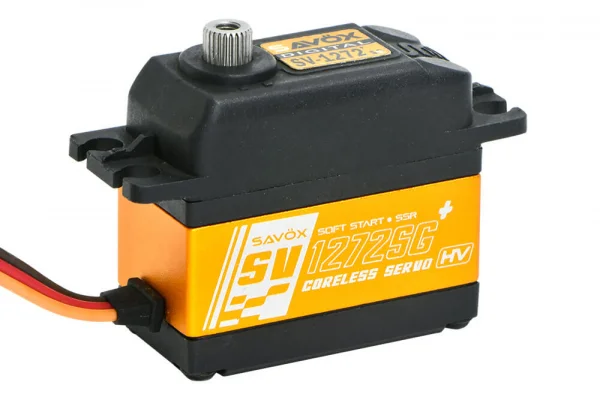

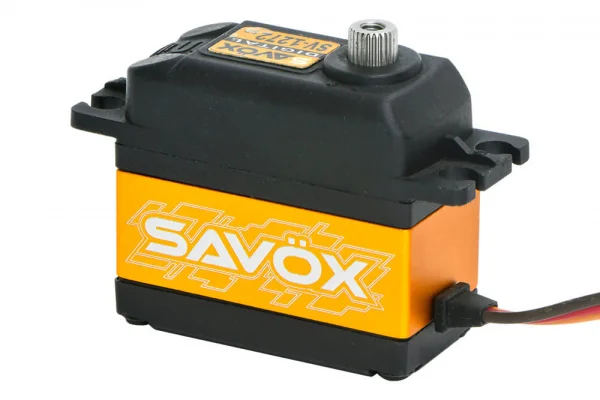

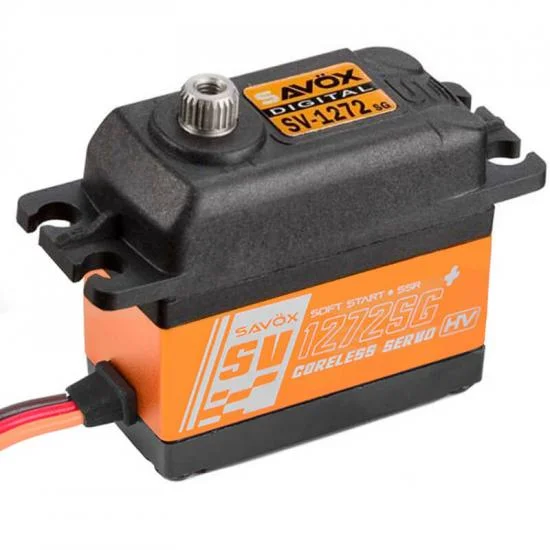

Savox SV1272SG+ High Voltage Standard Size Ultra Torque Servo - 30KG - 0.10s
Brand: Savox
Part No: SAV-SV1272SG+
In Stock: Usually ships same day
The Savox SV1272SG+ (part number SAV-SV1272SG+) is a high-voltage, standard-size digital servo designed for ultra torque applications. Built with precision unique steel gears and a smooth coreless motor, it delivers quick 0.10s transit at 7.4V with monster torque rated at 30kg-cm class. Published performance figures reach 35kg-cm at 7.4V and 40kg-cm at 8.4V, making it an excellent choice where strength and speed are essential. A part aluminium case aids heat dissipation, twin ball bearings support the output shaft, and a 25T spline offers wide horn options. Native 2S LiPo capability means simple high-voltage setup.
Features

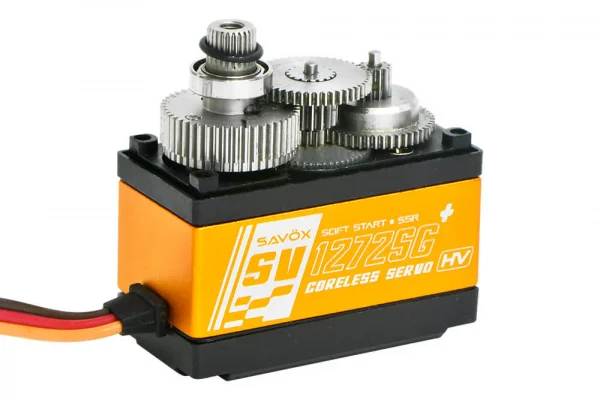

- Unique, super-strong steel gears for exceptional durability under heavy use.
- Coreless motor for smoother response, fast actuation, and efficient operation.
- High-voltage design for direct 2S LiPo operation.
- Environmentally friendly materials and production.
Specifications
- Dimensions (mm): 40.3 x 20.2 x 37.2
- Weight (g): 63.0
- Speed @ 6.0V (sec/60): 0.13
- Torque @ 6.0V (kg-cm): 23
- Speed @ 7.4V (sec/60): 0.10
- Torque @ 7.4V (kg-cm): 35
- Speed @ 8.4V (sec/60): 0.09
- Torque @ 8.4V (kg-cm): 40
- Gears: Unique steel
- Bearings: 2BB
- Case: Part aluminium
- Spline: 25-tooth (servo horn)
Suggested Applications
- Large-scale airplane and jet models
- 1/5th scale surface vehicles
Plus Model Enhancements
- Soft Start Mode for smooth, controlled initial movement
- Sanwa SSR compatibility
Secured by Stripe
The Savox SV1272SG+ 'monster torque' high voltage unique steel gear digital servo is extremely powerful for its size, pushing a massive 30kg-cm of torque.
Features- Super strong and precision made unique steel gears provide high level of durability and survives heavy use.
- Coreless motor brings output performance to the top level – smoother, faster, and more efficient.
- Special design for high voltage native 2s LiPo operation.
- Our servos are totally green – from materials to production, these servos are environmentally friendly.
- Ideal for large-scale airplane, jet, and 1/5th scale surface.
- Dimensions(mm): 40.3 x 20.2 x 37.2
- Weight(g): 63.0
- Speed @6.0V (sec/60): 0.13
- Torque @6.0V (kg-cm): 23
- Speed @7.4V (sec/60): 0.1
- Torque @7.4V (kg-cm): 35
- Speed @8.4V (sec/60): 0.09
- Torque @8.4V (kg-cm): 40
- Gear: Unique Steel
- Bearing: 2BB
- Case: Part Aluminium
- Servo Horn: 25 Tooth Spline
Easily compare RC servo models with our intuitive radar chart. This tool visualizes critical performance metrics, allowing you to assess and select the ideal servo for your needs. Whether you're prioritizing speed, durability, or precision, the Performance Radar helps you make informed decisions with confidence.
Savox servos are renowned for their versatility, catering to a wide range of applications, from high-speed racing to heavy-duty off-road tasks. Engineered for reliability and performance, they deliver the perfect balance of power, precision, and durability, making them a trusted choice for RC enthusiasts worldwide.
New Savox and Plus / "+" Models: feature a new Soft Start Mode and Sanwa SSR compatibility.
Unsure which servo you need for your model?
Visit our Savox Servo Soultion Centre and find the ideal servo for your needs.
Key Info:
- Brand: Savox
- Part No: SAV-SV1272SG+
- Barcode: 4710006994222
- Max Voltage: 7.4v+ (LiPo)
- Gear Material: Metal
