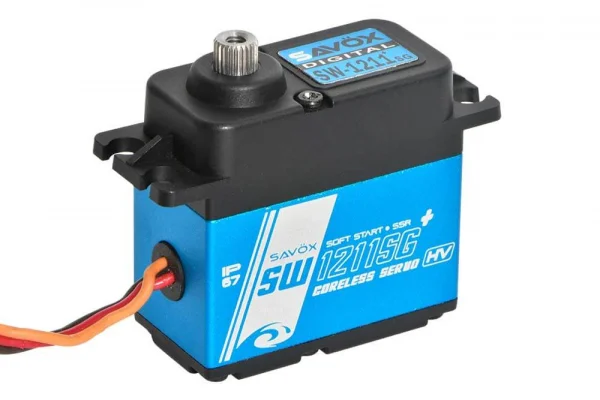

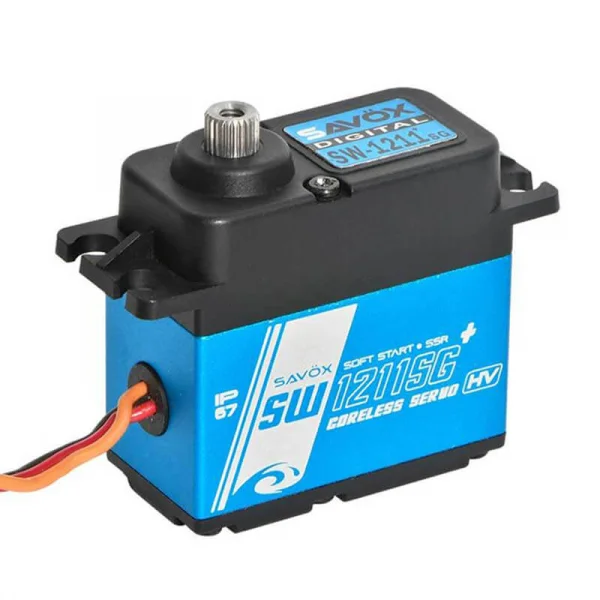

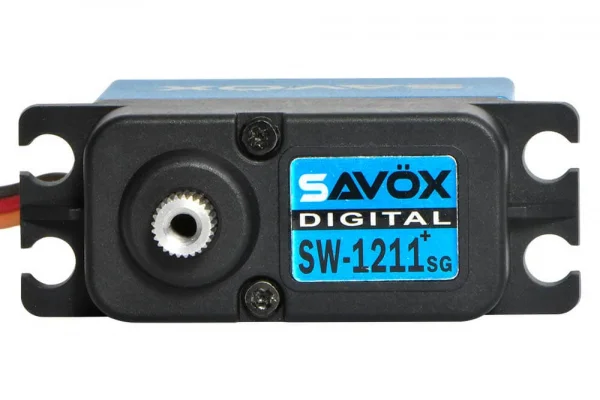

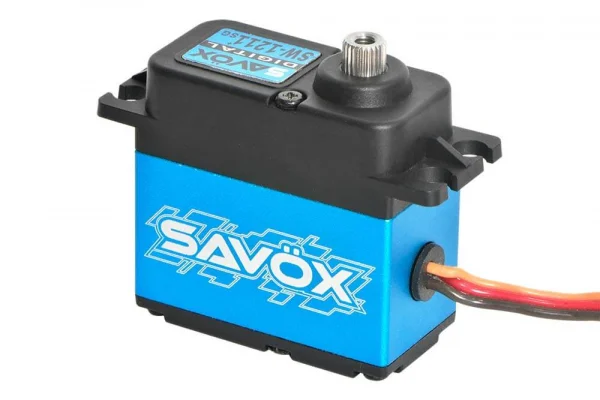

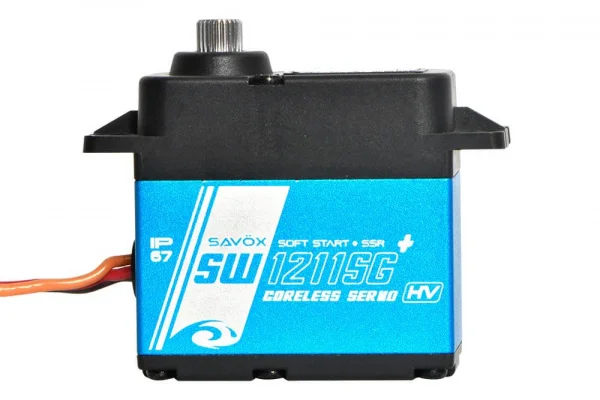

Savox SW1211SG+ Waterproof Digital HV Servo - 25Kg 0.08s
Brand: Savox
Part No: SAV-SW1211SG+
In Stock: Usually ships same day
The Savox SW1211SG+ (SAV-SW1211SG+) is a waterproof, high-voltage digital servo built around a coreless motor and a unique steel geartrain. Delivering up to 25 kg-cm of torque with 0.08 s transit at 7.4V—and an impressive 30 kg-cm and 0.07 s at 8.4V—it offers a strong upgrade over standard RTR servos for use in wet or harsh conditions.
Key Features
- High voltage capable (up to 8.4V)
- Coreless motor for high speed, efficiency, and low power draw

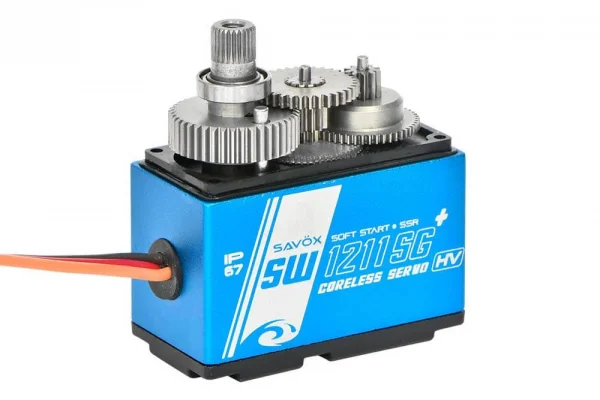

- Unique steel gears for strength and durability
- Aluminium heat sink case for cooler, smoother operation
- Dual ball bearings (2BB) for precise, smooth output
- 25T spline output shaft
- Plus-model enhancements: Soft Start Mode and Sanwa SSR compatibility
Performance
- Torque: 15 kg-cm @ 6.0V; 25 kg-cm @ 7.4V; 30 kg-cm @ 8.4V
- Speed: 0.10 s/60° @ 6.0V; 0.08 s/60° @ 7.4V; 0.07 s/60° @ 8.4V
Specifications

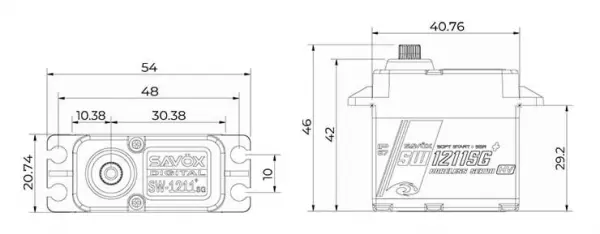

- Dimensions: 40.6 x 20.7 x 42.0 mm
- Weight: 71 g
- Gears: Unique steel
- Bearings: 2BB
- Case: Aluminium heat sink
- Output spline: 25 tooth (25T)
Suggested Compatibility
- 1/10 scale RC cars
- Trucks and buggies
- RC boats
Secured by Stripe
The Savox SW1211SG+ is the premier waterproof digital servo in the line-up. This coreless servo has 25 kg-cm of torque and a speed of .08 at 7.4V and is now High Voltage capable with an impressive 30 kg-cm of torque and a speed of .07 at 8.4V.
The SW1211SG+ Servo is an extremely versatile waterproof servo that's a great upgrade to standard RTR servos and fits many conditions such as rain, sleet, or snow.
- High voltage capable
- Coreless motor provides high speed, incredible efficiency, and low power consumption
- Strong unique steel gears provide durability and assurance
- The case design not only looks good but also allows for cooler and smoother operating temps
- Ideal for 1/10 RC cars, trucks, buggies, and boats
- Dimensions(mm): 40.6 x 20.7 x 42.0
- Weight(g): 71
- Torque @6.0V (kg-cm): 15
- Torque @7.4V (kg-cm): 25
- Torque @8.4V (kg-cm): 30
- Speed @6.0V (sec/60): .10
- Speed @7.4V (sec/60): .08
- Speed @8.4V (sec/60): .07
- Gear: Unique Steel
- Bearing: 2BB
- Case: Aluminium Heat Sink
- Servo Horn: 25 Tooth Spline
Easily compare RC servo models with our intuitive radar chart. This tool visualizes critical performance metrics, allowing you to assess and select the ideal servo for your needs. Whether you're prioritizing speed, durability, or precision, the Performance Radar helps you make informed decisions with confidence.
Savox servos are renowned for their versatility, catering to a wide range of applications, from high-speed racing to heavy-duty off-road tasks. Engineered for reliability and performance, they deliver the perfect balance of power, precision, and durability, making them a trusted choice for RC enthusiasts worldwide.
New Savox and Plus / "+" Models: feature a new Soft Start Mode and Sanwa SSR compatibility.
Unsure which servo you need for your model?
Visit our Savox Servo Soultion Centre and find the ideal servo for your needs.
Key Info:
- Brand: Savox
- Part No: SAV-SW1211SG+
- Barcode: 4710006994987
- Max Voltage: 7.4v+ (LiPo)
- Gear Material: Metal
