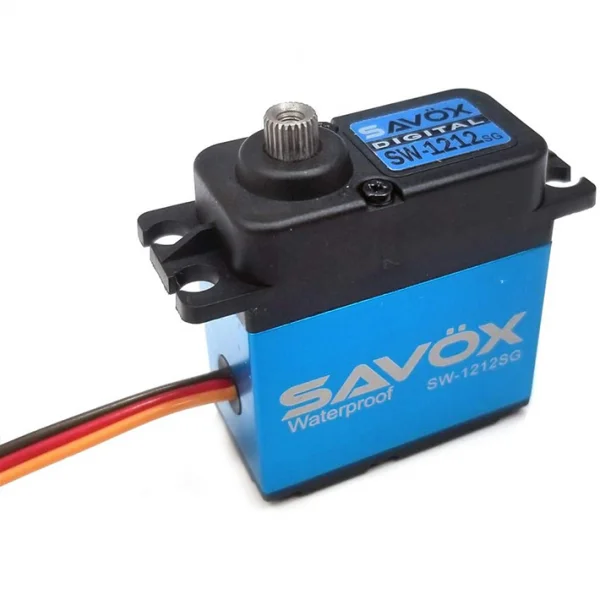

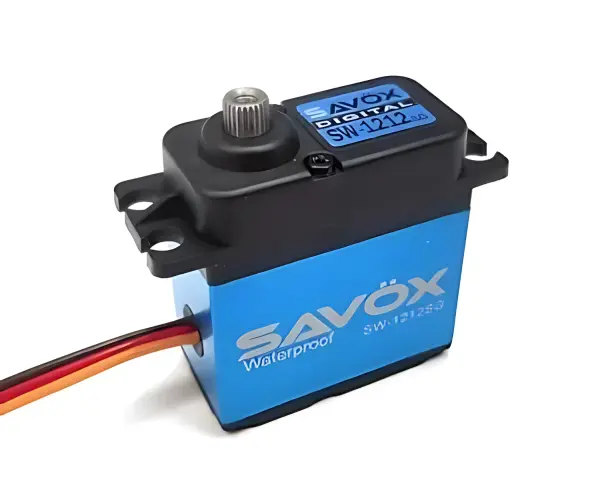

Savox SW1212SG Waterproof Digital HV Servo - 46Kg - 0.14

Savox SW1212SG Waterproof Digital HV Servo - 46Kg - 0.14

Brand: Savox

Part No: SAV-SW1212SG

THIS ITEM IS DISCONTINUED AND NO LONGER AVAILABLE.

PLEASE SEE ITEM #SAV-SW1212SG+ AS A REPLACEMENT

The Savox SW1212SG Waterproof Digital HV Servo (SAV-SW1212SG) delivers stump-pulling torque and dependable control for demanding RC applications. Built around precision steel gears and IP67-rated sealing (operates for up to 30 minutes in water up to 3 feet deep), it is engineered to handle harsh conditions. A slightly taller case makes it well suited to models that can accommodate increased servo height.

Key Features

Waterproof to IP67 (operates up to 30 minutes in water up to 3 feet deep)
Centre aluminium middle case with nylon composite top and bottom
Operates directly on 7.4V without the need for an external BEC
Precision ball bearings
Precision steel gears
Digital HV servo

Specifications

Torque @ 6.0V: 36.0 kg / 500 oz-in
Torque @ 7.4V: 46.0 kg / 638 oz-in
Speed @ 6.0V: 0.17 sec/60°
Speed @ 7.4V: 0.14 sec/60°
Weight: 83 g / 3.27 oz
Dimensions (L x W x H): 40.6 x 20.7 x 46.1 mm

Suggested Compatibility

Monster truck applications
Scaler builds
Rock crawlers
Vehicles that can accommodate a slightly taller servo

Free Shipping

On UK Orders over £100

Happy to Help

Helpful, friendly advice

28 Day Returns

Easy returns process

Secure Payments

Secured by Stripe

This waterproof, steel-geared servo is perfect for Monster Truck and most Scaler and Crawler applications where a slightly taller servo can be fitted. Precision steel gears, stump-pulling torque, and waterproof to IP67 standards (operates for up to 30 minutes in water up to 3 feet deep).

Savox SW1212SG Features:

Center aluminum with nylon composite top and bottom case
Operates directly on 7.4v without the need for an eternal BEC
Precision ball bearings

Savox SW1212SG Specifications:

Torque @6.0V - 36.0 kg/500 oz-in
Torque @7.4v - 46.0 kg/638 oz-in
Speed @6.0V - 0.17 sec/60 deg
Speed @7.4v - 0.14 sec/60 deg
Weight: 83g / 3.27oz
Dimensions L x W x H mm: 40.6 x 20.7 x 46.1

Key Info:

Brand: Savox
Part No: SAV-SW1212SG
Barcode: 4710006994383
Max Voltage: 7.4v+ (LiPo)
Gear Material: Metal

Standard Shipping

£3.95 to most of the UK

Express Shipping

£6.95 to most of the UK

Worldwide Shipping

Available at checkout

Reviews

No specific product reviews yet, why not write one?

WRITE A REVIEW

Name

Rating

Your Review

All reviews are subject to moderation

Questions & Answers

Real questions from real customers. Why not ask your own?

Does this fit a Kraton Exb without any additional mods?

Sam L / 29th January 2021

You would need to dremel the servo mount top plate and housing to take the servo.

Anthony @ Wheelspin Models

Does this Savox 1212 fit straight into my TRX4 and will it run at 6v or will I need a BEC?

Daniel / 7th December 2020

Yes it will fit in.

You will likely need a 150mm servo extension lead and yes I would highly recommend a BEC

Ben @ Wheelspin Models
