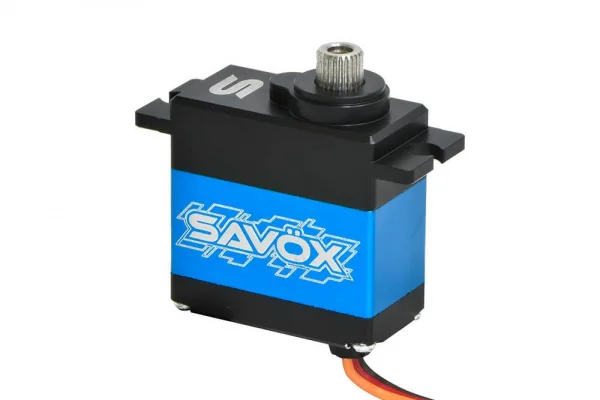

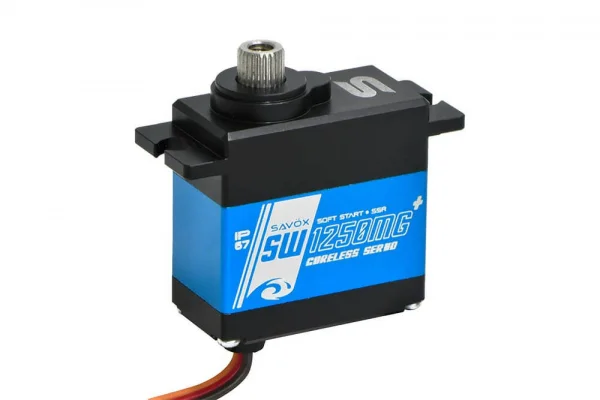

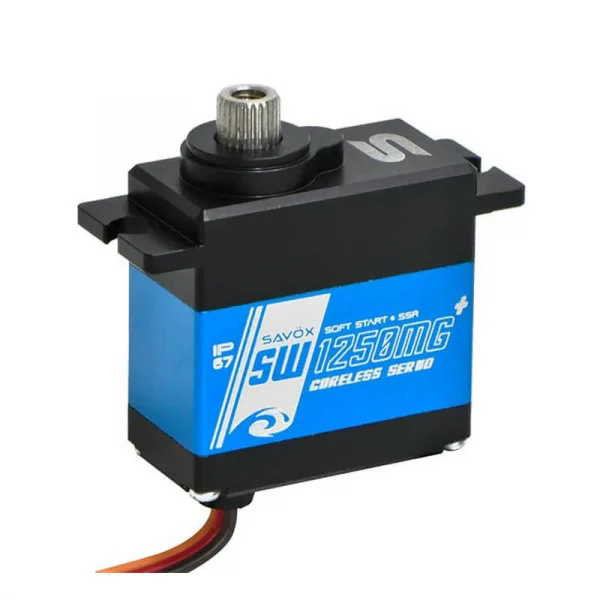

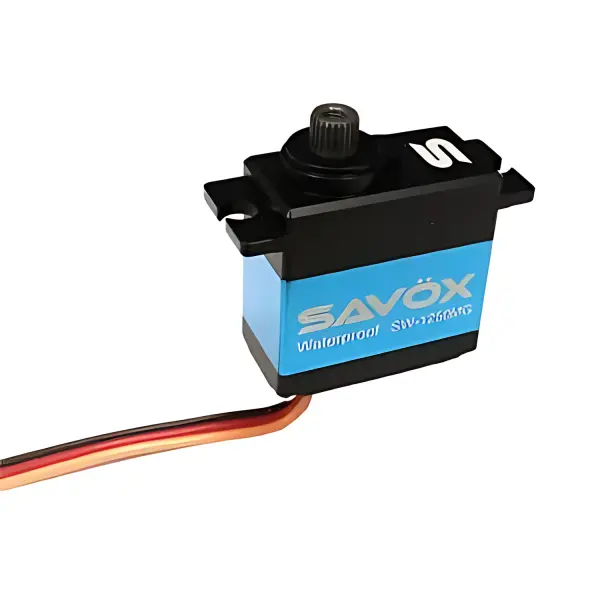

Savox SW1250MG+ Waterproof Digital Super Torque Micro Servo - 8KG - 0.10s (Upgrade for TRX2080)
Savox SW1250MG+ Waterproof Digital Super Torque Micro Servo - 8KG - 0.10s (Upgrade for TRX2080)
Savox SW1250MG+ Waterproof Digital Super Torque Micro Servo - 8KG - 0.10s (Upgrade for TRX2080)
Savox SW1250MG+ Waterproof Digital Super Torque Micro Servo - 8KG - 0.10s (Upgrade for TRX2080)

Savox SW1250MG+ Waterproof Digital Super Torque Micro Servo - 8KG - 0.10s (Upgrade for TRX2080)

Brand: Savox

Part No: SAV-SW1250MG+

£66.23 RRP £71.99

Shadow Stock: Usually ships within 2 days

Collect Instore
SAVOX W/PROOF DIGITAL MINI SERVO 8KG/0.10s@6V (TRX 1/16) PLUS

The SW1250MG+ is a premium waterproof, ultra torque, digital mini servo that is the ultimate replacement for Traxxas 1/16 scale applications.

Features
  • Full aluminium waterproof case.
  • Strong metal gear train for increased durability.
  • Ultra torque and speed for mini applications
  • Designed for Traxxas 1/16 vehicles.
Specifications
  • Torque @ 6.0v - 5.0 kg-cm/69.4 oz-in
  • Torque @ 7.4v - 8.0 kg-cm/111.1 oz-in
  • Speed @ 6.0v - 0.12 sec/60 deg
  • Speed @ 7.4v - 0. 10sec/60 deg
Technical Details

Operating Temperature: 14° - 122°F (-10° - 50°C)
Running Current (no load): 80mA @4.8V, 100mA @6.0V
Stall Current (at locked): 1500mA @4.8V, 1900mA @6.0V
Idle Current: 5mA @4.8V, 5mA @6.0V
Wire Length: 200 ± 5mm
Output Gear Spline: 25 Tooth
Bearings: 1BB
Operating Travel: 100° (1000 → 2000 µ second)
Neutral Position: 1500 µ second
Pulse Width Range: 800 → 2200 µ second
Maximum Travel: Appx 130° (800 → 2200 µ second)
Refresh Rate: 333 Hz
Motor Type: Coreless

Savox Plus / "+" Models: feature a new Soft Start Mode and Sanwa SSR compatibility.


Unsure which servo you need for your model?

Visit our Savox Servo Soultion Centre and find the ideal servo for your needs.

Standard Shipping

£3.95 to most of the UK

Express Shipping

£6.95 to most of the UK

Worldwide Shipping

Available at checkout

Reviews
No specific product reviews yet, why not write one?
WRITE A REVIEW
All reviews are subject to moderation
Questions & Answers
Real questions from real customers. Why not ask your own?
Will this work in a TRX 4M ? Thanks
Kelvin / 30th September 2023

Yes, this will work with the TRX 4m

Si @ Wheelspin Models
will this fit a scx24
Morgan Griffiths / 2nd October 2022

Yes this should fit for you

Si @ Wheelspin Models
Could this be used as a replacement for the micro servos in the trx4? I know it’s overkill but they look nice haha
Sam / 2nd June 2022

No that is slightly too big , we would recommend this instead

HD-TR-4



Steve W @ Wheelspin Models
