SKY RC ARES PRO V4 Brushless Motor MOD 3.5T
Brand: SkyRC
Part No: SCH-SK-400034-07
£46.79
RRP £51.99
Shadow Stock: Usually ships within 2 days

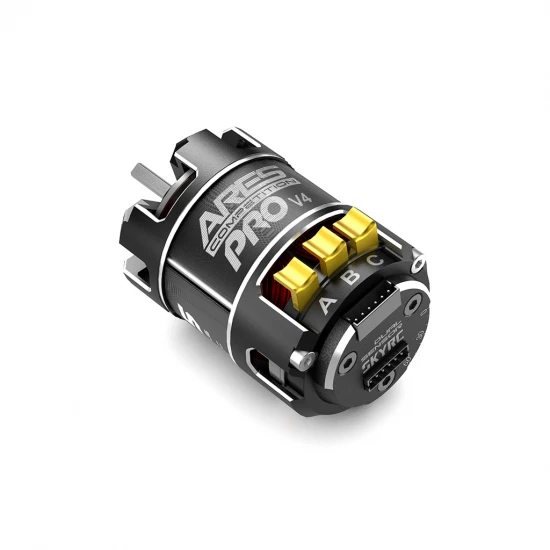

The SkyRC Ares Pro V4 MOD 3.5T Sensored Brushless Motor (part SCH-SK-400034-07) is a competition-focused 1/10 motor engineered for precise, repeatable performance. This V4 generation brings an all-new design to maximise power delivery, cooling and control across demanding race conditions.
ROAR approved for race legality, Ares Pro V4 combines low-resistance solder tabs, a CNC-machined aluminium heatsink can with rear venting, and advanced sensor technology to deliver smooth throttle response with ultra-precise low-speed control. High-purity 220°C windings, 200°C neodymium magnets and a precision-balanced, heat-resistant rotor work together for strong torque, high RPM and consistent output, run after run.
Key Features
- ROAR approved for competition use.
- Low-resistance solder tabs to minimise power loss.
- CNC aluminium heatsink case with large rear vent to improve airflow over the Hall sensor.
- Global-grade bearings and precision shaft for ultra-smooth operation.
- High-purity, 220°C-rated copper windings for efficient, low-heat power delivery.
- Precision-balanced rotor with 200°C heat-resistant, explosion-proof structure.
- 200°C high-temp neodymium magnets with high-efficiency iron core for stable torque.
- Advanced sensor system for cog-free starts and accurate low-speed control.
- Dual sensor ports in different orientations for simplified wiring and redundancy. Before use, please confirm your ESC’s continuous/peak current, supported cell count, and sensor port type to ensure compatibility with the motor specifications.
- Fully rebuildable, modular design for easy service of housing, stator, windings and bearings.
- Multiple turn options available for track and class needs.
Adjustable Timing Guide
- Low timing (0–20°): Later power delivery for smooth output, stable torque and linear launches; suited to flowing sections and maintaining traction.
- Mid timing (20–40°): Balanced punch and sustained acceleration; ideal for mixed layouts with straights and curves, including drift-style circuits.
- High timing (40–60°): Earlier, aggressive power delivery for rapid RPM climb and higher top speed on flat-out straights.
Specifications
- Class: 1/10 sensored brushless motor
- Turn: MOD 3.5T
- Size: 35.8 x 35.8 x 52 mm
- Weight: 148 g ±5 g
- Operating temperature: -10°C to 80°C
- Operating humidity: 20%–80% (non-condensing)
- Storage temperature: 0°C to 50°C
- Storage humidity: 30%–60% (non-condensing)
Secure Payments
Secured by Stripe
Introducing the SKY RC Ares V4 1/10 Sensored Brushless Motor, with all new design.
ROAR Approved Roaring Ahead
On the track or in every turn, the ROAR-approved ARES PRO 4 delivers uncompromising, professional-grade power.
ROAR isn’t just about compliance—it’s a mark of excellence.
Race with confidence. Race with ARES PRO 4.
Competition-Optimized Design
Every Detail Tuned to Win. Engineered to Excel.
Low-Resistance Solder Tabs
High-quality tabs minimize power loss, ensuring maximum current flows straight to the rotor.
Stay Cool: CNC Aluminum Heatsink Case with Rear Venting
The precision-machined aluminum case dissipates heat efficiently, while a large rear vent boosts airflow over the Hall sensor for stable, reliable performance.
Global-Grade Bearings & Precision Shaft for Ultra-Smooth Control
Top-tier international brand bearings paired with a high-precision shaft ensure buttery-smooth, accurate operation—race after race.
High-Purity, High-Temp Copper Windings
220°C-rated, high-purity copper windings ensure efficient, low-heat power delivery for stronger punch and higher top speed.
Precision-Balanced, Heat-Resistant Rotor
Meticulously balanced for ultra-smooth rotation and minimal vibration, the rotor is crafted with a 200°C heat-resistant, explosion-proof structure—delivering consistent power, higher RPMs, and lasting durability.
200°C High-Temp Neodymium Magnets
200°C heat-resistant neodymium magnets and a high-efficiency iron core deliver strong torque, stable magnetism, and consistent performance under pressure.
Advanced Sensor
No Hesitation. Just Precision.
ARES PRO 4 features advanced sensor technology for ultra-smooth throttle response and precise low-speed control—crucial for technical tracks and tight corners. By eliminating cogging, or hesitation at low RPMs, it delivers seamless, immediate power exactly when you need it.
Adjustable Timing.
Any Track.
Adjustable timing is the core of brushless precision, enabling power delivery to adapt seamlessly to any track condition.
Low Timing (0-20deg)
Later power delivery creates smooth output, stable torque, and linear starts.
Ideal for precise control through continuous corners, preventing sudden wheel spin.
Mid Timing (20-40deg)
Balances instant punch with smooth sustained acceleration.
Perfect for mixed circuits with straights and curves, such as drift tracks
High Timing (40-60deg)
Earlier power delivery drives rapid RPM climbs and explosive top speed.
Best for flat-out straights, achieving higher RPM under the same voltage.
Redundant Dual Sensor Ports.
Zero Hassle.
Placed in different orientations, the dual sensor ports simplify wiring and offer built-in redundancy. If one fails, the other keeps you running—seamlessly and reliably.
Plug in. Power on. No setup—just pure performance.
*Before use, please confirm your ESC’s continuous/peak current, supported cell count, and sensor port type to ensure compatibility with the motor specifications.
Modular by Design.
Built to Stay New.
ARES PRO 4 features a fully rebuildable, modular design—allowing easy disassembly of the housing, stator, windings, and bearings with standard RC tools.
Clean, service, and swap components to keep performance sharp and consistent, race after race.
Always fresh. Always in control.
Multiple Turn Options.
Ready for Any Track.
Each turn rating gives your car its own distinct character.
Lower turns deliver explosive speed and powerful thrust.Higher turns offer smooth, consistent power for confident control, lap after lap.
Size and Weight
Size: 35.8x35.8x52mm
Weight: 148g±5g
Working and Storage
Operating temperature: -10°C-80°C
Operating humidity: 20%-80% (non-condensing)
Storage temperature: 0°C-50°C
Storage humidity: 30%-60% (non-condensing)
Key Info:
ROAR Approved Roaring Ahead
On the track or in every turn, the ROAR-approved ARES PRO 4 delivers uncompromising, professional-grade power.
ROAR isn’t just about compliance—it’s a mark of excellence.
Race with confidence. Race with ARES PRO 4.
Competition-Optimized Design
Every Detail Tuned to Win. Engineered to Excel.
Low-Resistance Solder Tabs
High-quality tabs minimize power loss, ensuring maximum current flows straight to the rotor.
Stay Cool: CNC Aluminum Heatsink Case with Rear Venting
The precision-machined aluminum case dissipates heat efficiently, while a large rear vent boosts airflow over the Hall sensor for stable, reliable performance.
Global-Grade Bearings & Precision Shaft for Ultra-Smooth Control
Top-tier international brand bearings paired with a high-precision shaft ensure buttery-smooth, accurate operation—race after race.
High-Purity, High-Temp Copper Windings
220°C-rated, high-purity copper windings ensure efficient, low-heat power delivery for stronger punch and higher top speed.
Precision-Balanced, Heat-Resistant Rotor
Meticulously balanced for ultra-smooth rotation and minimal vibration, the rotor is crafted with a 200°C heat-resistant, explosion-proof structure—delivering consistent power, higher RPMs, and lasting durability.
200°C High-Temp Neodymium Magnets
200°C heat-resistant neodymium magnets and a high-efficiency iron core deliver strong torque, stable magnetism, and consistent performance under pressure.
Advanced Sensor
No Hesitation. Just Precision.
ARES PRO 4 features advanced sensor technology for ultra-smooth throttle response and precise low-speed control—crucial for technical tracks and tight corners. By eliminating cogging, or hesitation at low RPMs, it delivers seamless, immediate power exactly when you need it.
Adjustable Timing.
Any Track.
Adjustable timing is the core of brushless precision, enabling power delivery to adapt seamlessly to any track condition.
Low Timing (0-20deg)
Later power delivery creates smooth output, stable torque, and linear starts.
Ideal for precise control through continuous corners, preventing sudden wheel spin.
Mid Timing (20-40deg)
Balances instant punch with smooth sustained acceleration.
Perfect for mixed circuits with straights and curves, such as drift tracks
High Timing (40-60deg)
Earlier power delivery drives rapid RPM climbs and explosive top speed.
Best for flat-out straights, achieving higher RPM under the same voltage.
Redundant Dual Sensor Ports.
Zero Hassle.
Placed in different orientations, the dual sensor ports simplify wiring and offer built-in redundancy. If one fails, the other keeps you running—seamlessly and reliably.
Plug in. Power on. No setup—just pure performance.
*Before use, please confirm your ESC’s continuous/peak current, supported cell count, and sensor port type to ensure compatibility with the motor specifications.
Modular by Design.
Built to Stay New.
ARES PRO 4 features a fully rebuildable, modular design—allowing easy disassembly of the housing, stator, windings, and bearings with standard RC tools.
Clean, service, and swap components to keep performance sharp and consistent, race after race.
Always fresh. Always in control.
Multiple Turn Options.
Ready for Any Track.
Each turn rating gives your car its own distinct character.
Lower turns deliver explosive speed and powerful thrust.Higher turns offer smooth, consistent power for confident control, lap after lap.
Size and Weight
Size: 35.8x35.8x52mm
Weight: 148g±5g
Working and Storage
Operating temperature: -10°C-80°C
Operating humidity: 20%-80% (non-condensing)
Storage temperature: 0°C-50°C
Storage humidity: 30%-60% (non-condensing)
Key Info:
- Brand: SkyRC
- Part No: SCH-SK-400034-07
- Barcode: 5051294209025
