Sky RC Corner Weight System

SK-500015 - Corner Weight System

Corner Weight System

Corner weight scales allow precise car weight distribution which is critical to on track success. The four corners of the car may be bearing different amounts of the car weight. The unequal corner weights can be felt as the car rolling more when turning in one direction than the other. The car’s stability is compromised which will adversely affect its balance. A well balanced car is generally easier to drive quicker due to increased the car’s stability.
To make sure weight percentages are correct, computerised scale system must be used. Correct chassis setup separates the front runners from the followers. Corner Weight Scales provide the necessary data for anyone tobecome a chassis expert.
Ideally the car should have 50% of its weight on the Left Front and Right Rear tires, and 50% on the Right Frontand Left Rear. If your cars diagonal corner weights are not equal then its handling will be unbalanced--it will turn better in one direction than in the other (all other things being equal).
This product consist of one main unit and four separate scales, the maximum weight limit for each scale is 2000 grams.

Designed for 1/8 buggy and truck, 1/10 buggy & touring car and 1/12 car.
Measure the car’s corner weight, front and rear distribution and make adjustment if necessary.
The maximum weight limit for each scale is 2000 grams.
Measurements can be displayed in gram, oz.
Highly accurate weight measurement in 0.1g increments (equivalent to 0.01 oz).

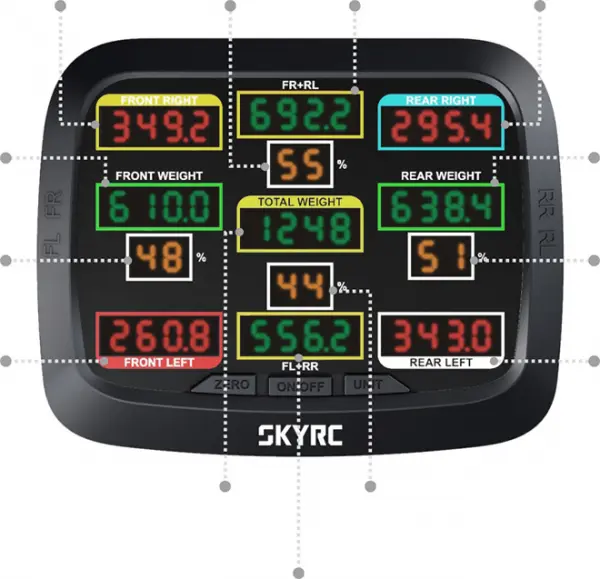

4 red LED screens for displaying each corner weight measurement.
2 green LED screens for displaying front weight and rear weight.
2 green LED screens for displaying corner weighting(front right + rear left, front left + rear right).
1 green LED screen shows total weights.
4 LED screens for displaying percentage of weights distribution.
4 large, easy to clean aluminum weighting surface and easy to use 3 button operation.
Powered by 4 x AA batteries (batteries NOT included) or external DC source(6-13.8V).
