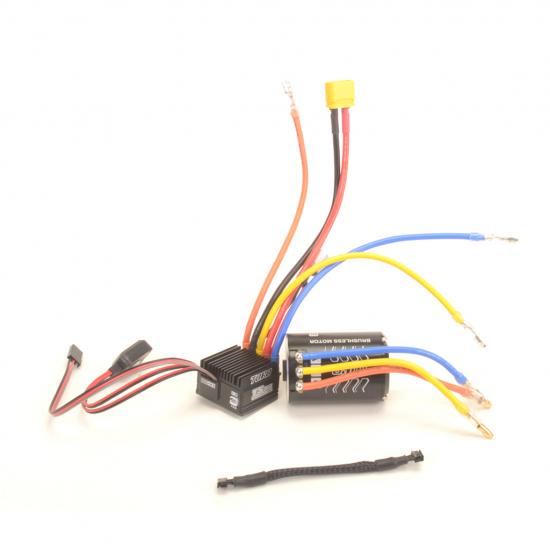

SkyRC Toro TS50 ESC Combo 17.5T Motor
Brand: SkyRC
Part No: SCH-SK-300060-03
€87.04
RRP €93.59
In Stock: Usually ships same day
Finance options available at checkout.
Frequently Bought With
Other items customers often buy with the SKY RC Toro TS50 ESC Combo With 17.5T Motor
Description
The SkyRC Toro TS50 ESC Combo with 17.5T Motor (SCH-SK-300060-03) pairs a capable 50A speed controller with a smooth-running brushless motor. Designed with simplicity in mind, it’s an approachable way for newcomers to experience brushless performance while retaining robust protection and reliable hardware.
Key Features
- Beginner-friendly TS50 ESC with simplified operation.
- Supports full sensored mode when used with a racing motor for precise, consistent throttle feel.
- Waterproof, dust-proof electronic power switch for easy, reliable on/off control.
- Built-in reverse polarity protection helps safeguard the ESC from incorrect battery connection.
- Tough hardware with maximised heat sink surface, high-quality silicone cables, and an ultra-high efficiency, low-resistance design.
- 17.5T brushless motor with a machined aluminium alloy shell, double ball bearings, 12.5 mm sintered rotor, and front cooling hole.
- XT60 battery lead and bullet motor connectors.
Specifications
- ESC Constant/Burst Current: 50A / 300A
- Motor Compatibility: Brushless sensored & sensorless
- Motor Limits (ESC): > 8.5T (1/10 touring car); > 11.5T (1/10 buggy)
- Battery: 4–6S NiMH or 2S LiPo
- BEC Output: 6V @ 2A
- ESC Resistance: 0.0006 Ω
- ESC Size: 35.3 × 32.4 × 19.7 mm (L × W × H)
- ESC Weight: 60 g
Suggested Compatibility
- 1/10 buggy platforms
- 1/10 touring car platforms
Secure Payments
Secured by Stripe
SKY RC Toro TS50 ESC Combo With 17.5T Motor Manuals & Guides
Manuals & Guides
Specifications
From SKY RC are these low cost Brushless Combo's. The TORO TS50 ESC and brushless motor combo set is simple in design, with a waterproof electronic switch, specially designed for beginners, suitable for 1/10 Buggy and Touring car. The motor is powered by 4-6S NiMH or 2S LiPo batteries, and it can
From SKY RC are these low cost Brushless Combo's.The TORO TS50 ESC and brushless motor combo set is simple in design, with a waterproof electronic switch, specially designed for beginners, suitable for 1/10 Buggy and Touring car. The motor is powered by 4-6S NiMH or 2S LiPo batteries, and it can work with a BEC of 6V/2A.
Easy Operation
The included ESC is specially designed for RC beginners. SkyRC has simplified the operation while maintaining the outstanding quality.
Brushless is easier!
RC racing should be made easy! With a new standard ESC, RC racers can enjoy more intensive racing. By introducing all the expertise accumulated in RC racing, this ultra-high performance ESC is ideally suited to those who are new to brushless motors!
Full Sensored Mode
TS50 ESC will work in full sensored mode when working with a racing motor, which allows the racer more operability and flexibility to control.
Tough hardware: reliability and stability
Maximize surface heat sink
High-quality silicone cables
Ultra-high efficiency & low resistance
Reverse Polarity Protection
The TS50 ESC is designed with a built-in reverse-voltage protection circuit to protect the ESC components from the reverse battery connection.
Electronic Power Switch
Compared to the mechanical switch, the electronic power switch is waterproof and dust-proof, easy to operate, and eliminates intermittent contact.
The best value motor ever easier to use!
The value of brushless is entering a new era. Let's run more easily and comfortably!
All machined aluminium alloy shell.
Double ball bearing.
12.5mm sintered rotor.
Front cooling hole.
Specification
Constant/Burst Current - 50A/300A
Motor Compatible - Brushless Sensor & Sensorless
Car Compatible - 1/10 Buggy and Touring Car
Motor Limits - 4-6S NiMH or 2S LiPo
> 8.5T (1/10 Touring Car)
> 11.5T (1/10 Buggy)
Resistance - 0.0006ohm
Battery Cell Count - 4-6S NiMH or 2S LiPo
BEC Output - 6V@2A
Size - 35.3x32.4x19.7mm (LxWxH)
Weight - 60g
XT60 power, and bullet motor connectors
Key Info:
- Brand: SkyRC
- Part No: SCH-SK-300060-03
- Barcode: 5051294172879
Delivery & Returns
Standard Shipping
£3.95 to most of the UK
Express Shipping
£6.95 to most of the UK
Worldwide Shipping
Available at checkout
Customer Reviews
No specific product reviews yet, why not write one?Write a Review
All reviews are subject to moderation
Questions & Answers
Real questions from real customers. Why not ask your own?
Hi, is the a sensored set up? I currently run a 15T brushed core RC Motor with 2s lipo. How will this compare to this set up? Will the speed be around the same?
Regards
James
James Davies / 3rd March 2022
This will be a good replacement system yes, the speed would depend on if you are using Nimh or Lipo batteries. ( lipo would be quicker )
Si @ Wheelspin Models
