SkyRC Electronic Power Switch
SkyRC Electronic Power Switch
SkyRC Electronic Power Switch

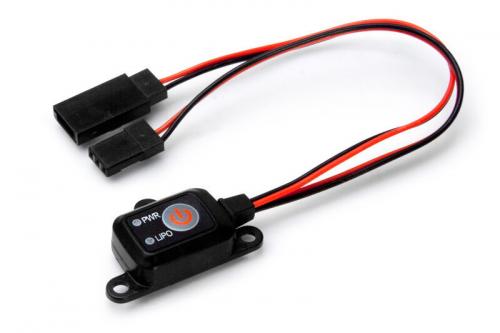

SkyRC Electronic Power Switch (SCH-SK-600054-01)

Brand: SkyRC

Part No: SCH-SK-600054-01

£11.39 RRP £11.99

In Stock: Usually ships same day

Collect Instore

Finance options available at checkout.

Request Price Match Ask a Question Write a Review

Frequently Bought With

Other items customers often buy with the SkyRC Electronic Power Switch

Sky RC Nitro Engine Heater Sky RC Nitro Engine Heater
£21.84
Nitro Starter Set - Includes Glowstarter and Charger, Fuel Bottle and Plug Spanner Nitro Starter Set - Includes Glowstarter and Charger, Fuel Bottle and Plug Spanner
£18.99
Lipo Rx/Tx Flat Pack 2400mAh - 7.6V (Fits Sanwa MT-4S) Lipo Rx/Tx Flat Pack 2400mAh - 7.6V (Fits Sanwa MT-4S)
£21.84
LRP LiPo 2700mAh 7.4v Receiver Pack - 2/3A Hump LRP LiPo 2700mAh 7.4v Receiver Pack - 2/3A Hump
£28.49
Savox SV0220MG+ HV Digital Metal Geared Servo - 8kg - 0.13s Savox SV0220MG+ HV Digital Metal Geared Servo - 8kg - 0.13s
£26.09
Sunpadow LiPo 2400mah 7.4V 5C Receiver Pack Sunpadow LiPo 2400mah 7.4V 5C Receiver Pack
£24.69
Power HD 1812MG Waterproof Metal Geared Servo - 18kg - 0.12s Power HD 1812MG Waterproof Metal Geared Servo - 18kg - 0.12s
£29.69
Spektrum SR315 DSMR 3 Channel Sport Receiver Spektrum SR315 DSMR 3 Channel Sport Receiver
£35.99
LRP LiPo 2500mAh 7.4v Receiver Pack - 2/3A Straight - 7.4V LRP LiPo 2500mAh 7.4v Receiver Pack - 2/3A Straight - 7.4V
£27.54
Prolux Glo-Gun - LiPo Glow Igniter With LCD Screen Prolux Glo-Gun - LiPo Glow Igniter With LCD Screen
£29.44
Centro O2MAX Dual Intake Air Filter Centro O2MAX Dual Intake Air Filter
£10.44
Futaba 3PV With R304SB Receiver Futaba 3PV With R304SB Receiver
£112.49

Description

The SkyRC Electronic Power Switch (SCH-SK-600054-01) is a compact, MCU-controlled on/off switch for radio controlled models. A simple push-button replaces traditional mechanical switches to help eliminate intermittent contact issues. The sealed plastic unit is lightweight and easy to install on a transponder mount or virtually anywhere using double-sided tape.

Key Features

  • MCU-controlled push-button switching to reduce mechanical contact problems
  • Sealed plastic housing for durability
  • Easy mounting to a transponder mount or with double-sided tape
  • Two interchangeable bottom covers included
  • LiPo mode with auto low-voltage cut-off to protect packs (can be disabled for NiMH/NiCad or when other safeguards are used)
  • Indicates remaining capacity and battery pack condition

Specifications

  • Input Voltage: 4–12V
  • Max Current: 10A
  • Battery Modes: NiMH/NiCad, LiPo
  • LiPo Low Voltage Protection: 6.2V
  • Operating Temperature: 0–50℃
  • Weight: ≤7g
Free Shipping

On UK Orders over £100
Happy to Help

Helpful, friendly advice
28 Day Returns

Easy returns process
Secure Payments

Secured by Stripe

SkyRC Electronic Power Switch Manuals & Guides

Manuals & Guides

How-To Guides & Articles

Specifications

SKYRC introduces the POWER SWITCH, a tiny MCU controlled on/off switch for your radio controlled model. A simple push button operates the switch meaning to eliminate the problems associated with intermittent contact of an ordinary mechanical switch.The sealed unit is plastic and can easily be
SKYRC introduces the POWER SWITCH, a tiny MCU controlled on/off switch for your radio controlled model. A simple push button operates the switch meaning to eliminate the problems associated with intermittent contact of an ordinary mechanical switch.The sealed unit is plastic and can easily be mounted to the transponder mount of your model or anywhere else you can mount it using double sided tape. (Two kinds of bottom covers are included, user can change the bottom cover.) The switch also features a LiPo mode, by turning this on, the switch unit will auto detect low LiPo voltage and cut off power to protect your LiPo from over dis-charging. This of course can be turned off if you have other safeguards in place or using NiMH/NiCad battery. Additionally, the power switch informs you about the remaining capacity and conditions of your battery pack.

Specifications

Input Voltage: 4-12V
Max. Current: 10 Amp
Battery Mode: 1. NiHM / NiCad 2. LiPo
Low Voltage Protection: 6.2V(LiPo)
Operating temperature: 0-50℃
Weight: ≤7g



Key Info:
  • Brand: SkyRC
  • Part No: SCH-SK-600054-01
  • Barcode: 5051294088729

Delivery & Returns

Standard Shipping

£3.95 to most of the UK

Express Shipping

£6.95 to most of the UK

Worldwide Shipping

Available at checkout

Customer Reviews

No specific product reviews yet, why not write one?
Write a Review
All reviews are subject to moderation

Questions & Answers

Real questions from real customers. Why not ask your own?
SkyRC Electronic Power Switch BRAND: SKYRC is this waterproof?
Jeremy Keith Whitehead / 22nd March 2023

No that is not classed as waterproof.

Steve @ Wheelspin Models
What are the max measurements for width, length and thickness. Also, is it ok to use a LifePo4 2S battery. Thanks, Ray
Ray / 23rd January 2022

size approx  35mm x 22mm x 5mm ( including mounting holes )

Yes you can use 2s lipo on this.

Si @ Wheelspin Models
SkyRC Electronic Power Switch BRAND: SKYRC PART NUMBER: SCH-SK-600054-01 I have got A toro ts 150 amp speed controller and I was wondering the switch above would replace it if not can you get a replacement switch for that speed controller
Scott / 2nd July 2021

I checked with Sky and they advise that yes, this should work :-)

Ben @ Wheelspin Models
Will this work on electric models? If so how is it wired up?
Martin / 15th May 2021

No this is designed for nitro models.

On electric models, best practice is to disconnect the battery to turn off the model

Ben @ Wheelspin Models
Can RC power switch be safely used on IC Models(four Stroke)
Brian Baxter / 7th February 2021

Yes it can work with any model

Ben @ Wheelspin Models
