Savox SV0220MG+ HV Digital Metal Geared Servo - 8kg - 0.13s
Brand: Savox
Part No: SAV-SV0220MG+
In Stock: Usually ships same day

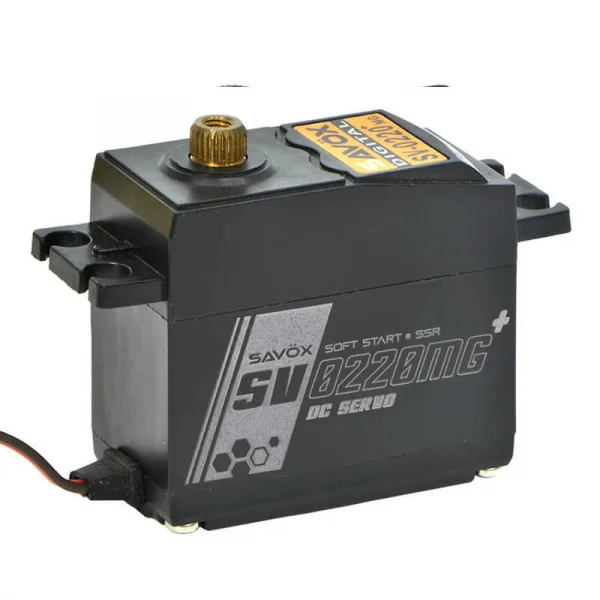

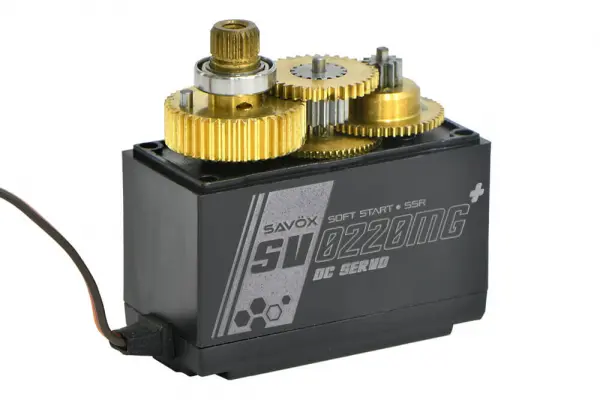

The Savox SV0220MG+ HV digital metal geared servo (part number SAV-SV0220MG+) delivers a balanced blend of speed and torque for standard-size applications. At 7.4V it offers 8 kg-cm of torque with a 0.13s transit time, backed by durable metal gears and a 25T spline output. Compact dimensions and a 59 g weight make it a solid fit where dependable, precise control is required. Suggested compatibility includes aircraft, helicopters, boats and on-road RC cars.
Key Specifications
- Speed: 0.16s/60° @ 6.0V; 0.13s/60° @ 7.4V
- Torque: 6.5 kg-cm @ 6.0V; 8.0 kg-cm @ 7.4V
- Dimensions: 40.3 x 20.2 x 37.0 mm
- Weight: 59 g
- Gears: Metal
- Bearing: 1 x Ball Bearing (1BB)
- Case: Plastic
- Output Spline: 25T
Plus Model Enhancements
- Soft Start Mode for smooth, controlled initial movement
- Sanwa SSR compatibility
Secured by Stripe
The Savox SV0220MG+ is a versatile high voltage digital servo suitable for aircraft, helis, boats and on-road cars.
Specifications- Dimensions(mm): 40.3 x 20.2 x 37.0
- Weight(g): 59
- Speed(@6.0V sec/60): .16
- Torque(@6.0V kg-cm): 6.5
- Speed(@7.4V sec/60): .13
- Torque(@7.4V kg-cm): 8
- Gear: Metal
- Bearing: 1BB
- Case: Plastic
- Servo Horn: 25 Tooth Spline
Easily compare RC servo models with our intuitive radar chart. This tool visualizes critical performance metrics, allowing you to assess and select the ideal servo for your needs. Whether you're prioritizing speed, durability, or precision, the Performance Radar helps you make informed decisions with confidence.
Savox servos are renowned for their versatility, catering to a wide range of applications, from high-speed racing to heavy-duty off-road tasks. Engineered for reliability and performance, they deliver the perfect balance of power, precision, and durability, making them a trusted choice for RC enthusiasts worldwide.
New Savox and Plus / "+" Models: feature a new Soft Start Mode and Sanwa SSR compatibility.
Unsure which servo you need for your model?
Visit our Savox Servo Soultion Centre and find the ideal servo for your needs.
Key Info:
- Brand: Savox
- Part No: SAV-SV0220MG+
- Barcode: 4710006994550
- Max Voltage: 7.4v+ (LiPo)
- Gear Material: Metal
