Smart Powerstage Air Bundle: G2 2200mAh 3S LiPo IC3 And S155 C
Brand: Spektrum
Part No: SPMXPSA400
Out Of Stock

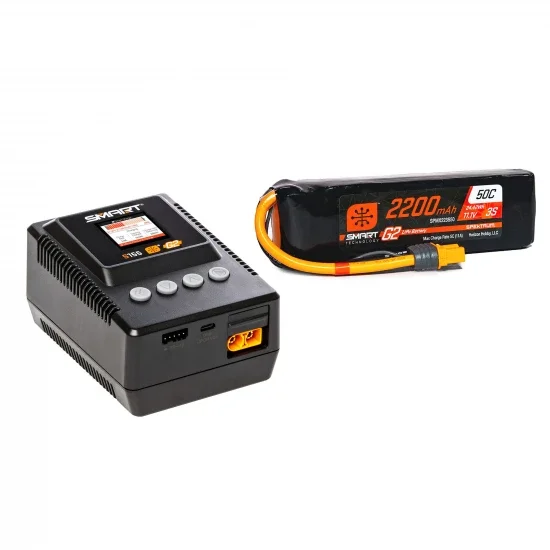

Request Stock NotificationThe Spektrum Smart Powerstage Air Bundle (SPMXPSA400) pairs the S155 55W AC Smart G2 charger with a Spektrum 11.1V 2200mAh 3S 50C Smart G2 LiPo featuring an IC3 connector. It’s a convenient, user-friendly power and charging solution designed for air applications, combining Smart safety, simplicity and performance.
The S155 Smart G2 charger recognises connected Smart batteries and starts the correct charge parameters automatically with Auto Charge. For Smart G2 packs, charging and balancing are handled through a single lead — no separate balance connector required. A colour LCD provides clear status, improved menus and a real-time countdown to full charge. Firmware updates are simple via the front USB port. The AC input (100–240V) and IC3/IC5 output ports make it easy to use at home or the field.
The included 3S 2200mAh 50C Smart G2 LiPo delivers dependable power with integrated balancing and Smart protection features. Supplied with an IC3 connector and 12 AWG leads, it supports standard 1C (2.2A) charging and up to 5C maximum charge rate.
What’s Included
- Spektrum S155 55W AC G2 Smart Charger (SPMXC2050)
- Spektrum 11.1V 2200mAh 3S 50C Smart G2 LiPo Battery: IC3 (SPMX223S50)
Key Features
- Smart G2 technology charges and balances through one connection — no separate balance lead
- Auto Charge detects and sets safe, correct parameters for Smart batteries

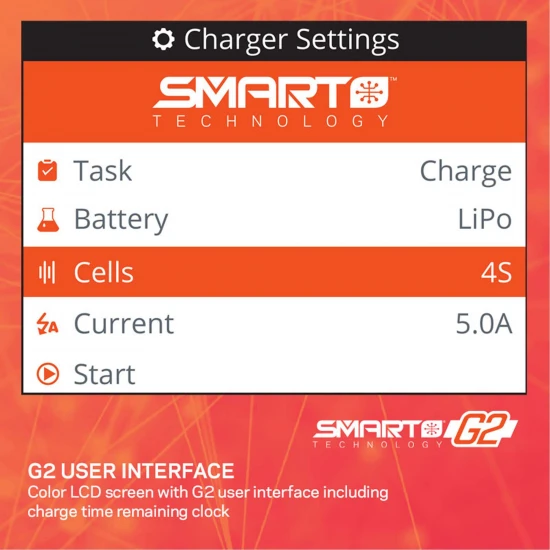

- Colour LCD with intuitive menus and real-time charge countdown

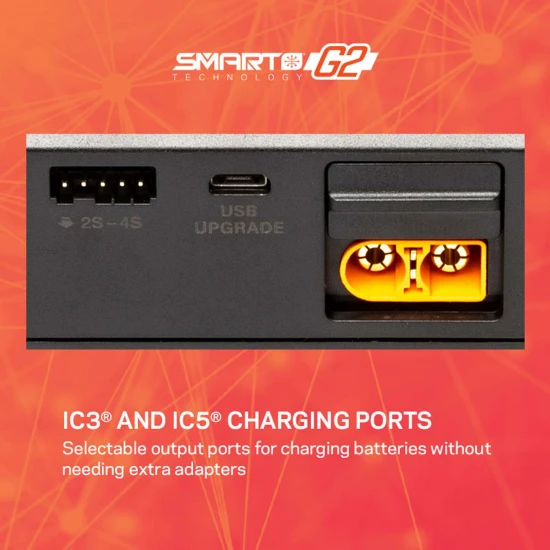

- IC3 and IC5 output ports — no separate adapters required for most Smart packs
- Comprehensive protections: reverse polarity, short circuit, over current and thermal

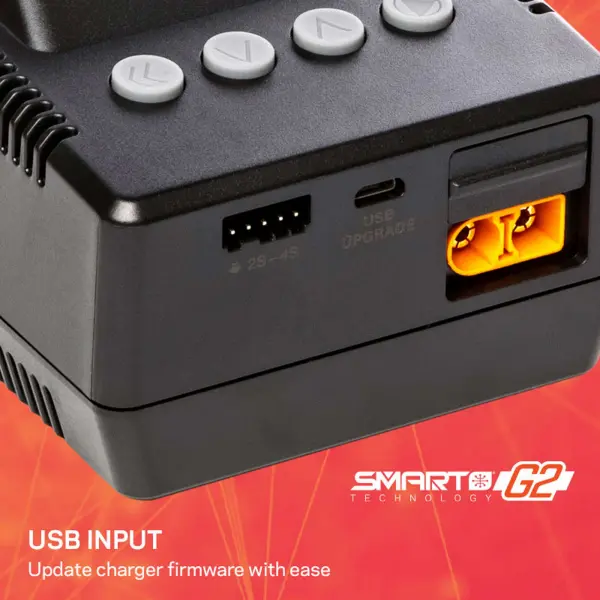

- USB port for easy firmware updates
- Suggested compatibility: RC air models requiring a 3S 2200mAh LiPo with IC3 connector
Key Specifications
- Charger power: 55W AC; input 100–240V, 50–60Hz
- Battery: 3S LiPo (11.1V), 2200mAh, 50C, IC3
- Charge rates: standard 1C (2.2A), up to 5C maximum
- Supported chemistries (charger): LiPo/LiFe/Li-Ion/LiHV (1–4S), NiMH/NiCd (1–12S)
- Integrated balancing: internal balancer and adapter (G2 Smart)
- Display: colour LCD; single output port
Secured by Stripe
The Spektrum™ S155 charger makes advanced, user-friendly Smart G2 charging technology affordable for any RC hobbyist. It's a particularly fine choice for cost-conscious new pilots who want the safe and simple operation that only a Smart charger can provide.
Compatible with 4S LiPo, LiFe, Li-Ion, or LiHV batteries as well as 1-12S NiMH and NiCd packs, the 55-watt S155 charger can be used with all popular RC battery types (though only Smart batteries take full advantage of the charger's innovative features). It includes ports for IC3® and IC5® connectors, so no separate adapters are needed to charge most Smart batteries. Generation 2 Smart Technology enables the S155 to both charge and balance Smart G2 batteries using one simple connection. No separate balance lead is needed. When connected to a Smart battery, its Auto Charge feature recognizes the correct charging parameters instantly and begins safe, proper charging — automatically.
In order to provide the most hassle-free charging experience, the Spektrum™ S155 Smart G2 AC Charger includes a color LCD screen with improved menus, icons, and navigation tools. Its intuitive interface allows users to monitor charging progress and make setting changes with ease. An on-screen clock counts down the minutes in real time until your Smart battery is fully charged and ready to use.
When it's time to update the charger firmware, that's easy, too. A USB input port is conveniently located on the front of the case. No special cables are required.
Other handy features of the Spektrum™ S155 Smart G2 AC Charger include a sleep mode and detachable AC power cord. Enjoy your hobby more with the benefits of advanced, user-friendly Smart G2 charging technology — now available at a price to please any modeler!
Smart Powerstage Air Bundle: G2 2200mAh 3S LiPo IC3 And S155 C Specfications:
- Application: Air
- Auto Storage: Yes
- Battery: Included
- Battery Balance Connector: G2 Smart
- Battery Type: LiPo (3.7V per cell)
- Battery Voltage: 11.1V
- Capacity: 2200mAh
- Charge Protection Circuitry: Yes
- Connector Type: IC3
- Discharge: 50C
- Display: LCD
- Hard Case: No
- Input Voltage: 100-240V, 50-60Hz
- Integrated Balancing: Yes - Internal Balancer & Internal Adapter
- LiPo Compatibility: 1S,2S,3S,4S
- Low Input Voltage Protection: Yes
- Maximum Charge Rate: 5C
- Maximum Continuous Discharge Rate: 50C
- Normal/Standard Charge Current: 2.2A
- Normal/Standard Charge Rate: 1C
- Number of Cells: 3
- Number of Output Ports: 1
- Output Connector: IC3,IC5
- Over Current Protection: Yes
- Part Type: Electronics
- PC Connectivity: Yes
- Peak Detection: Yes
- Power (watts): 50-99W
- Power Source: AC
- Product Height: 2.4"
- Product Length: 4.4"
- Product Weight: 12.2 oz (345 g)
- Product Width: 2.4"
- Programmable: Yes
- Prop 65: California Residents Prop 65 WARNINGS.
- Reverse Polarity Protection: Yes
- Roar Approved: No
- Selectable Charge Rate: Yes
- Short Circuit Protection: Yes
- Software Updates: Yes
- Technology: Smart
- Thermal Protection: Yes
- USB Power out: No
- Voltage Meter: Yes
- Watt Hours: 24.42
- Wire Gauge: 12 AWG
- (1) Spektrum S155 55W AC G2 Smart Charger (SPMXC2050)
- (1) Spektrum™ 11.1V 2200mAh 3S 50C Smart G2 LiPo Battery: IC3 (SPMX223S50)
Key Info:
- Brand: Spektrum
- Part No: SPMXPSA400
- Barcode: 0660132640149
- Fitment: Option Part
