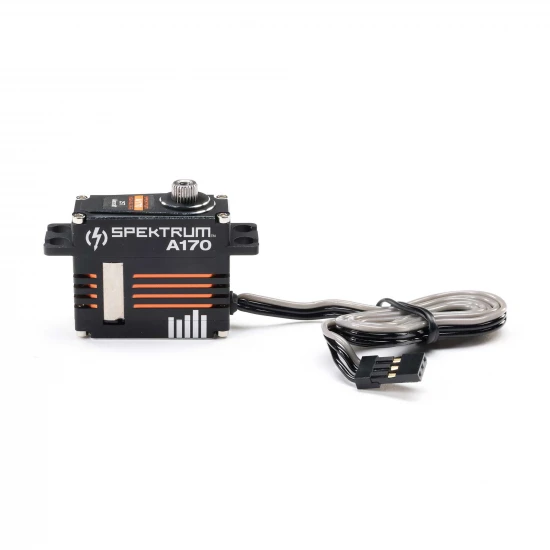

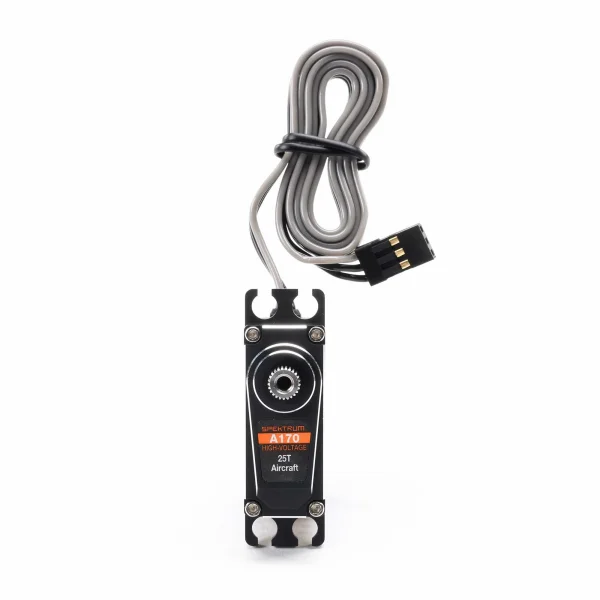

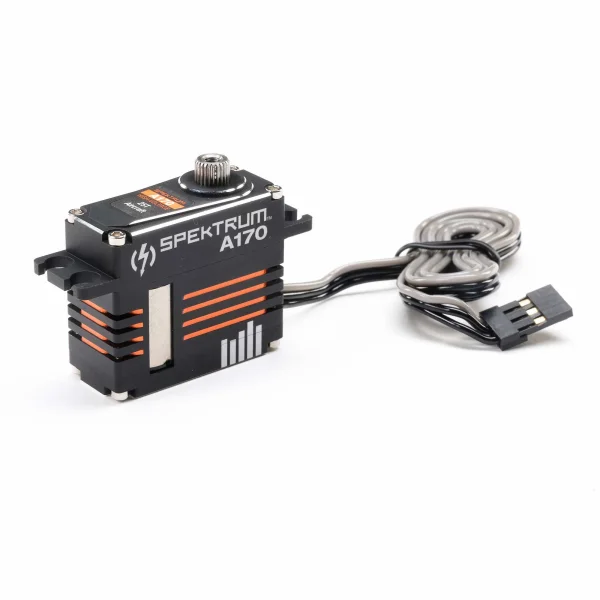

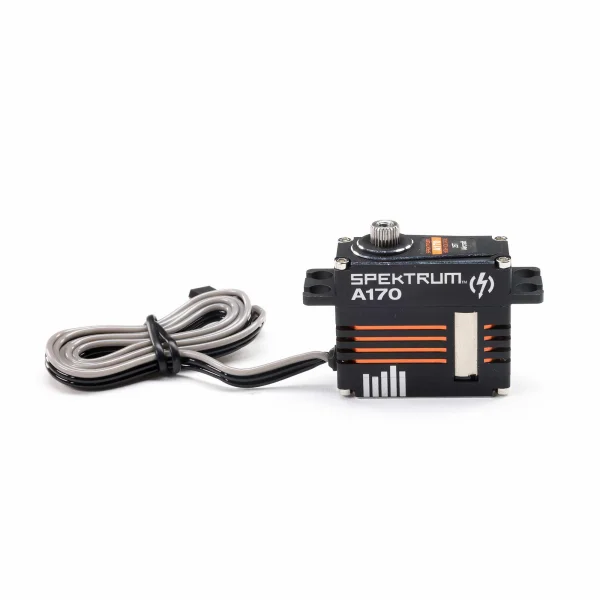

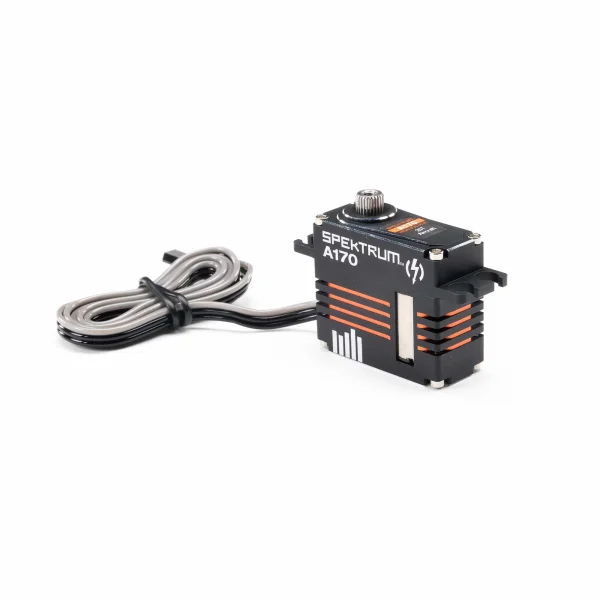

Spektrum A170 High Voltage Digital Mini Servo SPM-1096

The Spektrum A170 High Voltage High Torque High Speed Metal Geared Digital Mini Servo (SPM-1096) is a digital mini servo for aircraft. It combines a metal gear train with a brushed motor and supports input voltages from 4.8V to 8.4V. The servo has a universal connector and a 25-tooth spline, making these key details useful when checking a suggested aircraft installation.

Torque varies with the applied voltage, reaching 7.92 kg-cm at 6V, 10.8 kg-cm at 7.4V and 12.2 kg-cm at 8.4V. The stated maximum speed figures are 0.11 at 6V, 0.09 at 7.4V and 0.08 at 8.4V. This is a non-programmable servo and it is not water-resistant, so the installation should reflect those specifications.

Features

The A170 is supplied as a mini-sized digital aircraft servo with a metal gear type and high-voltage operation. Its 45g weight and 35.6 x 15.0 x 30.8mm dimensions provide the main physical details for planning an installation. The included mounting hardware and servo arms support fitting the unit and setting up the control linkage.

Specifications

• Application: Airplane
• Input voltage: 4.8V-8.4V
• Gear type: Metal
• Motor type: Brushed
• Servo type: Digital mini
• Spline count: 25 tooth
• Dimensions: 35.6 x 15.0 x 30.8mm
• Product weight: 45g

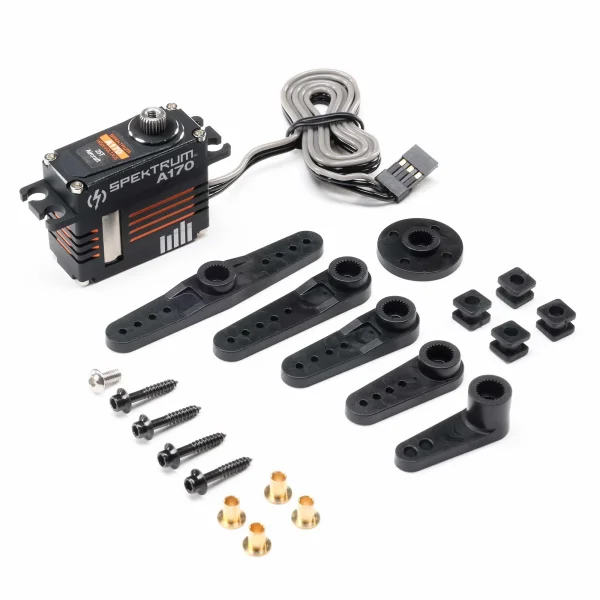

What's Included

The box contains the A170 servo together with the parts needed for mounting and connecting the servo arm:

• A170 mini digital HV high torque high-speed metal gear aircraft servo
• Plastic servo arms in various sizes
• Mounting grommets and eyelets with hardware
