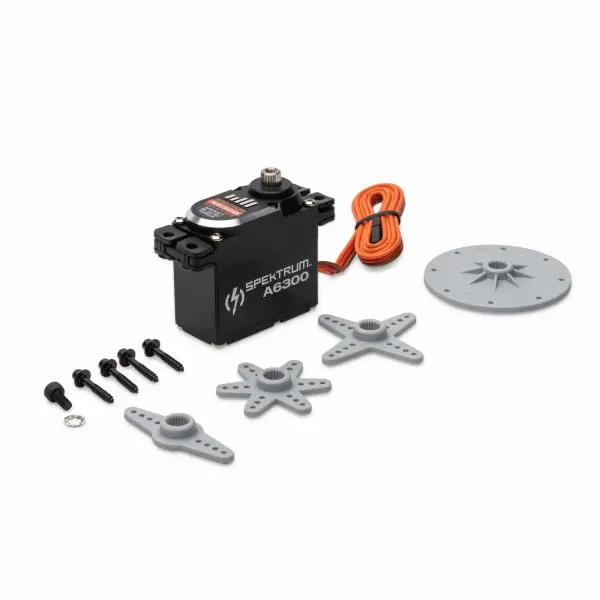

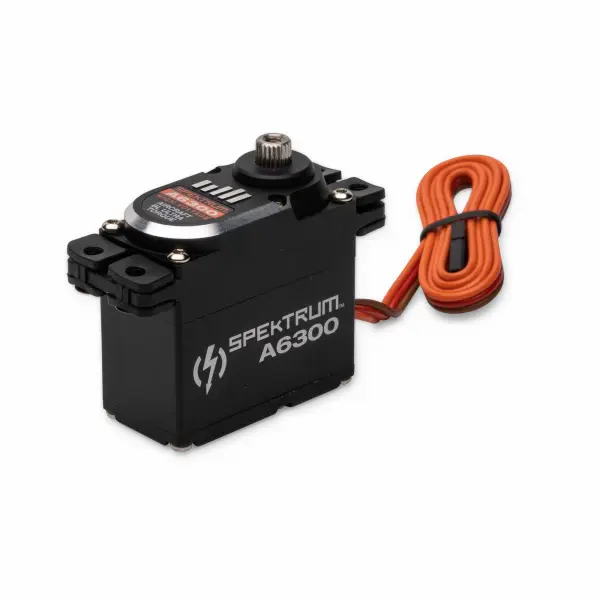

Spektrum A6300 HV Ultra Torque Brushless Aircraft Servo MG
Brand: Spektrum
Part No: SPMSA6300
Supplier Stock: Expected May 23rd
Request Stock NotificationThe Spektrum A6300 HV Ultra Torque Brushless Aircraft Servo MG (part SPMSA6300) delivers class-leading performance for demanding aircraft applications. With a high-voltage 6.0–8.4V operating range, up to 530 oz-in (38.20 kg-cm) of torque and a rapid 0.10 sec/60° transit time at 8.4V, this standard-size servo pairs a durable brushless motor with a tightly meshed all-metal gear train for consistent, slop-free control. An all-aluminium case aids heat dissipation, while dual ball bearings keep operation smooth and efficient.
Engineered for reliability as well as power, the A6300 adds thoughtful details such as soft-start, over-current and temperature protection, an initialisation tone, and an integrated failsafe that holds the last known position if signal is lost while power is maintained. Its universal connector, 18" (457 mm) 22 AWG lead and 23-tooth spline make installation straightforward across a wide range of air models.
Key Features
- High Voltage (HV) capable (6.0–8.4V input range)
- Outstanding torque and speed in a standard servo size (530 oz-in and 0.10 sec/60° @ 8.4V)
- Durable, long-lasting brushless motor
- Low-wear, tightly meshed all-metal gear train
- Dual bearing supported drive train for smooth operation
- Aluminium servo case helps keep operating temperatures low
- Soft start helps prevent component and airframe damage during unintentional initialisations
- Over-current and temperature protection
- Helpful initialisation start tone indicates when the servo is ready
- Integrated servo failsafe holds last known position if signal is lost and power is maintained
- Operating frequency: 200 Hz to 333 Hz
Specifications
- Servo Type: Digital, brushless
- Operating Voltage: 6.0–8.4V (HV)
- Maximum Speed: 0.14 sec/60° @ 6.0V; 0.11 sec/60° @ 7.4V; 0.10 sec/60° @ 8.4V
- Maximum Torque: 378.37 oz-in (27.26 kg-cm) @ 6.0V; 467.06 oz-in (33.65 kg-cm) @ 7.4V; 530.22 oz-in (38.20 kg-cm) @ 8.4V
- Deadband: 2 µs, 3 µs
- Frequency: 200–333 Hz
- Size Category: Standard
- Spline Count: 23-tooth
- Bearing: Dual ball bearing
- Gear Type: Metal
- Connector Type: Universal
- Wire Gauge/Length: 22 AWG, 18" (457 mm)
- Dimensions (L×W×H): 1.57" × 0.79" × 1.49" (40 × 20 × 38 mm)
- Weight: 2.81 oz (79.8 g)
- Water-Resistant: No
- Programmable: No
- Application: Air/Airplane
Applications & Suggested Compatibility
- Giant-scale models
- 3D aerobatic aircraft
- Jets
- Any application requiring very high torque and strong holding power
Secured by Stripe
The A6300 is the first in an evolving line of Spektrum brushless servos that provide leading edge performance with uncompromised reliability. Boasting an extremely powerful 530 oz-in torque and a lightning fast .10 sec/60° transit time @8.4v, the A6300 will make RC enthusiasts take a second look at Spektrum Servos.
The A6300 features a top of the line brushless drive train that is recognized as being exceptionally strong and reliable. This durability is expertly matched with a low wear, all metal gear train that is virtually slop free. All housed in a heatsinking, all-aluminum case with preinstalled eyelets and grommets, which makes mounting these servos quick and easy.
The Spektrum A6300 uses these features as a foundation to produce a powerful, consistent, yet efficient servo that will prove to be in a class of its own. It is these awesome capabilities that make the A6300 a fantastic choice for giant-scale models, 3D aerobatics, jets or any application where massive amounts of torques and holding power are a must.
Spektrum A6300 HV Ultra Torque Brushless Aircraft Servo MG Features:- High Voltage (HV) capable (6.0-8.4v input range)
- Outstanding torque and speed in a standard servo size (530 oz-in and .10 sec/60° @8.4v)
- Durable and long lasting brushless motor
- Low wear and tightly meshed all metal gear train
- Dual bearing supported drive train helps maximize smooth operation
- Aluminum servo case helps keep operating temperatures low
- Soft start helps prevent component and airframe damage during un-intentional initializations
- Over Current and Temperature protection
- Helpful initialization start tone lets pilot know when the servo is ready
- Integrated servo failsafe holds last known position if signal is lost and power is maintained
- Frequency : 200hz to 333hz
Spektrum A6300 HV Ultra Torque Brushless Aircraft Servo MG Specfications:
- Connector Wire Length: 18" (457 mm)
- Product Width: 0.79" (20 mm)
- Deadband: 2µs, 3µs
- Input Voltage: 6.0-8.4V
- Product Application: Air
- Product Height: 1.49" (38 mm)
- Servo Type: Digital
- Connector Type: Universal
- Maximum Servo Speed: 0.14 sec/60 deg @ 6.0V; 0.11 sec/60 deg @7.4V; 0.10 sec/60 deg @ 8.4V
- Product Length: 1.57" (40 mm)
- Motor Type: Brushless
- Servo Operating Voltage: 6.0 - 8.4V (HV)
- Application: Airplane
- Product Weight: 2.81oz (79.80g)
- Spline Count: 23 - Tooth
- Water-Resistant: No
- Programmable: No
- Servo Size Category: Standard
- Bearing: Dual Ball Bearing
- Bushing Or Bearing: Bearing
- Gear Type: Metal
- Wire Gauge: 22 AWG
- Maximum Servo Torque: 378.37 oz-in (27.26 kg-cm) @ 6.0V; 467.06 oz-in (33.65 kg-cm) @ 7.4V; 530.22 oz-in (38.20 kg-cm) @ 8.4V
Key Info:
- Brand: Spektrum
- Part No: SPMSA6300
- Barcode: 605482087732
- Max Voltage: 7.4v+ (LiPo)
- Gear Material: Metal
- Fitment: Option Part
