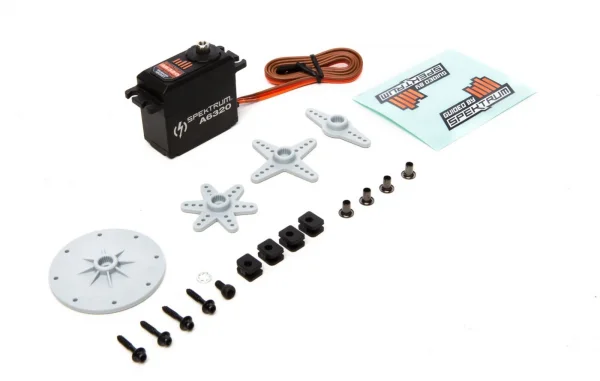

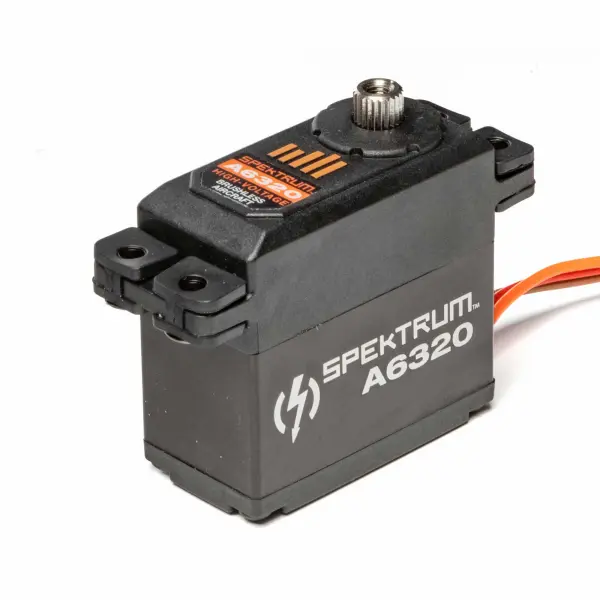

Spektrum A6320 Brushless HV Servo
Brand: Spektrum
Part No: SPMSA6320
Expected Mon 9 Nov
Request Stock NotificationFinance options available at checkout.
Fits These Models (14)
![Hangar 9 Aermacchi MB-339 60-86N Scale Military Turbine Jet ARF [COLLECTION SG14 1QN ONLY]](https://imgr2.wheelspinmodels.co.uk/140/HAN3390B-75bb.webp)
Hangar 9 Aermacchi MB-339 60-86N Scale Military Turbine Jet ARF [COLLECTION SG14 1QN ONLY]![Hangar 9 Cubcrafters Carbon Cub FX-3 [COLLECTION SG14 1QN ONLY]](https://imgr2.wheelspinmodels.co.uk/140/HAN5280-217b.webp)
Hangar 9 Cubcrafters Carbon Cub FX-3 [COLLECTION SG14 1QN ONLY]![Hangar 9 CubCrafters XCub 60cc ARF [COLLECTION SG14 1QN ONLY]](https://imgr2.wheelspinmodels.co.uk/140/HAN5260B_2-ce16.webp)
Hangar 9 CubCrafters XCub 60cc ARF [COLLECTION SG14 1QN ONLY]![Hangar 9 Hawk/T-45 140-160N ARF with Retract Set [COLLECTION SG14 1QN ONLY]](https://imgr2.wheelspinmodels.co.uk/140/HAN13750CR-434d.webp)
Hangar 9 Hawk/T-45 140-160N ARF with Retract Set [COLLECTION SG14 1QN ONLY]- Hangar 9 Hawk/T-45 140-160N Turbine Jet ARF [COLLECTION SG14 1QN ONLY]
![Hangar 9 OV-10 Bronco 30cc ARF With Landing Gear Set [COLLECTION SG14 1QN ONLY]](https://imgr2.wheelspinmodels.co.uk/140/HAN4670CR_0-8e9d.webp)
Hangar 9 OV-10 Bronco 30cc ARF With Landing Gear Set [COLLECTION SG14 1QN ONLY]![Hangar 9 P-51D Mustang 60cc ARF [COLLECTION SG14 1QN ONLY]](https://imgr2.wheelspinmodels.co.uk/140/HAN4770-b33a.webp)
Hangar 9 P-51D Mustang 60cc ARF [COLLECTION SG14 1QN ONLY]
Hangar 9 Pitts S-2B 50-60cc ARF
Hangar 9 Ultra Stick 10cc ARF
Hangar 9 Ultra Stick 30cc ARF
Hangar 9 Valiant 10cc ARF![Viper 100N Turbine Jet ARF with Retract Set [COLLECTION SG14 1QN ONLY]](https://imgr2.wheelspinmodels.co.uk/140/HAN-3625CR-accc.webp)
Viper 100N Turbine Jet ARF with Retract Set [COLLECTION SG14 1QN ONLY]![Viper 100N Turbine Jet ARF [COLLECTION SG14 1QN ONLY]](https://imgr2.wheelspinmodels.co.uk/140/HAN-3625ARF-7bae.webp)
Viper 100N Turbine Jet ARF [COLLECTION SG14 1QN ONLY]
Hangar 9 OV-10 Bronco 30cc ARF
Customers Also Buy
Popular with customers who buy products like the Spektrum A6320 Ultra Torque High Speed Metal BL HV Servo
Description
The Spektrum A6320 Ultra Torque High Speed Metal BL HV Servo (SPMSA6320) delivers dependable power and digital precision for demanding aircraft applications. Its high-voltage, brushless architecture pairs finely tuned electronics and software with a robust metal gear train and an aluminium centre case, providing ultra-smooth operation, excellent efficiency and consistent performance under load.
Built for serious pilots, the A6320 balances speed and torque exceptionally well. At 8.4V it delivers up to 270 oz-in with a rapid 0.10 sec/60° transit, while advanced protection for over-current and over-temperature adds peace of mind. Dual ball bearings and a tightly meshed, low-wear all-metal gear train ensure long service life. Features such as soft-start, an audible initialisation tone and an integrated signal-hold failsafe round out a professional-grade specification.
Key Features
- High-voltage capable: 6.0–8.4V input range
- Outstanding torque and speed in a standard-size case (270 oz-in and 0.10 sec/60° @ 8.4V)
- Durable, long-lasting brushless motor with finely tuned digital control
- All-metal, low-wear gear train with dual ball bearing support
- Aluminium centre case for rapid heat dissipation
- Soft-start helps prevent airframe and linkage stress on initialisation
- Over-current and over-temperature protection
- Helpful start-up tone indicates readiness
- Integrated servo failsafe holds last position if signal is lost (power maintained)
- Operating frequency: 50–400 Hz
Specifications
- Servo type: Digital, brushless
- Operating voltage: 6.0–8.4V (HV)
- Maximum torque: 150.0 oz-in (10.8 kg-cm) @ 6.0V; 250.2 oz-in (18.0 kg-cm) @ 7.4V; 270.1 oz-in (19.5 kg-cm) @ 8.4V
- Maximum speed: 0.11 sec/60° @ 6.0V; 0.10 sec/60° @ 7.4V; 0.10 sec/60° @ 8.4V
- Deadband: 3 µs
- Size category: Standard; Application: Airplane

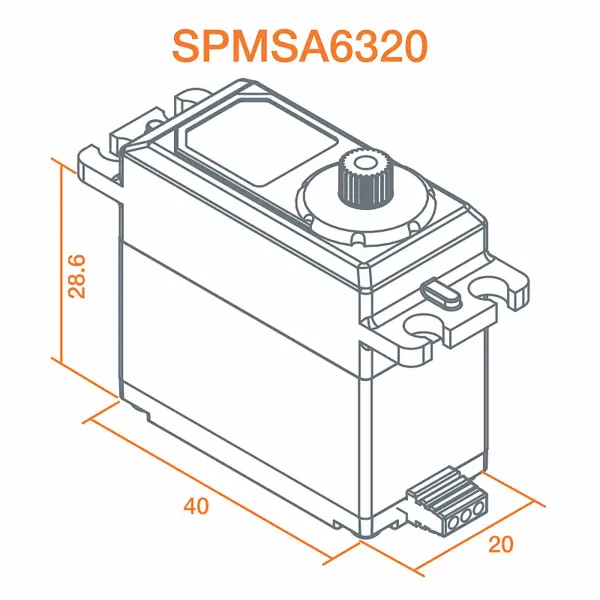

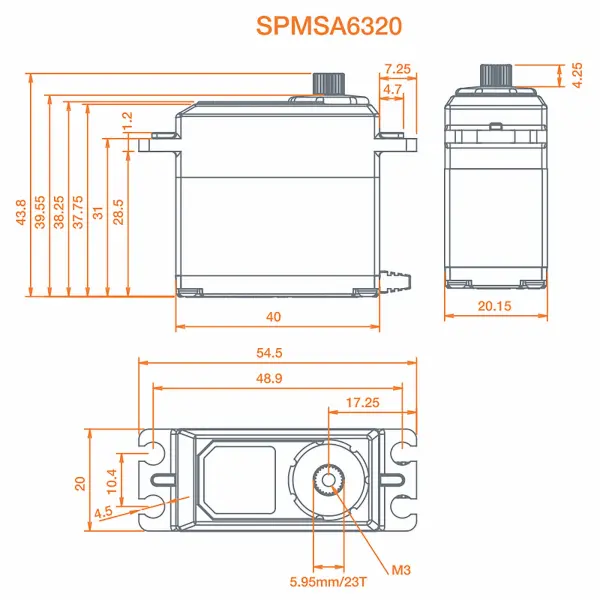

- Dimensions (L×W×H): 40 × 20 × 38 mm (1.57 × 0.79 × 1.49 in)
- Weight: 62 g (2.2 oz)
- Gears: Metal; Bearings: Dual ball
- Spline: 23-tooth
- Connector: Universal; Wire gauge: 22 AWG
- Programmable: No; Water-resistant: No
Suggested Compatibility & Uses
Based on the manufacturer’s guidance, the A6320 is suitable for high-demand aircraft applications, with suggested compatibility including 30–50cc size 3D aerobatic models, giant-scale aircraft and high-speed jets where high torque, fast transit speed and robust reliability are required.
Secured by Stripe
Spektrum A6320 Ultra Torque High Speed Metal BL HV Servo Manuals & Guides
Manuals & Guides
Specifications
Spektrum™ high-voltage, brushless servos deliver dependable power and digital precision with amazing efficiency. Finely tuned electronics and software combine with powerful brushless motor technology to offer ultra-smooth performance more efficiently than servos with conventional motors. The aluminum center section allows any heat within the servo to dissipate rapidly while high-strength metal gears and high-impact polymer case components deliver a precision instrument that’s hassle-free.
The Spektrum A6320 uses this solid foundation to achieve an outstanding balance of power, speed and value, plus the peace-of-mind over-current and over-temperature protection offers. It’s a brilliant feature combination that makes this servo an outstanding choice for applications such as 30-50cc size 3D aerobatics, giant-scale or high-speed jets.
*Torque and Transit @ 8.4V
- High Voltage (HV) capable (6.0-8.4v input range)
- Outstanding torque and speed in a standard servo size (270 oz-in and .10 sec/60° @8.4v)
- Durable and long lasting brushless motor
- Low wear and tightly meshed all metal gear train
- Dual bearing supported drive train helps maximize smooth operation
- Aluminum center servo case helps keep operating temperatures low
- Soft start helps prevent component and airframe damage during un-intentional initializations
- Over Current and Temperature protection
- Helpful initialization start tone lets pilot know when the servo is ready
- Integrated servo failsafe holds last known position if signal is lost and power is maintained
- Frequency : 50-400hz
Spektrum A6320 Ultra Torque High Speed Metal BL HV Servo Specfications:
- Bearing: Dual Ball Bearing
- Bushing Or Bearing: Bearing
- Gear Type: Metal
- Wire Gauge: 22 AWG
- Motor Type: Brushless
- Servo Operating Voltage: 6.0 - 8.4V (HV)
- Product Width: 0.79" (20 mm)
- Deadband: 3µs
- Product Application: Air
- Product Height: 1.49" (38 mm)
- Servo Type: Digital
- Connector Type: Universal
- Programmable: No
- Servo Size Category: Standard
- Maximum Servo Torque: 150.0 oz-in (10.8 kg-cm) @ 6.0V; 250.2 oz-in (18.0 kg-cm) @ 7.4V; 270.1 oz-in (19.5 kg-cm) @ 8.4V
- Application: Airplane
- Product Weight: 2.2 oz (62 g)
- Spline Count: 23 - Tooth
- Water-Resistant: No
- Maximum Servo Speed: 0.11 sec/60 deg @ 6.0V; 0.10 sec/60 deg @7.4V; 0.10 sec/60 deg @ 8.4V
- Product Length: 1.57" (40 mm)
Key Info:
- Brand: Spektrum
- Part No: SPMSA6320
- Barcode: 0605482831892
- Max Voltage: 7.4v+ (LiPo)
- Gear Material: Metal
- Fitment: Option Part
- Fitment: Standard Part
