Spektrum S6285 1:8 High Voltage High Torque Metal Gear Race Servo

The Spektrum S6285 1:8 High Voltage High Torque Metal Gear Race Servo (SPMSS6285) delivers the premium power, precision and durability demanded by serious RC drivers. Compatible with up to 8.4V input, it combines a robust all‑aluminium case for efficient heat dissipation with a tightly meshed metal gear train designed for low wear and smooth operation. Producing up to 496oz‑in of torque at 8.4V, it is well suited to 1:8 off‑road use and equally capable in crawling and bashing where maximum torque and holding power are needed. A removable servo lead allows you to choose different cable lengths to suit your vehicle layout.

Key Features

• High‑voltage operation up to 8.4V
• Up to 496oz‑in (35.7kg‑cm) torque at 8.4V
• All‑aluminium case for improved heat dissipation
• Precision metal gear train for tight mesh and smooth running
• Digital servo control
• Water‑resistant design
• Removable servo lead for selectable lengths
• Universal connector
• 23‑tooth output spline
• Standard size category

Specifications

• Servo Operating Voltage: 6.0 – 8.4V (HV)
• Torque: 496oz‑in (35.7kg‑cm) at 8.4V
• Connector Type: Universal
• Spline Count: 23‑tooth
• Gear Type: Metal
• Servo Type: Digital
• Water‑Resistant: Yes

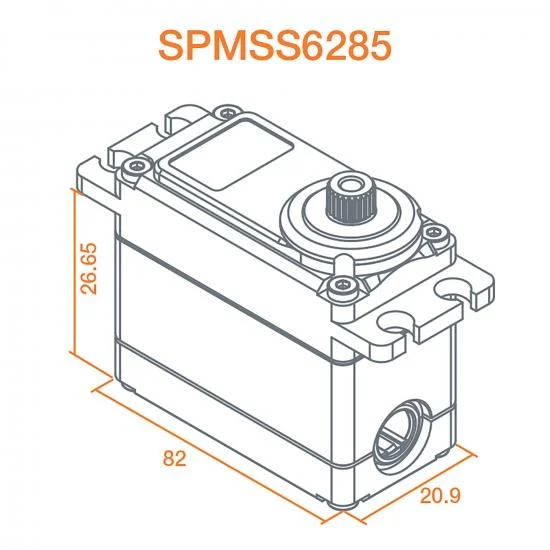

• Dimensions (L×W×H): 3.22" × 0.82" × 1.04" (82 × 21 × 26 mm)

Suggested Compatibility

• 1:8 off‑road race buggies and truggies
• Crawling and bashing platforms that demand high torque and strong holding power
• Vehicles requiring a standard‑size, 23T‑spline servo with a universal connector
