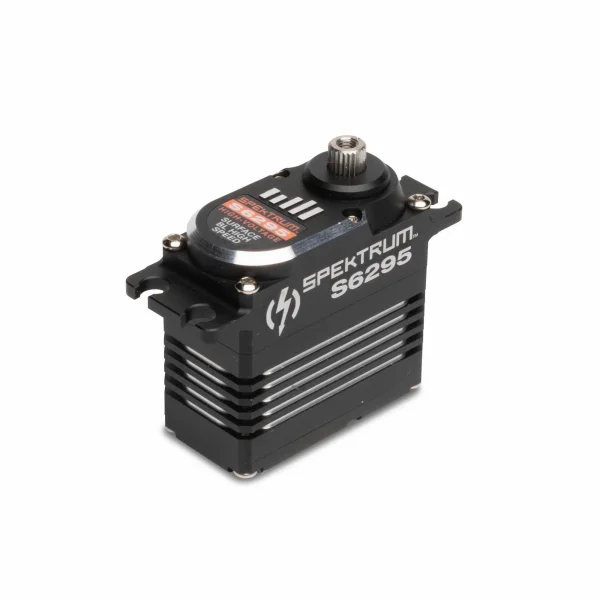

Spektrum S6295 1:8 HV High Speed High Torque Brushless Metal Gear Servo

The Spektrum S6295 is a high-voltage brushless digital servo designed for demanding control in 1/8-scale applications. Housed in a sleek black and silver anodised metal case and built around a hardened steel gear train, it delivers ultra-fast response and serious holding power. At 8.4V it offers a 0.062s transit speed and up to 30kg-cm (416oz-in) of torque, with water-resistant construction and a 23T output spline. Part number SPMSS6295.

A precision-engineered gear mesh minimises wear while Soft-Start reduces stress on steering components during start-up. A removable standard-size servo connector simplifies lead swaps, and advanced failsafe and protection features add peace of mind for racing and tough terrain.

Key Features

• Sleek black and silver anodized metal case
• Brushless power and reliability
• High Voltage (HV) Capable (6.0V-8.4V)
• 23T output Spline
• Water Resistant
• Hardened steel gears
• Precision engineered gear train for tight and low wear mesh
• Ultra-fast transit speed (0.062sec at 8.4V)
• Impressive torque (30kg-cm / 416oz-in at 8.4V)
• Engineered to excel in 1/8th Scale Racers, RC Crawlers and Scalers
• Removable standard size servo connector for easy lead swaps
• Soft-Start puts less strain on steering components during start up
• Advanced failsafe and protections

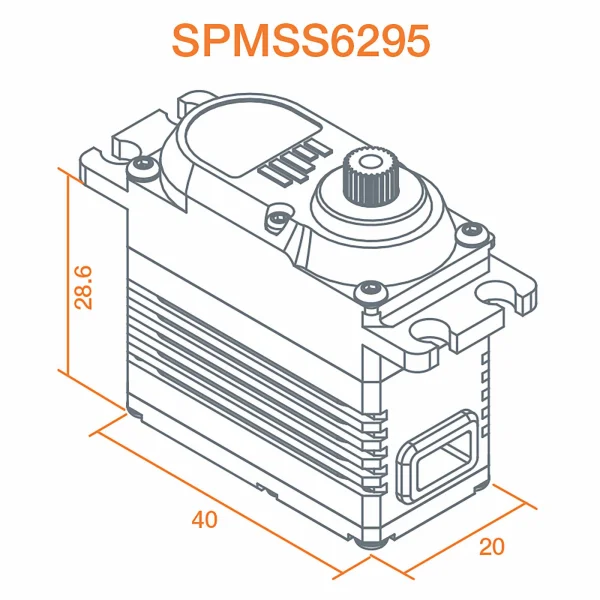

Specifications

• Product Width: 0.78" (20 mm)
• Torque: 416oz-in (30kg-cm) at 8.4V
• Servo Size Category: Standard
• Product Height: 1.12" (28 mm)
• Servo Type: Digital
• Spline Count: 23 - Tooth
• Water-Resistant: Yes
• Connector Type: Universal
• Product Length: 1.57" (40 mm)
• Gear Type: Metal
• Servo Operating Voltage: 6.0 - 8.4V (HV)

Suggested Compatibility

• 1/8th scale racers
• RC crawlers
• RC scalers
