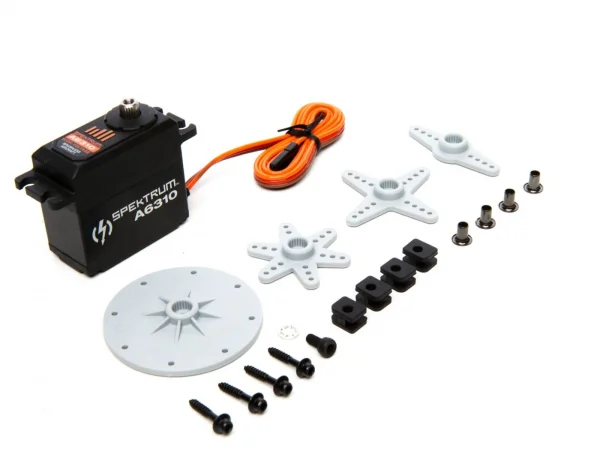

SpektrumT A6310 Ultra Torque High Speed Metal BL HV Servo

Spektrum™ high-voltage, brushless servos deliver dependable power and digital precision with amazing efficiency. Finely tuned electronics and software combine with powerful brushless motor technology to offer ultra-smooth performance more efficiently than servos with conventional motors. The aluminum center section allows any heat within the servo to dissipate rapidly while high-strength metal gears and high-impact polymer case components deliver a precision instrument that’s hassle-free.

The Spektrum A6310 uses this solid foundation, plus additional inner support, to achieve an outstanding balance of power, durability and value, in addition to the peace-of-mind over-current and over-temperature protection offers. It’s a brilliant feature combination that makes this servo an outstanding choice for 60-120cc Aerobatic models and most sport flying Giant Scale models.

*Torque and Transit @ 8.4V

• High Voltage (HV) capable (6.0-8.4v input range)
• Outstanding torque and speed in a standard servo size (350 oz-in and .10 sec/60° @8.4v)
• Durable and long lasting brushless motor
• Low wear and tightly meshed all metal gear train
• Dual bearing supported drive train helps maximize smooth operation
• Aluminum center servo case helps keep operating temperatures low
• Soft start helps prevent component and airframe damage during un-intentional initializations
• Over Current and Temperature protection
• Helpful initialization start tone lets pilot know when the servo is ready
• Integrated servo failsafe holds last known position if signal is lost and power is maintained
• Frequency : 50-400hz

SpektrumT A6310 Ultra Torque High Speed Metal BL HV Servo Specfications:

• Connector Type: Universal
• Maximum Servo Speed: 0.12 sec/60 deg @ 6.0V; 0.11 sec/60 deg @7.4V; 0.10 sec/60 deg @ 8.4V

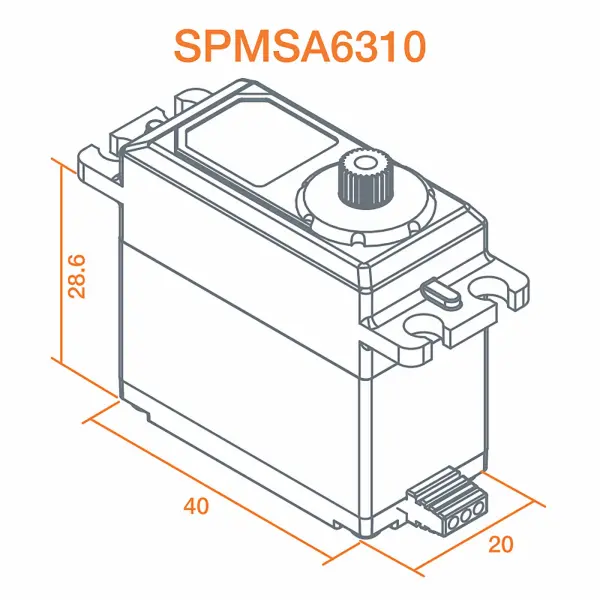

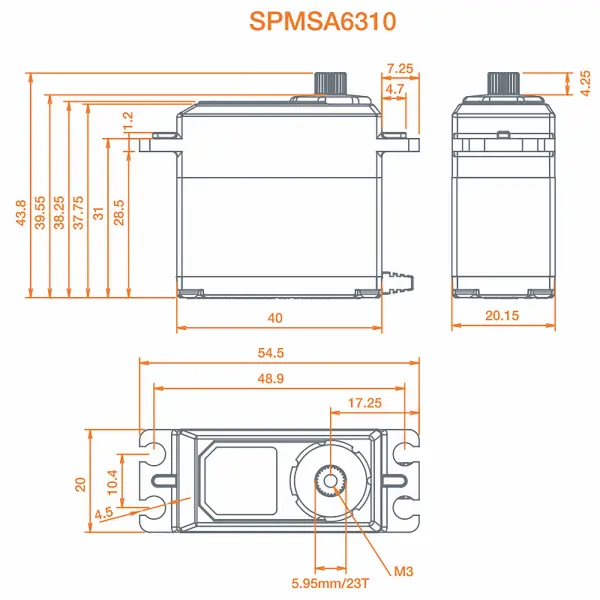

• Product Length: 1.49" (38 mm)
• Water-Resistant: No
• Bearing: Dual Ball Bearing
• Bushing Or Bearing: Bearing
• Gear Type: Metal
• Motor Type: Brushless
• Servo Operating Voltage: 6.0 - 8.4V (HV)
• Maximum Servo Torque: 192.4 oz-in (13.8 kg-cm) @ 6.0V; 302.1 oz-in (21.8 kg-cm) @ 7.4V; 350.0 oz-in (25.2 kg-cm) @ 8.4V
• Programmable: No
• Servo Size Category: Standard
• Deadband: 3µs
• Product Application: Air
• Product Height: 1.57" (40 mm)
• Servo Type: Digital
• Connector Wire Length: 18.1" (460 mm)
• Product Width: 0.79" (20 mm)
• Application: Airplane
• Overload Protection: Yes
• Product Weight: 2.5 oz (71 g)
• Spline Count: 23 Teeth
