Description

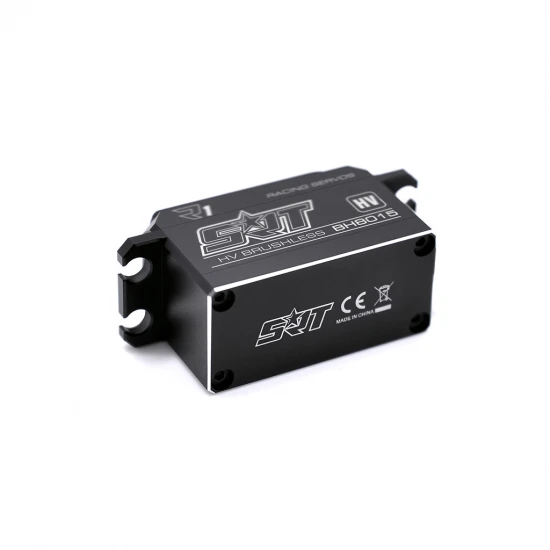

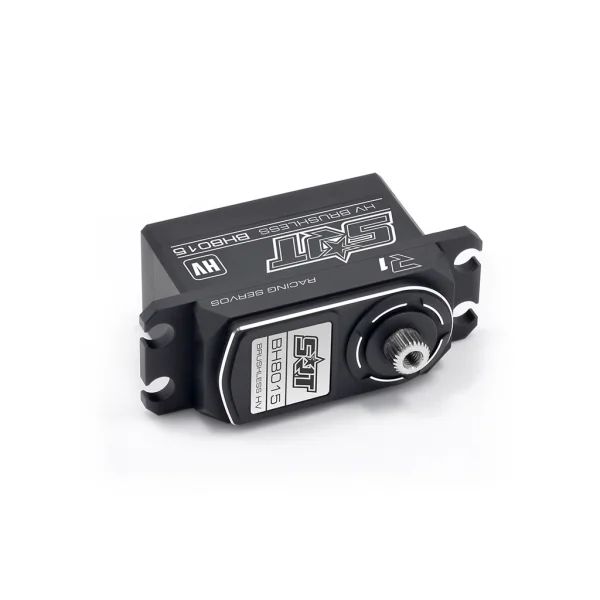

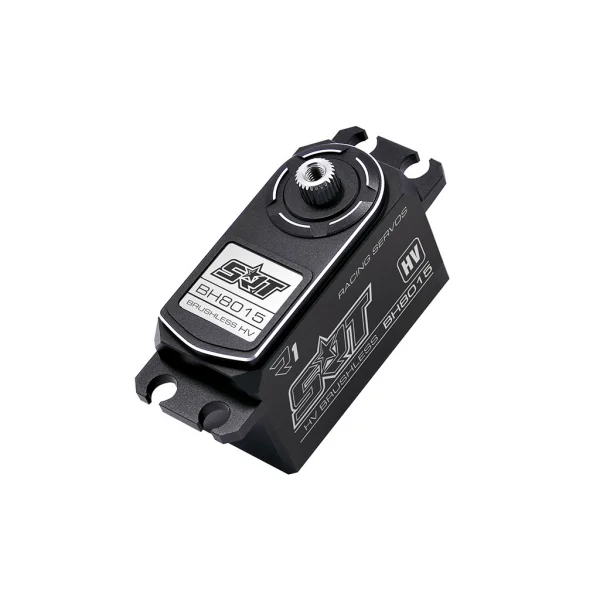

The SRT 1:10 On-Road HV Brushless Servo (SCH-SRTBH8015) pairs rapid transit times with strong holding power in a compact, standard-size footprint. Built for competitive 1/10 scale platforms, it combines high-resolution HD 4096 control with a CNC-machined aluminium case to enhance cooling and consistency during demanding runs.
Driven by a brushless motor and supported by dual bearings, this digital servo uses titanium and aluminium metal gears for durability and precision. A tight 2 μs dead band sharpens steering accuracy, while efficiency-focused electronics ensure low power consumption across a wide high-voltage operating range.
Key Features
- Unique mechanical design
- Incredible efficiency with low power consumption
- Standard dimensions suit vehicles needing a high-quality servo
- CNC-machined aluminium case for exceptional cooling
- HD 4096 resolution digital control
- 2 μs dead band for precise response
- Superior holding torque
- 1-year limited warranty
Specifications
- Type: Digital
- Motor: Brushless
- Bearing: Dual
- Gears: Metal (titanium & aluminium)
- Control system: Pulse width control
- Signal/frequency: 1520 μs / 330 Hz
- Operating voltage: DC 6.0–8.4 V
- Operating temperature range: -10 to +60 degrees
- Speed: 0.065 sec/60° (6.0 V); 0.055 sec/60° (7.4 V); 0.050 sec/60° (8.4 V)
- Stall torque: 10.0 kg·cm (6.0 V); 13.0 kg·cm (7.4 V); 15.0 kg·cm (8.4 V)
- Potentiometer drive: Direct drive
- Dimensions: 41.0 x 20.0 x 26.4 mm
- Weight: 52.0 g
- Connector lead: JR, 180 mm
Suggested Compatibility
- 1/10 Electric Touring
- 1/10 2WD Electric Buggy
- Formula One
Secured by Stripe
Specifications
KEY FEATURES
- Unique Mechanic Design
- Incredible efficiency and low power consumption
- Standard dimension make it perfect for vehicles that can benefit from a high quality servo
- CNC Machined aluminum case for exceptional cooling
- HD 4096 Resolution
- 2 μsec Dead Band
- Superior Holding Torque
- 1-Year Limited Warranty
Application :
1/10 Electric Touring
1/10 2WD Electric Buggy
Formula One
PRODUCT SPECIFICATIONS
Type: Digital
Bearing: Dual
Motor Type: Brushless
Gear Type: Metal
Gear Material: Titanium & Alu
control system: pulse width control
working frequence: 1520μs / 330hz
operating voltage: dc6.0-8.4v
operating temperature range: -10 to + 60 degree
operating speed (6.0v): 0.065 sec/60 degrees at no load
operating speed (7.4v): 0.055 sec/60 degrees at no load
operating speed (8.4v): 0.050 sec/60 degrees at no load
stall torque (6.0v): 10.0kg.cm (138.8 oz/in)
stall torque (7.4v): 13.0kg.cm (180.5 oz/in)
stall torque (8.4v): 15.0kg.cm (208.3 oz/in)
potentiometer drive: direct drive
dimensions: 41.0x20.0x26.4 mm /1.61x0.79x1.04 in
weight: 52.0g (1.83 oz)
connector wire length: jr 180 mm
Key Info:
- Brand: SRT
- Part No: SCH-SRTBH8015
- Barcode: 5051294198961
