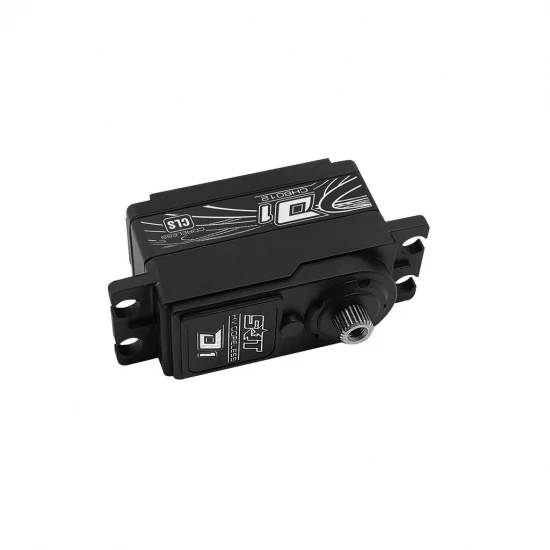

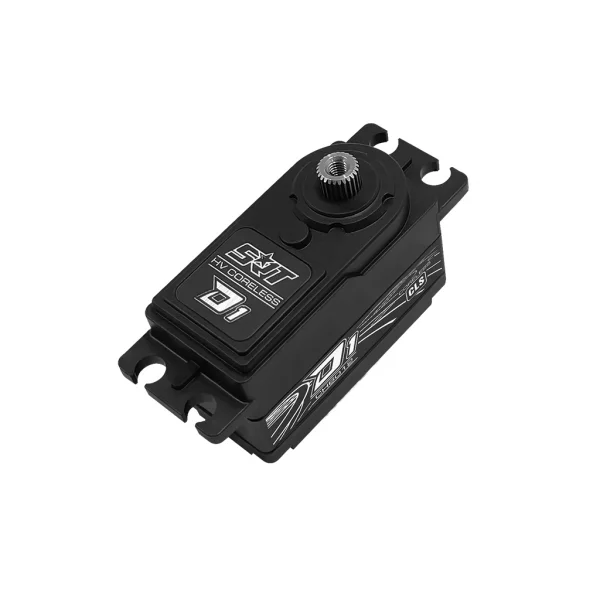

SRT CH6012 1:10 Scale On-Road HV Servo

The SRT CH6012 1:10 Scale On-Road HV Servo delivers fast, precise control for demanding on-road applications. Combining a digital control system with a coreless motor, dual bearings and titanium/aluminium metal gears, it offers excellent efficiency, low power consumption and a crisp 2 μs dead band for consistent steering feel on the track.

Features

• Digital control with 2 μs dead band
• Coreless motor with dual bearings

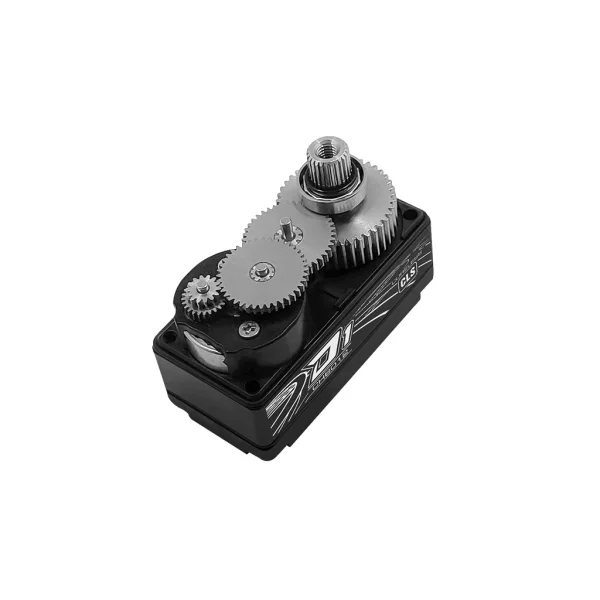

• Metal gears with titanium & aluminium construction
• High-voltage operation: DC 6.0–7.4 V
• Incredible efficiency and low power consumption
• 1-year limited warranty

Performance

• Operating speed (6.0 V): 0.07 sec/60 degrees (no load)
• Operating speed (7.4 V): 0.06 sec/60 degrees (no load)
• Stall torque (6.0 V): 9.0 kg.cm (125.0 oz/in)
• Stall torque (7.4 V): 12.0 kg.cm (166.6 oz/in)

Technical Specifications

• Type: Digital
• Control system: Pulse width control
• Working frequency: 1520 μs / 330 Hz
• Motor type: Coreless
• Bearing: Dual
• Gear type: Metal
• Gear material: Titanium & aluminium
• Potentiometer drive: Direct drive
• Connector wire: JR, 110 mm

Dimensions & Weight

• 41.0 x 20.0 x 26.4 mm
• Weight: 48.0 g

Operating Conditions

• Operating temperature: -10 to +60°C

Suggested Compatibility

• 1/10 Electric Touring
• 1/10 Drift
• Formula One

Designed for 1/10 on-road racing, the SRT CH6012 (part number SCH-SRTCH6012) provides smooth, reliable response and robust durability for consistent lap-after-lap performance.
