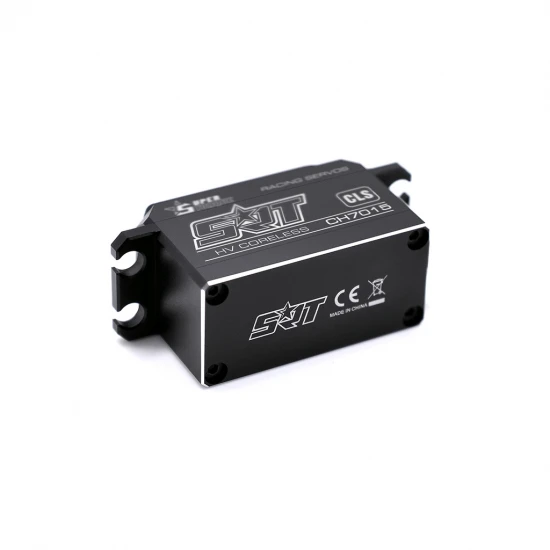

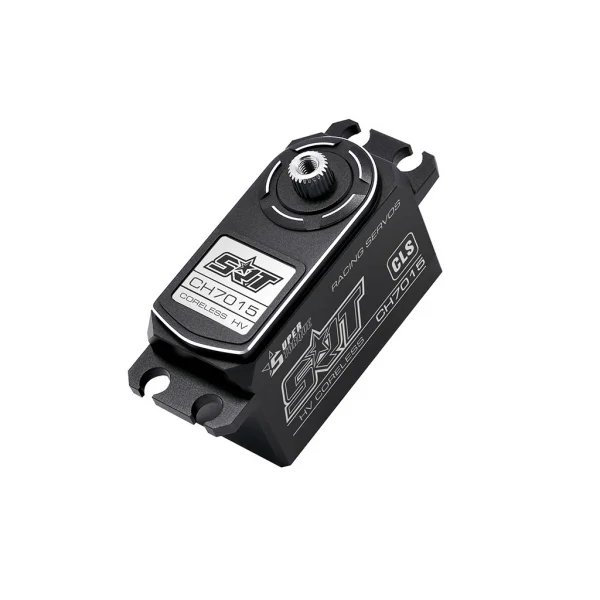

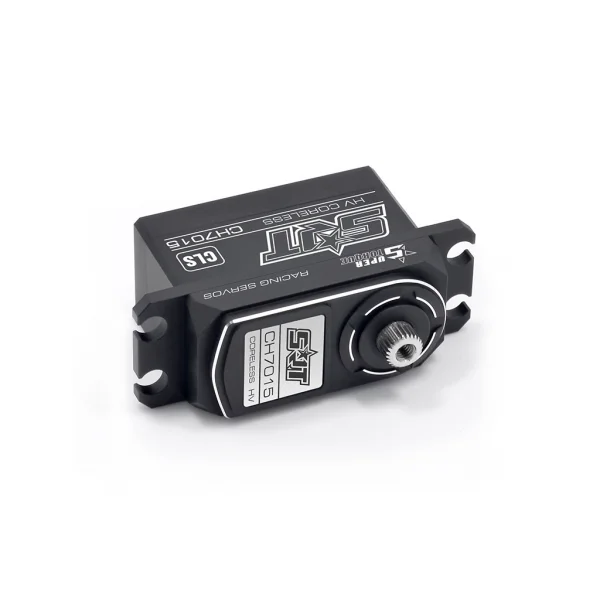

SRT CH7015 HV Servo - 1:10 On-Road Steering

The SRT CH7015 1:10 On-Road (Steering) HV Servo (SCH-SRTCH7015) is a high-performance, high-voltage digital servo built for precision steering control. A coreless motor, titanium and aluminium metal gears, and a CNC-machined aluminium case combine to deliver exceptional efficiency, durability and cooling. With HD 4096 resolution and a 2 μsec dead band, it offers precise centring, smooth response and superior holding torque while maintaining low power consumption.

Key Features

• Incredible efficiency and low power consumption
• Titanium & aluminium gears for precision and durability
• Standard dimensions for straightforward installation
• CNC machined aluminium case for exceptional cooling
• HD 4096 resolution with 2 μsec dead band
• Superior holding torque
• Digital, coreless design with dual bearings
• 1-year limited warranty

Product Specifications

• Type: Digital
• Bearing: Dual
• Motor Type: Coreless
• Gear Type/Material: Metal, titanium & aluminium
• Control system: Pulse width control
• Working frequency: 1520 μs / 330 Hz
• Operating voltage: DC 6.0–8.4 V
• Operating temperature range: -10 to +60 degrees
• Operating speed (6.0 V): 0.10 sec/60° (no load)
• Operating speed (7.4 V): 0.08 sec/60° (no load)
• Operating speed (8.4 V): 0.07 sec/60° (no load)
• Stall torque (6.0 V): 12.0 kg·cm (166.6 oz/in)
• Stall torque (7.4 V): 13.0 kg·cm (180.5 oz/in)
• Stall torque (8.4 V): 15.0 kg·cm (208.3 oz/in)
• Potentiometer drive: Direct drive
• Dimensions: 41.0 × 20.0 × 26.4 mm
• Weight: 52.0 g
• Connector wire length: JR 180 mm

Suggested Compatibility

• 1/10 electric touring
• 1/10 2WD electric buggy
• 1/10 drift
• Formula One
