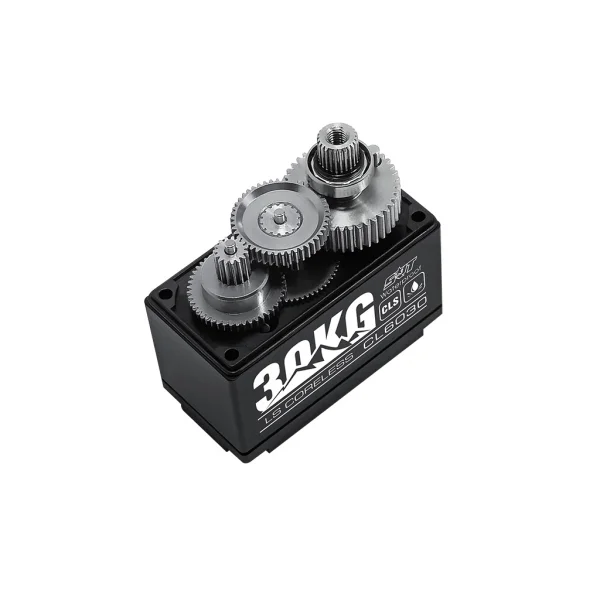

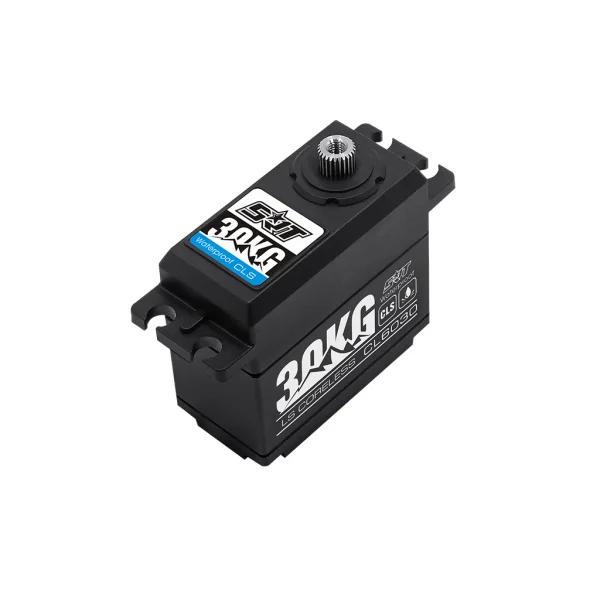

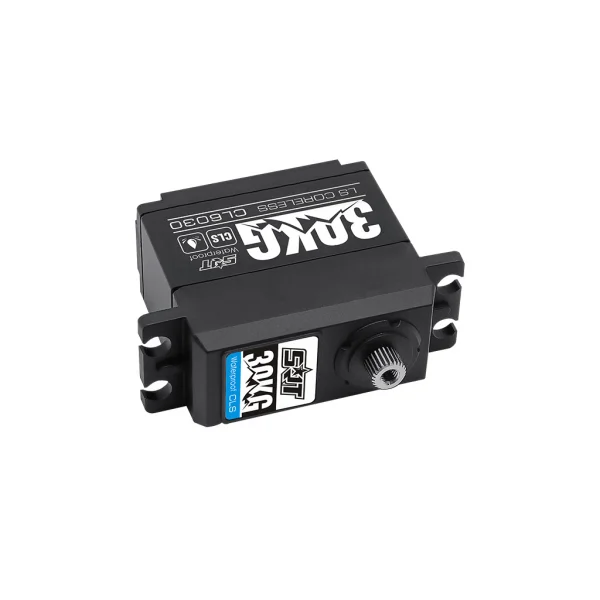

SRT CL6030 Waterproof Coreless Servo

The SRT CL6030 Waterproof Coreless Servo delivers reliable steering and throttle control with a durable metal geartrain and smooth coreless motor response. Built around titanium and steel gears, an intermediate aluminium case and NMB dual main bearings, this digital servo is engineered for consistent performance in tough conditions. The 25T output shaft and waterproof construction make it a strong choice where durability matters.

Key Features

• Titanium & steel gears for precision and durability
• Intermediate aluminium case
• NMB dual main bearings
• Waterproof construction
• 25T output shaft
• 1-year limited warranty

Performance Specifications

• Type: Digital
• Motor: Coreless
• Gear Type/Material: Metal (Titanium & Steel)
• Control System: Pulse width control
• Working frequency: 1520μs / 330Hz
• Operating voltage: DC 4.8–7.4V
• Operating temperature range: -10 to +60°C
• Speed (4.8V/6.0V/7.4V): 0.13 / 0.12 / 0.11 sec/60 degrees (no load)
• Stall torque (4.8V/6.0V/7.4V): 19.0 / 25.0 / 30.0 kg.cm
• Potentiometer drive: Direct drive

Dimensions & Details

• Size: 41.3 x 20.5 x 38.3 mm (1.63 x 0.8 x 1.51 in)
• Weight: 69.0 g (2.43 oz)
• Connector wire length: JR 300 mm
• Part number: SCH-SRTCL6030

Suggested Compatibility

• 1/10 crawlers
