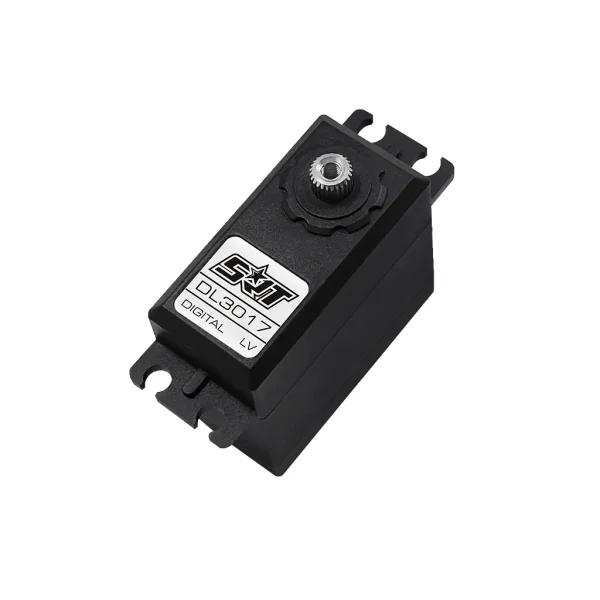

SRT DL3017 LV Digital Servo 17kg 0.15s

The SRT DL3017 LV Digital Servo combines efficient performance with precise control in a compact standard-size case. Featuring dual bearings and a robust metal gear train with copper and aluminium components, this servo delivers up to 17.0 kg·cm of torque at 6.0 V and a swift 0.15 s/60° transit time. A tight 2 μs dead band helps ensure accurate centring, making the SRT DL3017 a strong choice for control duties where consistency matters. Part number SCH-SRTDL3017.

Features

• Incredible efficiency and low power consumption
• 2 μs dead band for precise control
• Dual ball bearings and metal gears
• DC motor with pulse width control
• 1-year limited warranty

Specifications

• Type: Digital
• Bearing: Dual
• Motor type: DC
• Gear type: Metal
• Gear material: Copper & aluminium
• Control system: Pulse width control
• Working frequency: 1520 μs / 330 Hz
• Operating voltage: DC 4.8–6.0 V
• Operating temperature range: -10 to +60 °C
• Operating speed (4.8 V): 0.17 s/60° (no load)
• Operating speed (6.0 V): 0.15 s/60° (no load)
• Stall torque (4.8 V): 15.5 kg·cm (215.3 oz/in)
• Stall torque (6.0 V): 17.0 kg·cm (236.1 oz/in)
• Potentiometer drive: Direct drive
• Dimensions: 40.7 × 20.5 × 39.5 mm (1.6 × 0.8 × 1.55 in)
• Weight: 56.0 g (1.98 oz)
• Connector wire length: JR, 290 mm

Suggested Compatibility

• 1/10 crawlers
