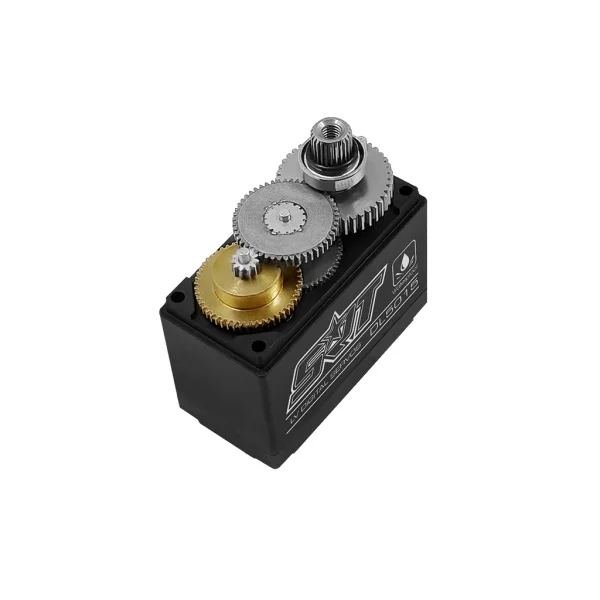

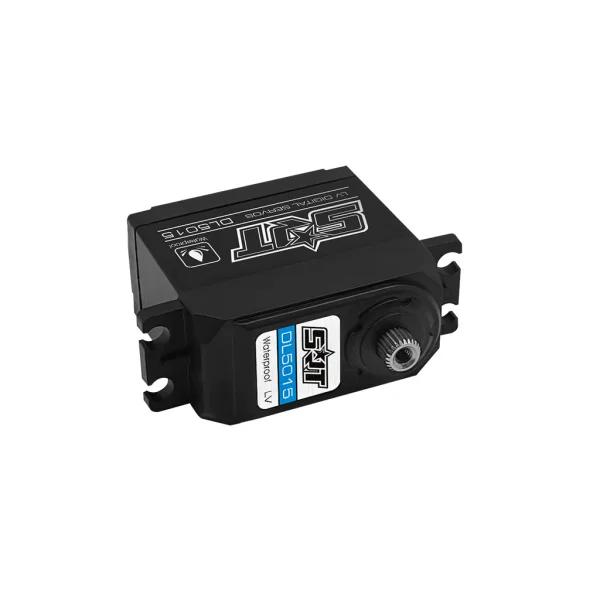

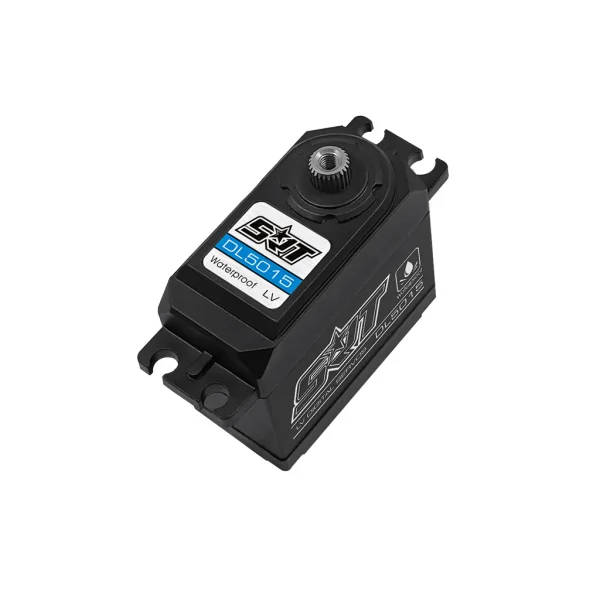

SRT DL5015 LV Digital Waterproof Servo
Brand: SRT
Part No: SCH-SRTDL5015
£27.54
RRP £28.99
Out Of Stock
Request Stock NotificationThe SRT DL5015 LV Digital Waterproof Servo (SCH-SRTDL5015) combines a durable metal gear train with an intermediate aluminium case and NMB dual main bearings for smooth, reliable control. Its waterproof design and 25T output shaft make it a strong choice for demanding RC environments. Suggested compatibility includes 1/10 crawlers as well as general 1/10 on-road and off-road applications.
Key Features
- Digital DC servo with pulse width control
- Waterproof construction
- Intermediate aluminium case
- NMB dual main bearings
- Metal gears with titanium and aluminium materials
- 25T output shaft
- 1-Year Limited Warranty
- Suggested application: 1/10 crawler
Specifications
- Operating voltage: 4.8–6.0 V DC
- Operating speed: 0.15 sec/60° (4.8 V), 0.13 sec/60° (6.0 V)
- Stall torque: 12.0 kg.cm (166.6 oz/in) at 4.8 V; 15.0 kg.cm (208.3 oz/in) at 6.0 V
- Working frequency: 1520 μs / 330 Hz
- Potentiometer drive: Direct drive
- Gear type: Metal
- Dimensions: 40.7 × 20.5 × 39.5 mm (1.6 × 0.8 × 1.55 in)
- Weight: 62.0 g (2.19 oz)
- Bearings: Dual (NMB)
- Motor type: DC
- Connector wire length: JR, 300 mm
- Operating temperature range: -10 to +60 °C
Secure Payments
Secured by Stripe
KEY FEATURES
- Ideal for 1/10 on road and off road scale applications
- Intermediate aluminum case
- NMB dual main bearings
- Superior waterproof
- 25T output shaft
- 1-Year Limited Warranty
Application :
1/10 Crawler
PRODUCT SPECIFICATIONS
Type: Digital
Bearing: Dual
Motor Type: DC
Gear Type: Metal
Gear Material: Titanium & Alu
control system: pulse width control
working frequence: 1520μs / 330hz
operating voltage: dc4.8-6.0v
operating temperature range: -10 to + 60 degree
operating speed (4.8v): 0.15 sec/60 degrees at no load
operating speed (6.0v): 0.13 sec/60 degrees at no load
stall torque (4.8v): 12.0kg.cm (166.6 oz/in)
stall torque (6.0v): 15.0kg.cm (208.3 oz/in)
potentiometer drive: direct drive
dimensions: 40.7x20.5x39.5 mm /1.6x0.8x1.55 in
weight: 62.0g (2.19 oz)
connector wire length: jr 300 mm
Key Info:
- Ideal for 1/10 on road and off road scale applications
- Intermediate aluminum case
- NMB dual main bearings
- Superior waterproof
- 25T output shaft
- 1-Year Limited Warranty
Application :
1/10 Crawler
PRODUCT SPECIFICATIONS
Type: Digital
Bearing: Dual
Motor Type: DC
Gear Type: Metal
Gear Material: Titanium & Alu
control system: pulse width control
working frequence: 1520μs / 330hz
operating voltage: dc4.8-6.0v
operating temperature range: -10 to + 60 degree
operating speed (4.8v): 0.15 sec/60 degrees at no load
operating speed (6.0v): 0.13 sec/60 degrees at no load
stall torque (4.8v): 12.0kg.cm (166.6 oz/in)
stall torque (6.0v): 15.0kg.cm (208.3 oz/in)
potentiometer drive: direct drive
dimensions: 40.7x20.5x39.5 mm /1.6x0.8x1.55 in
weight: 62.0g (2.19 oz)
connector wire length: jr 300 mm
Key Info:
- Brand: SRT
- Part No: SCH-SRTDL5015
- Barcode: 5051294199326
