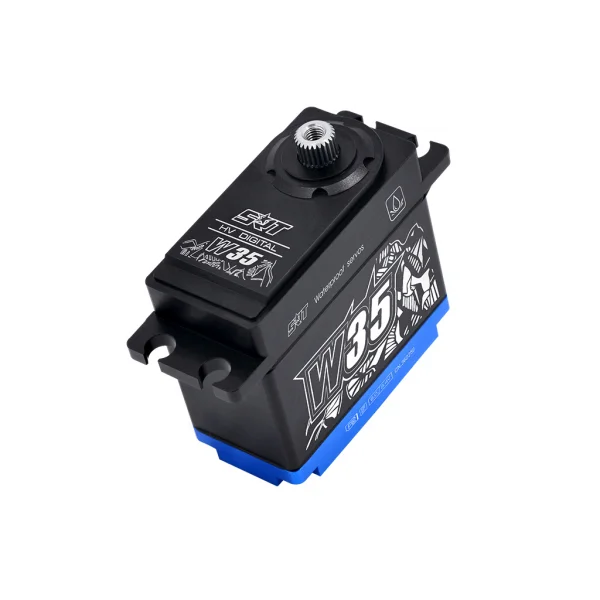

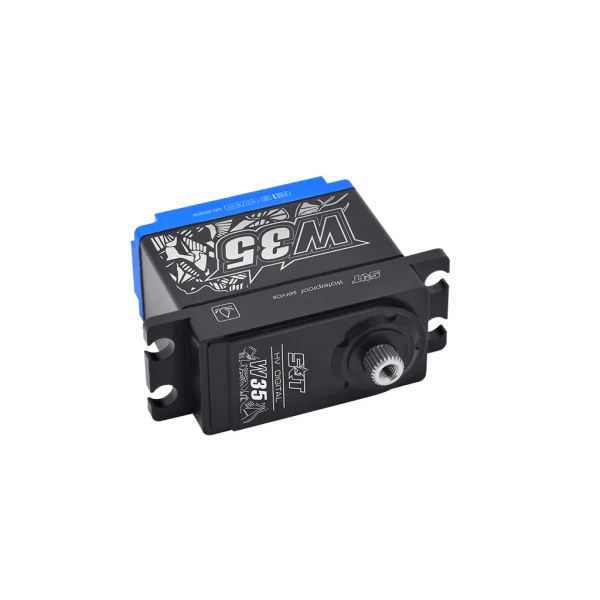

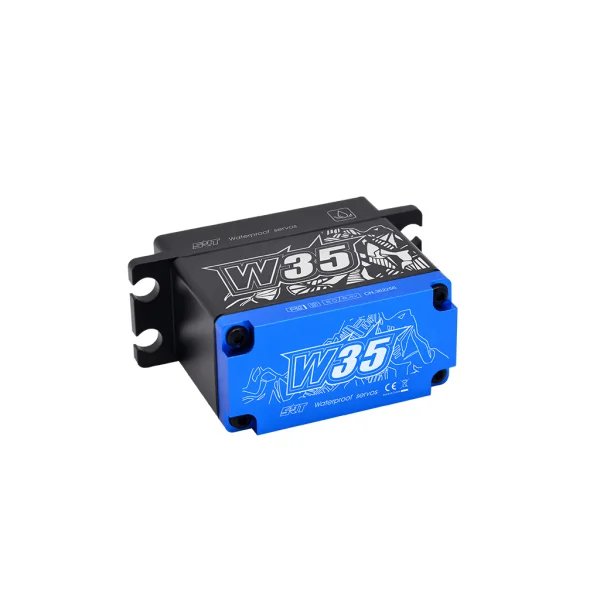

SRT W35 HV Coreless Waterproof Servo

The SRT W35 HV Coreless Waterproof Servo (SCH-SRTW35) delivers dependable torque, speed and precision for demanding 1/10 crawler applications. A robust metal geartrain with titanium and steel components, dual NMB bearings and an intermediate aluminium case provide smooth operation and durability in wet and muddy conditions. At 8.4V it offers up to 35.0 kg.cm of stall torque with a rapid 0.10 s/60° transit speed.

Key Features

• Intermediate aluminium case for strength and heat dissipation
• NMB dual main bearings for smooth, precise movement
• Waterproof design for all-weather use
• 25T output shaft (spline)
• Metal gears (titanium and steel)
• Digital control with coreless motor
• 1-year limited warranty

Performance

• Operating speed (6.0V): 0.15 s/60°
• Operating speed (7.4V): 0.12 s/60°
• Operating speed (8.4V): 0.10 s/60°
• Stall torque (6.0V): 25.0 kg.cm (347.2 oz/in)
• Stall torque (7.4V): 30.0 kg.cm (416.6 oz/in)
• Stall torque (8.4V): 35.0 kg.cm (486.1 oz/in)

Specifications

• Type: Digital; Motor: Coreless
• Gear type: Metal (titanium & steel)
• Control system: Pulse width control
• Working frequency: 1520μs / 330Hz
• Operating voltage: DC 6.0–8.4V
• Operating temperature: -10 to +60°C
• Potentiometer drive: Direct drive
• Bearings: Dual (NMB)
• Dimensions: 40.7 x 20.5 x 38.6 mm
• Weight: 82.5 g
• Connector wire: JR, 360 mm

Suggested Compatibility

• 1/10 crawlers
