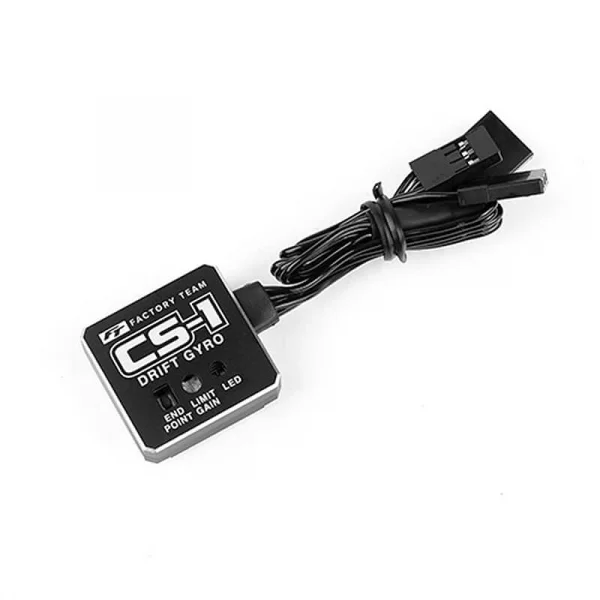

Team Associated Factory Team FT CS-1 Drift Gyro

The Team Associated Factory Team CS-1 Drift Gyro (AS72239) is a high-performance steering gyro designed for R/C drifting, suitable for first-time enthusiasts through to experienced competitors. Its CNC aluminium case aids cooling and protection, while easy on-vehicle adjustment and dual gain modes help deliver precise, consistent steering control.

With support for Futaba S.BUS2, PWM, and Sanwa SSR/SHR signal protocols, plus an EPA function to match different models, the FT CS-1 offers flexible setup in a compact 10 g package.

Features

• CNC aluminium case for high-efficiency cooling and protection
• High-performance gyroscope sensor
• Compact size with simple installation
• Futaba S.BUS2, PWM, and Sanwa SSR/SHR compatibility
• Easy adjustment with dual gain modes
• EPA feature for matching different models
• Ideal for competition R/C drifting

Specifications

• Voltage Input: 3.7–8.4
• Current Drain: 20mA/6V
• Dual Gain Mode: Normal / AVCS
• Operating Temperature: -10 to +50
• Control System: PID
• Input Signal: PWM (50–333Hz) / Sanwa SHR; SSR / Futaba S.BUS2
• Output Signal: 1520uS (50Hz/333Hz) / Sanwa SSR
• Dimensions (mm): 25.7 x 24.7 x 9.5
• Net Weight (g): 10

Suggested Compatibility

• DC10 Drift Car
