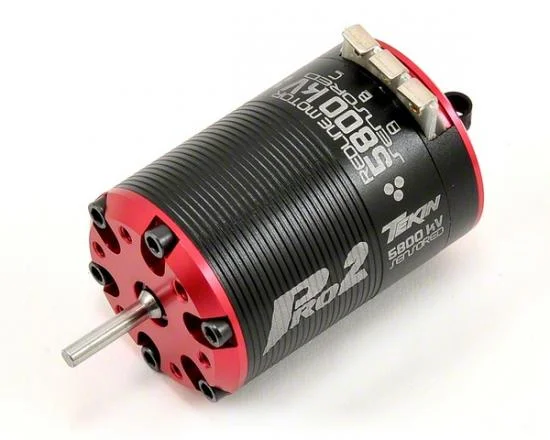

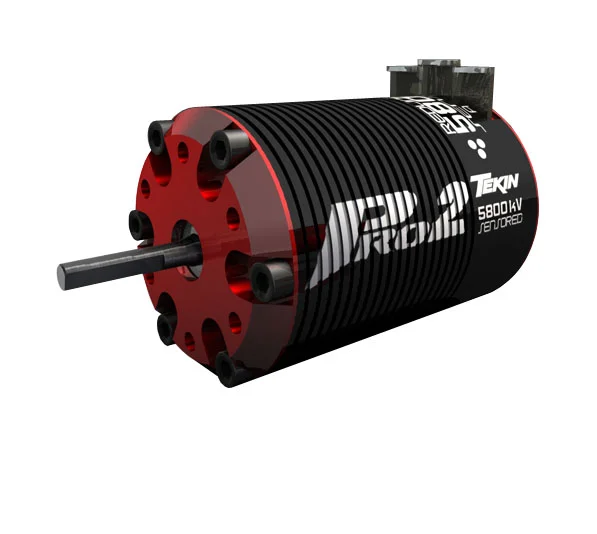

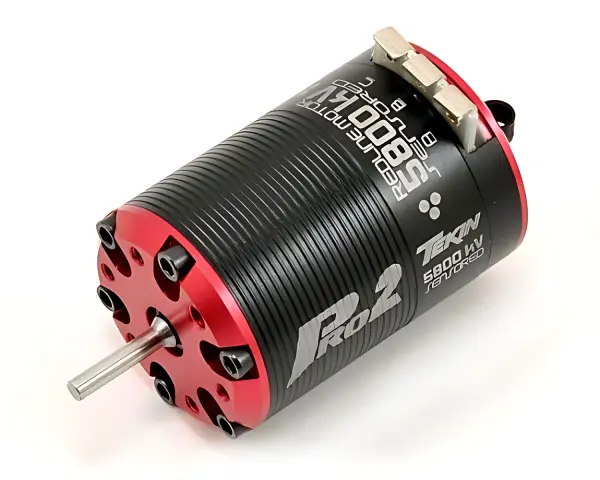

Tekin Pro2 BL 1Y 5800kv, 540, 1:8 shaft

The Tekin Pro2 BL 1Y 5800kV 540 brushless motor (TT2503) delivers smooth, controllable power for high-performance 2WD Short Course applications. Drawing on Tekin’s proven T8 heritage, the Pro2 HD combines a 4‑pole, 12‑slot design with premium materials to provide strong torque and refined throttle response. It is specifically designed to be paired with the Tekin RX8 ESC.

A CNC‑machined 6061‑T6 billet aluminium heatsink can enhances cooling, while neodymium sintered magnets and high‑purity copper windings maximise efficiency. The rebuildable construction, dual‑plug sensored harness and high‑RPM ABEC5 oversized bearings support long-term serviceability and consistent performance. For this 1Y wind, the specified voltage is 2S (7.4 V). A 1/8 in (3.18 mm) shaft and compact 540 can dimensions suit tight chassis layouts.

Features

• Designed to be paired with the RX8 Electronic Speed Control
• 4‑pole, 12‑slot hi‑torque motor design
• CNC machined 6061‑T6 billet aluminium heatsink can
• Neodymium sintered magnets
• Rebuildable design
• High purity copper windings maximise efficiency
• Precision engineered for maximum energy conversion
• Dual‑plug sensor wire harness for use with all sensored systems
• High RPM ABEC5 oversized bearings

Specifications

• Turns: 1Y
• Voltage: 2S (7.4 V)
• kV: 5800
• Rotor: 16.5 mm
• Weight: 6.3 oz (179 g)
• Shaft dimensions: 15.3 x 3.18 mm
• Motor diameter: 35.8 mm
• Motor length: 52.9 mm
• Bearings: Front 5 x 14 x 5 mm; Rear 5 x 11 x 5 mm

Suggested Compatibility

• 2WD Short Course applications using 2S LiPo systems
