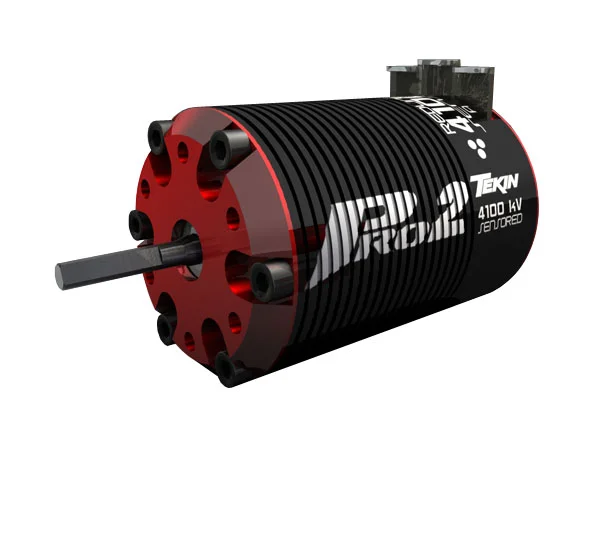

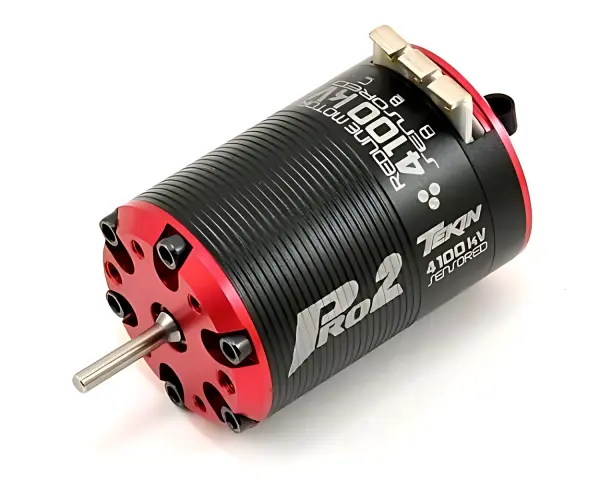

Tekin Pro2 BL 2.5D 4100kv, 540, 1:8 shaft

The Tekin Pro2 BL 2.5D 4100kV with 1/8in shaft (TT2505) is a high-torque, 4‑pole brushless motor engineered for 2WD Short Course performance. Borrowing proven architecture from Tekin's 1/8th scale T8 platform, the Pro2 HD delivers exceptionally smooth power, precise throttle feel and strong efficiency. It is designed to be paired with the Tekin RX8 Electronic Speed Control and is rated for 2S (7.4V) LiPo systems.

Built around a CNC‑machined 6061‑T6 aluminium heatsink can, the motor stays cool under sustained loads, while neodymium sintered magnets and high‑purity copper windings maximise energy conversion. A rebuildable construction and high‑RPM ABEC5 oversized bearings round out a durable package suited to demanding short course racing.

Features

• Designed to be paired with the RX8 Electronic Speed Control
• 4‑pole, 12‑slot high‑torque motor design
• CNC‑machined 6061‑T6 billet aluminium heatsink can
• Neodymium sintered magnets
• Rebuildable design
• High‑purity copper windings maximise efficiency
• Precision engineered for maximum energy conversion
• Dual‑plug sensor wire harness for suggested compatibility with sensored systems
• High‑RPM ABEC5 oversized bearings

Specifications

• Turns: 2.5D
• Voltage: 2S (7.4V)
• kV: 4100
• Rotor: 16.5mm
• Weight: 6.3oz / 179g
• Shaft dimensions: 0.60 x 0.125in (15.3 x 3.18mm)
• Motor diameter: 1.4in / 35.8mm
• Motor length: 2.1in / 52.9mm
• Bearing dimensions: Front 5x14x5mm / Rear 5x11x5mm

For racers seeking controlled punch out of corners and consistent top speed on 2WD Short Course tracks, the Tekin Pro2 HD 4100kV 2.5D offers a compelling blend of smooth delivery, durability and serviceability in a sensored 4‑pole package.
