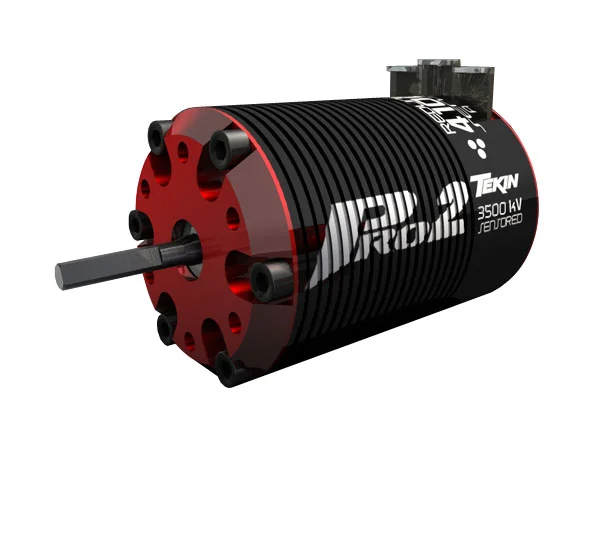

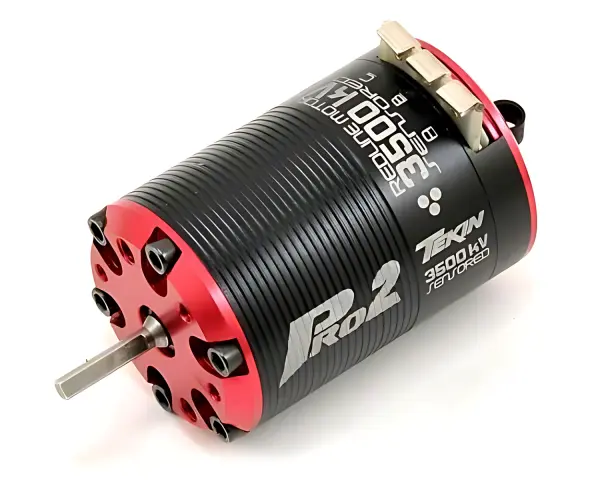

Tekin Pro2 BL 3D 3500kv, 540, 1:8 shaft

The Tekin Pro2 HD 3500kV 4‑pole brushless motor (TT2506) delivers smooth power and torque for 2WD Short Course applications, drawing on the proven T8 1:8 scale motor design. Specifically designed to be paired with the Tekin RX8 ESC and suitable for 2S or 3S LiPo systems, this 3D wind, 540‑size unit focuses on efficiency, control and durability.

A CNC‑machined 6061‑T6 aluminium heatsink can, high‑purity copper windings and oversized ABEC5 bearings support performance and longevity, while the rebuildable architecture and dual‑plug sensor harness offer straightforward servicing and broad sensored system support.

Features

• Designed to be paired with the RX8 Electronic Speed Control
• 4 Pole 12 Slot hi‑torque motor design
• CNC machined 6061 T6 billet aluminium heatsink can
• Neodymium sintered magnets
• Rebuildable design
• High purity copper windings maximises efficiency
• Precision engineered for maximum energy conversion
• Dual‑plug sensor wire harness for use with all sensored systems
• High RPM ABEC5 oversized bearings

Specifications

• Turns: 3D
• Voltage: 2S - 7.4V / 3S - 11.1V
• kV: 3500
• Rotor: 16.5mm
• Weight: 6.3oz / 179g
• Shaft Dimensions: .60x.125 / 15.3x3.18mm
• Motor Diameter: 1.4 / 35.8mm
• Motor Length: 2.1 / 52.9mm
• Bearing Dimensions: Front: 5x14x5mm / Rear: 5x11x5
