UDI Breaker Drift Truck 1:16
Brand: UDI
Part No: SCH-UD1601
In Stock: Usually ships same day

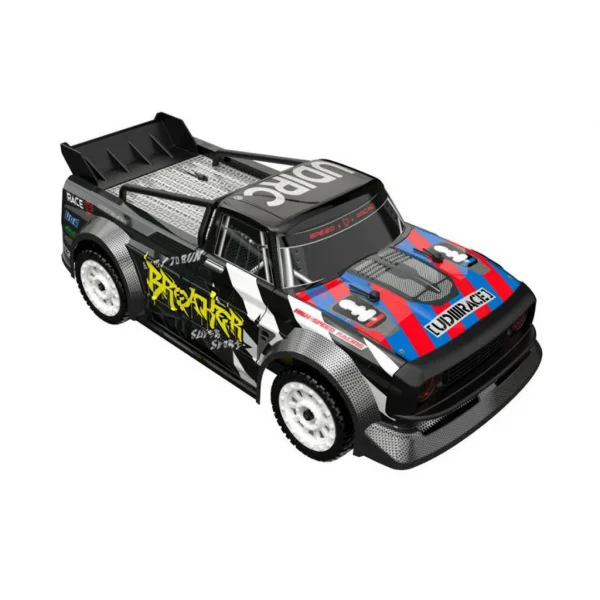

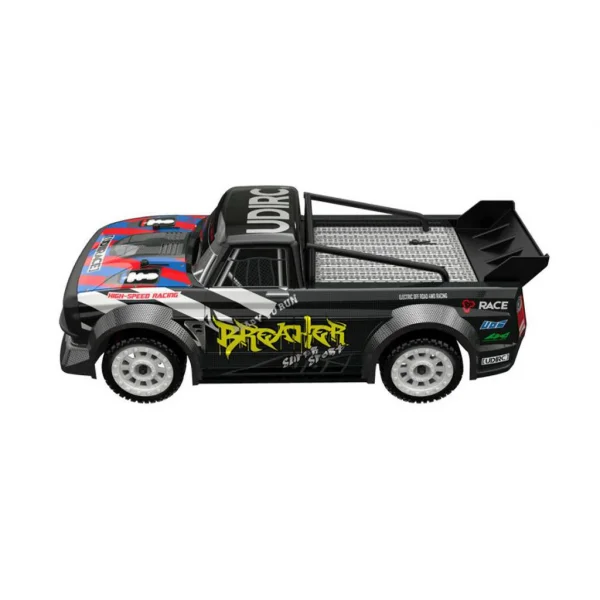

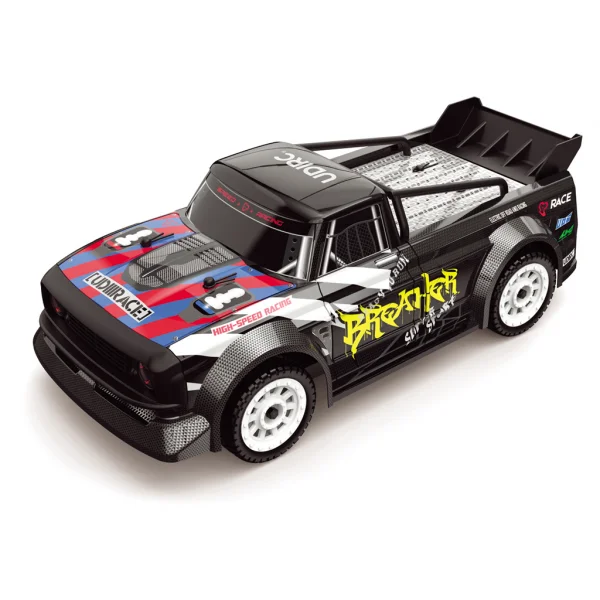

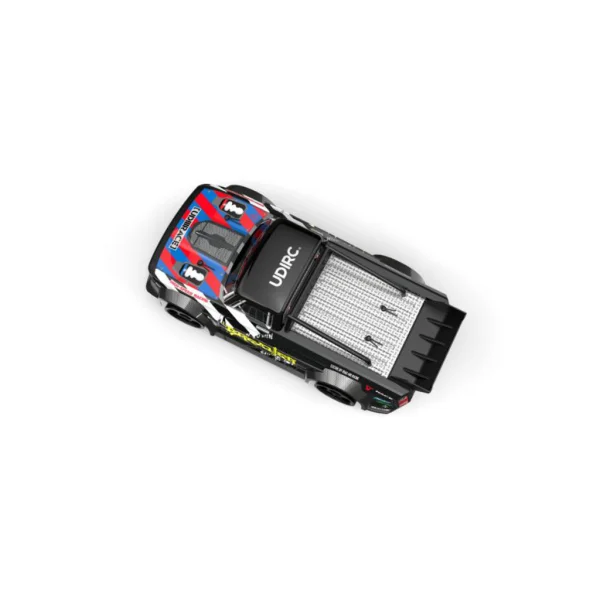

The UDI Breaker Drift Truck 1:16 (SCH-UD1601) is a compact RTR 4WD on-road truck built for controlled slides and everyday fun. Fully proportional control, an integrated Electronic Stability Program (gyro) and waterproof, dustproof electronics make it approachable for newcomers while offering satisfying performance for experienced drivers. LED headlights with angel eyes and taillights add style, while standard and drift tyres included in the box let you switch from grip to slide in minutes.
Key Features
- 1/16 scale, fully proportional 4WD RTR drift truck
- Electronic Stability Program (gyro) to help correct yaw and improve control
- Integrated 4CH 2.4GHz receiver/ESC with low-voltage cut-off, thermal protection, brake, BEC, LVC sensitivity, reverse speed and motor timing settings
- Waterproof and dustproof design

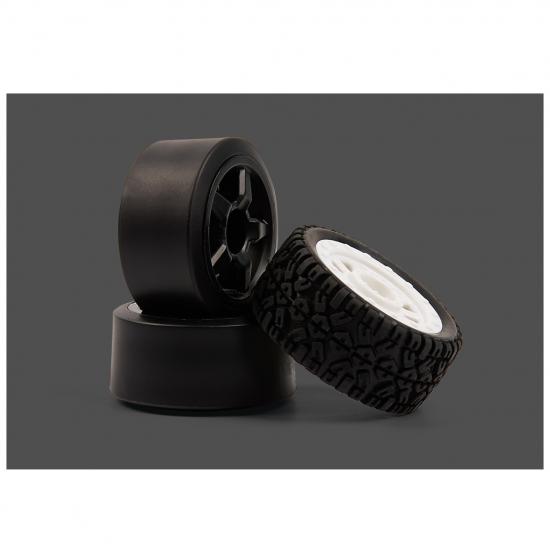

- Two sets of wheels/tyres included: standard and drift

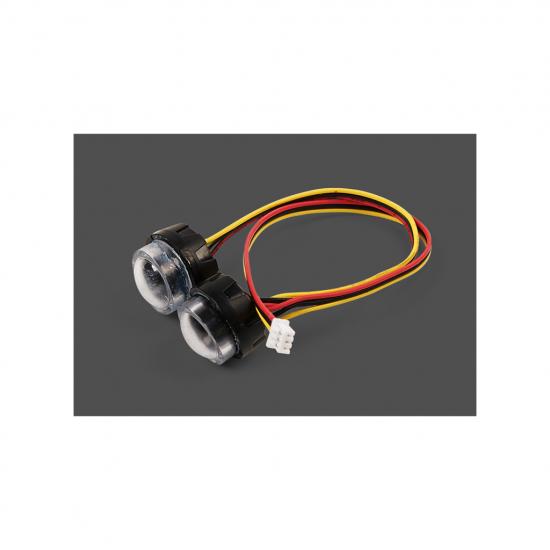

- Controllable LED headlights and taillights with angel eyes
- 7.4V 1200mAh (8.88Wh) rechargeable Li-ion battery and USB charger included
- Steering servo (waterproof/dustproof): up to 2.3 kgf·cm @ 6V, 0.10 s/60° @ 6V; 40 × 29.6 × 13.2 mm
- Integrated aero chassis and diffuser with front and rear impact bumpers
- Ergonomic 2.4GHz radio with on-the-fly stability control gain; 3-channel with full-range telemetry capabilities
- Approximate assembly time: less than half an hour
- Full ball bearings; transmission distance about 60 m; running time about 15 minutes
Specifications
- Power type: Electric
- Motor: Brushed; pinion 16T; spur 38T
- Drivetrain: 4WD with two oil-filled gear differentials
- Drive: Forward/Brake/Reverse
- Final drive ratio: 6.05:1; internal gear ratio: 2.8:1.1
- Gear pitch: 0.5/0.7/1.0 MOD
- Suspension: Independent
- Dimensions: length 300 mm; width 150 mm; height 100 mm
- Wheelbase: 170 mm; front/rear track: 101 mm; ground clearance: 10 mm
- Product weight: 635.5 g
- Radio, receiver, servo and speed control: included
What’s Included
- 1× RC car
- 1× 7.4V 1200mAh rechargeable Li-ion battery
- 4× spare drift tyres (standard tyres pre-installed)
- 1× USB charger
- 1× instruction manual
- 1× small tools
Required To Complete
- 4 × AA batteries
Secured by Stripe
Introducing from UDIRC two new RTR 1/16th fully proportional 4WD drift trucks, with great looking bodies, 2.4GHz radio and an awesome turn of speed!
- 1/16th Fully proportional high-performance 4WD racing car, integrated Electronic Stability Program (Gyro) , effectively correct yaw, easier to control.
- Two new striking colour schemes to choose between.
- 4CH 2.4GHz integrated receiver and electronic speed control (ESC)
- Waterproof, dustproof design ESP (Electronic Stability Program) Low voltage cut-off and thermal overload protection, brake, BEC, LVC sensitivity, reverse speed, and motor timing settings.
- Replaceable wheels
- 2 sets of tyres, standard and drift included in the box!
- Headlights and taillight
- Angel eyes headlights. Lights can be controlled.
- Power supply
- 7.4V, 1200mAh (8.88Wh) Rechargeable Li-ion Battery
- USB Charger
- Equipped with USB charger, which has various methods of charging and makes charging more convenient.
Charging methods: Phone Charger, Power Bank, Computer, Car Charger.
Steering servo
Waterproof and dustproof design
Torque: =2.3 kgf·cm @6V
Speed: =0.10 Sec/60° @6V
Dimensions: 40×29.6×13.2mm

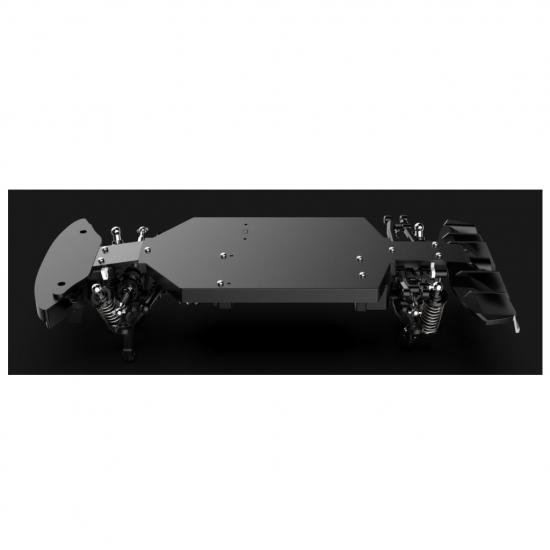

Fully integrated aero chassis.
Integrated chassis and diffuser for slick underside airflow.
Double protection
Front and rear bumpers, separating the force generated by the violent impact.

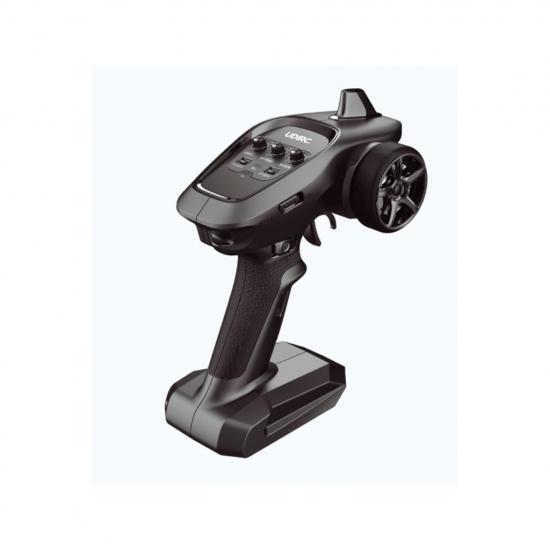

2.4GHz racing wireless control system
Ergonomic steering wheel for precise control.
On-the-fly adjustable AVC gain for personalized handling.
Lightweight and ergonomic design for long bashing.
3 channel radio system.
2.4GHz connection built around DSMR technology.
Full-range telemetry capabilities.
Approximate Assembly Time: Less than half an hour
Ball Bearings: Full set
Battery: Included
Transmission distance: About 60 meter
Running time: About 15 minutes
Battery Capacity: 7.4V, 1200mAh
Charger: Included
Completion Level: Ready-To-Run
Differential: Two oil-filled gear
Drivetrain: 4WD
Drive Type: Forward/Brake/Reverse
Final Drive Ratio: 6.05:1
Front Track: 3.98? (101mm)
Power Type: Electric
Gear Pitch: 0.5/0.7/1.0MOD
Ground Clearance: 0.39? (10mm)
Specification
Internal Gear Ratio: 2.8:1.1
Motor Type: Brushed Motor
Pinion: 16T
Product Length: 11.81″ (300 mm)
Product Width: 5.91″ (150 mm)
Product Height: 3.93″ (100 mm)
Product Weight: 1.4lbs (635.5g)
Radio: Included
Rear Track: 3.98″ (101mm)
Receiver: Included
Scale: 1/16th
Servos: Included
Speed Control: Included
Spur Gear: 38T
Suspension: Independent
Vehicle Type: On-Road
Wheelbase: 6.69″ (170mm)
Package Included:
1X RC Car
1X Battery
4X Spare Drift Tires
1X USB Charger
1X Instruction Manual
1X Small Tools
Requires 4 x AA batteries
Key Info:
- Brand: UDI
- Part No: SCH-UD1601
- Barcode: 5051294171353
- Scale: 1:16
- Build Level: Assembled (RTR)
- Vehicle Type: Drift Car
- Power Source: Electric - Brushed
- Surface Type: On Road
Standard Shipping
£3.95 to most of the UK
Express Shipping
£6.95 to most of the UK
Worldwide Shipping
Available at checkout
Reviews
No specific product reviews yet, why not write one?WRITE A REVIEW
Questions & Answers
Yes it is ready to run.
Around 15-20mph
Yes it does
No, we only list the standard replacement ones SCH-UD1601-009
We offer DPD next day if you need it in a hurry :-)
You can select at checkout
