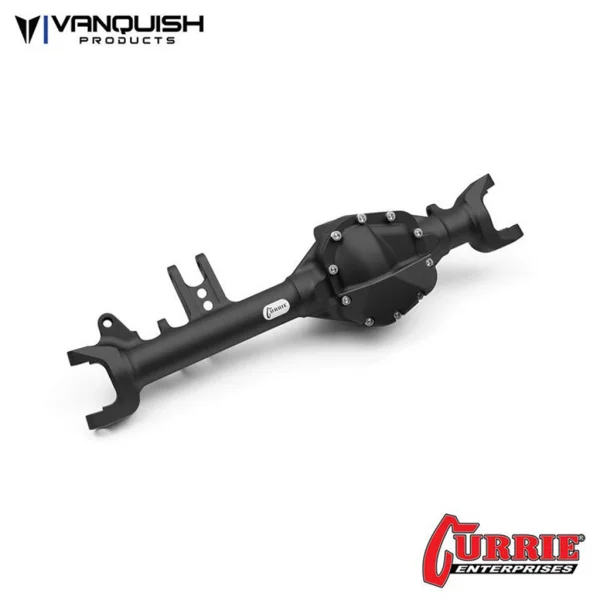

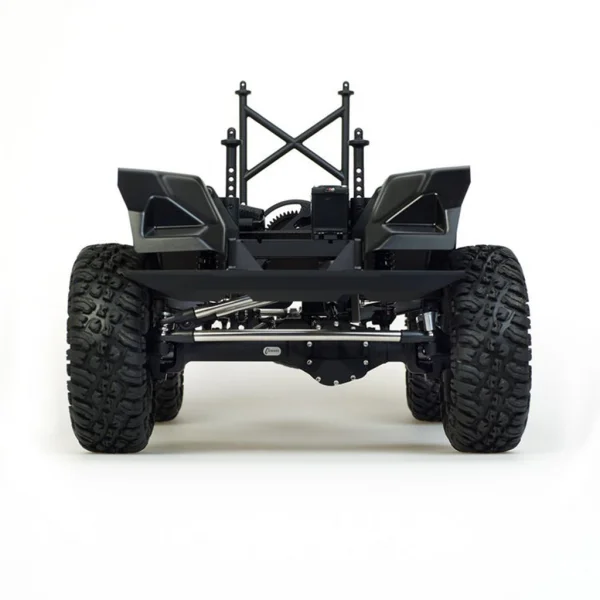

Vanquish Currie VS4-10 D44 Front Axle - Black

The Vanquish Currie VS4-10 D44 Front Axle Black (part number SCH-VPS08370) is a licensed Currie Enterprises D44-style front axle housing for VS4-10 based vehicles. It features an offset front differential housing and one-piece bearing retainers for a highly scale, durable assembly. Integrated inner C-hubs with replaceable chromoly threaded inserts, double-shear shock mounts, an integrated panhard mount and a built-in upper link mount round out this robust design. The D44 axle uses Vanquish Products AR44 gear sets and spools.

Features

• Fully licensed by Currie Enterprises
• Comes with one-piece bearing retainers
• Integrated C-hub design for a more scale appearance
• Threaded chromoly steel C-hub inserts for stronger, replaceable threads
• Double shear shock mounts
• Integrated panhard mount
• Upper link mount built into the housing for added scale appearance and strength

What’s Included

• 1x Currie front housing
• 2x bearing retainers
• 1x Currie diff cover
• 4x threaded inserts
• Axle housing hardware
• Instructions

Not Included

• Hexes, hex pins, bearings, kingpin, knuckles, ring and pinion or locker
• VDI universal axle shafts (short and long side), PN IRC00181

Required Bearings

• 2x 7x14x3.5
• 1x 5x14x5
• 3x 5x11x4

Suggested Compatibility

• Vanquish Products VS4-10 Kits (Origin, Pro, Ultra, Phoenix)
• Vanquish Products VS4-10 Chassis Kit (PN VPS10130)
• Incision VDI universal axle shafts (short and long side) PN IRC00181
• Incision 90mm shocks PN IRC00210
• Incision Rod Ends and Pivot Balls (.280" width pivot balls)
• Vanquish Products 6-hole AR44 Gear Set PN VPS08330
• Vanquish Products 6-hole AR44 Spool PN VPS08070

Important Notes

• Designed for use with a Vanquish Products VS4-10 chassis; clearances for the offset pumpkin may not suit many other chassis designs
• Not for use with Vanquish Products Brass Pivot Balls (.300" width)
• Due to the AR44 gear design, proper pinion shimming may be required
