Vanquish Eibach S8E 90mm Scale Shock Set (SCH-VPS10351)
Brand: Vanquish
Part No: SCH-VPS10351
Out Of Stock
Request Stock NotificationFinance options available at checkout.
Fits These Models (2)
Show all 2 models
Description

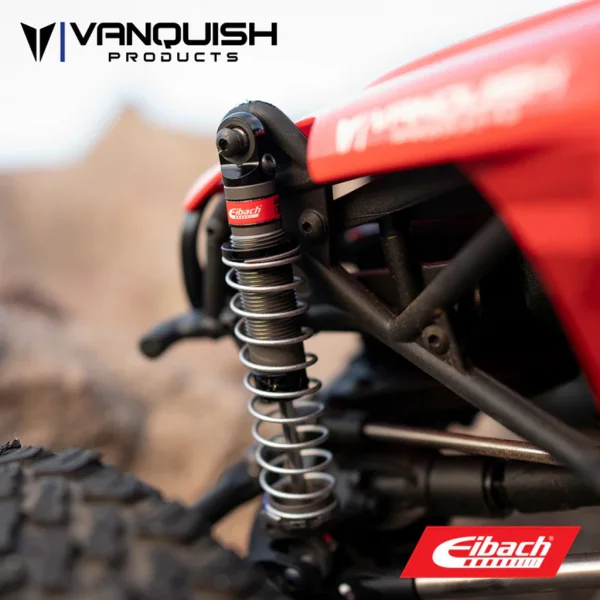

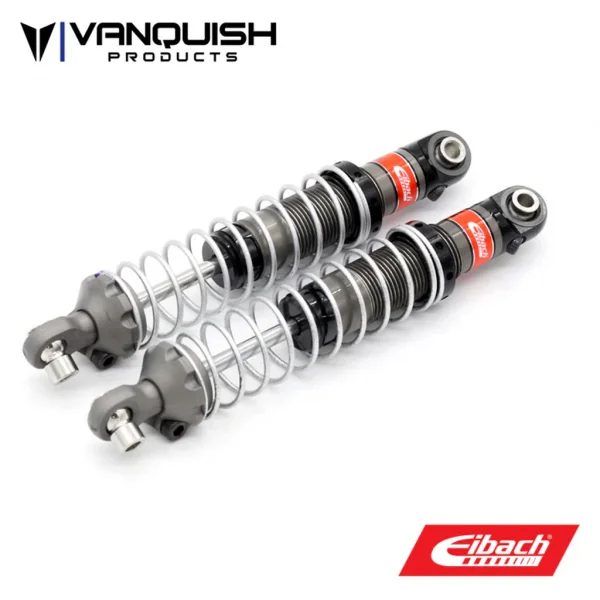

The Vanquish Eibach S8E Scale Shock Set 90mm (SCH-VPS10351) brings the look of Eibach’s latest 2.5" PRO-TRUCK coilovers to your scale build. Intricate machining carries through the aluminium top cap, preload collar and lower cartridge cap to deliver a high-end, easily serviceable shock with a true-to-scale finish. Grey hard‑anodised threaded bodies with a laser‑engraved Eibach logo and silver‑painted springs complete the authentic appearance, while the included Eibach decal sheet adds the final touch.

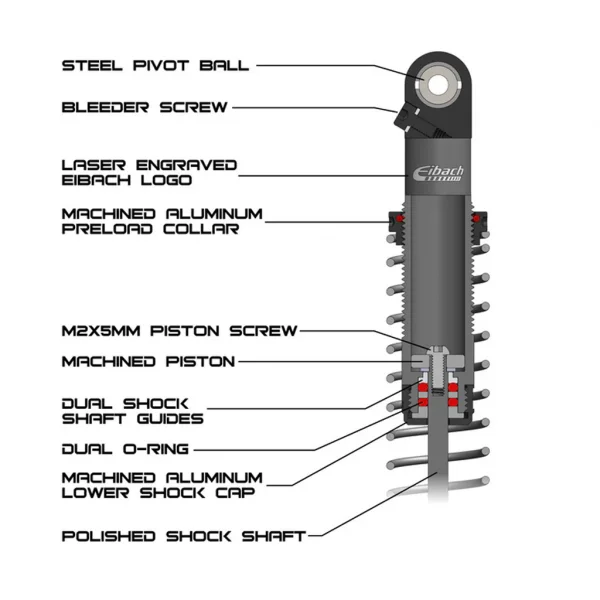

Engineered for performance as well as realism, the lower cartridge cap threads securely onto the aluminium body to retain a dual O‑ring seal pack. A machined piston rides on a polished steel shaft and is held by an M2 x 5mm screw in place of traditional E‑clips. The shock cap features a steel pivot ball and bleeder screw for precise setup, and the 8mm bore supports smooth, consistent damping.
Features
- Grey hard‑anodised machined aluminium threaded shock bodies with laser‑engraved Eibach logo
- Machined aluminium shock cap with steel pivot ball and bleeder screw
- Machined aluminium lower shock cap and threaded lower cartridge design
- Machined aluminium preload collar with integrated O‑ring
- Polished steel shock shafts with dual O‑rings and machined piston
- 8mm bore for smooth damping
- Silver‑painted springs
- Included Eibach decal sheet
- Piston retained by M2 x 5mm screw (no E‑clips)
Notes
- Shocks come pre‑assembled
- Shock oil not included; 30–70wt recommended
- Optional spring rates available (IRC00513)
Suggested Compatibility
- Vanquish Products F10 axles using the included offset lower pivot ball (IRC00509). A standard‑width pivot ball may be required for other applications.
Secured by Stripe
Specifications
The Eibach S8E Scale Shocks are designed to replicate the styling of Eibach’s newest 2.5" coilover shocks, the PRO-TRUCK Coilover 2.5. Intricate design details of the full-size version are carried through to the machined aluminum top cap, preload collar, lower cartridge cap and included decal sheet to create an easily serviceable, high-end performance shock.
The lower cartridge cap now threads onto the bottom of the machined aluminum body and retains the dual O-ring seal pack. A machined piston is mounted on the polished steel shaft and secured with an M2X5mm screw rather than standard E-clips. Silver-painted springs and gray hard anodized shock bodies with a laser engraved Eibach logo complete the authentic Eibach look and deliver a true-to-scale finish.
Gray Hard Anodized Machined Aluminum Threaded shock bodies
Machined Aluminum shock cap with steel pivot ball and bleeder screw
Machined Aluminum lower shock cap
Machined Aluminum Preload collar with integrated o-ring
Polished Shock shafts
Dual O-Rings
8mm Bore
Included Eibach decal sheet
Notes:
Offset lower pivot ball IRC00509 included for Vanquish Products F10 axles. Standard width pivot ball required for other applications.
Shock oil is not included. 30-70wt oil is recommended
Shocks comes pre-assembled
Optional spring rates available IRC00513
- Gray Hard Anodized Machined Aluminum Threaded shock bodies
- Machined Aluminum lower shock cap
- Machined Aluminum Preload collar with integrated o-ring
- Polished Shock shafts
- Dual O-Rings
- 8mm Bore
- Included Eibach decal sheet
Notes:
- Offset lower pivot ball IRC00509 included for Vanquish Products F10 axles. Standard width pivot ball required for other applications.
- Shock oil is not included. 30-70wt oil is recommended
- Shocks comes pre-assembled
- Optional spring rates available IRC00513
Key Info:
- Brand: Vanquish
- Part No: SCH-VPS10351
- Barcode: 5051294214692
