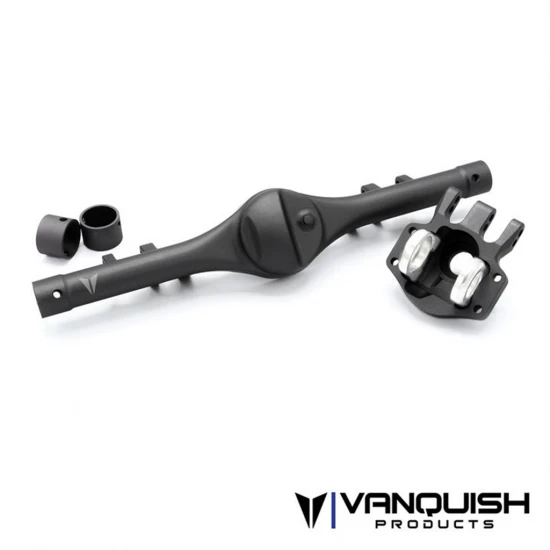

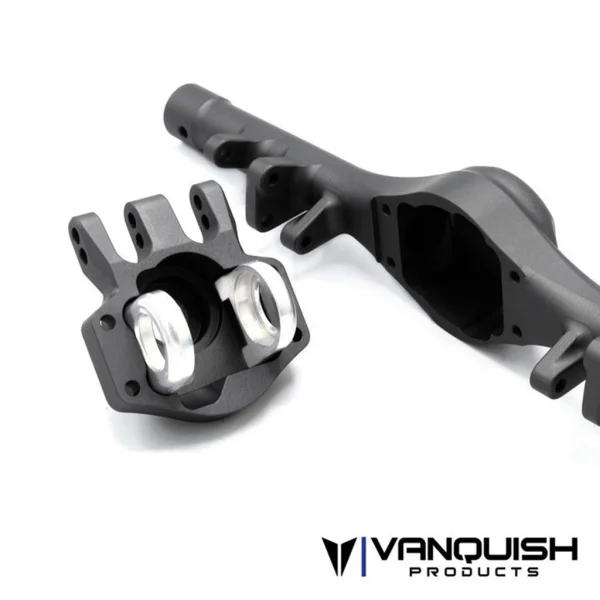

Vanquish F10T Aluminium Rear Axle Housing - Black

The Vanquish F10T Aluminium Rear Axle Housing - Black (part SCH-VPS08632) is a precision-machined rear axle solution for VS4-10 based vehicles. It features a scale centred pumpkin and one-piece bearing retainers to deliver a highly durable, realistic axle assembly. F10T axles use Vanquish Products AR44 gear sets and spools for proven drivetrain performance.

Features

• Machined in the USA
• Made from high quality domestic produced aluminum
• Scale import truck style axle housing
• Adjustable rear upper link positions
• Comes with One Piece Bearing Retainers
• Double shear shock mounts for S8E offset pivot balls allowing for more shock tuning adjustment
• Rear Bearing Retainer Caps utilized to eliminate the need for lockouts and provide a more scale appearance.

What's Included

• 1pc F10T Rear Housing
• 2pcs Bearing Retainers
• 1pc F10T Third Member
• 2pc Axle End Caps
• Required hardware
• Instructions.

Does Not Include

• hexes, hex pins, bearings, axle shafts, ring and pinion or locker.

Required Bearings

• 2pc 7x14x3.5
• 1pc 5x14x5
• 3pc 5x11x4

Suggested Compatibility

• Vanquish VS4-10 Kits equipped with straight axles such as the Origin, Pro and Phoenix (Straight Axle version)
• Vanquish Products VS4-10 Chassis Kit (PN VPS10130*)
• Incision S8E 90mm Shocks (offset pivot ball at shock mounting location) (PN IRC00501)
• Incision Rod Ends and Pivot Balls (.280" width pivot balls)**
• Vanquish Products 6-Hole AR44 Gear Set (PN VPS08330)
• Vanquish Products 6-Hole AR44 Spool (PN VPS08070)
• Vanquish Products Rear Axle Shafts (PN VPS08082)

Notes

• Not for use with Vanquish Products Brass Pivot Balls (.300" width).
• Due to the nature of the AR44 gear design, proper shimming of the pinion gear may be required for optimal results.
