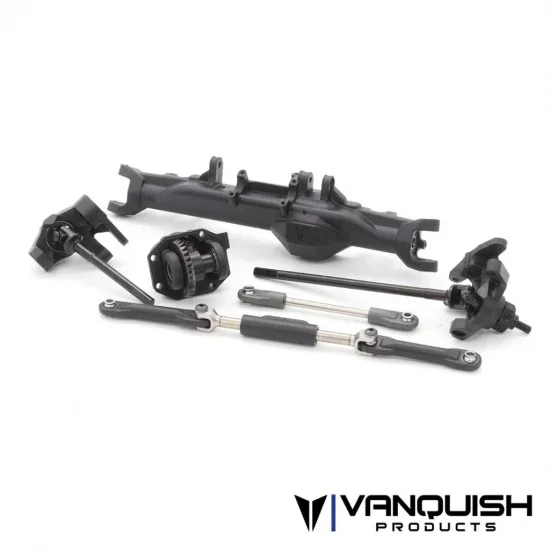

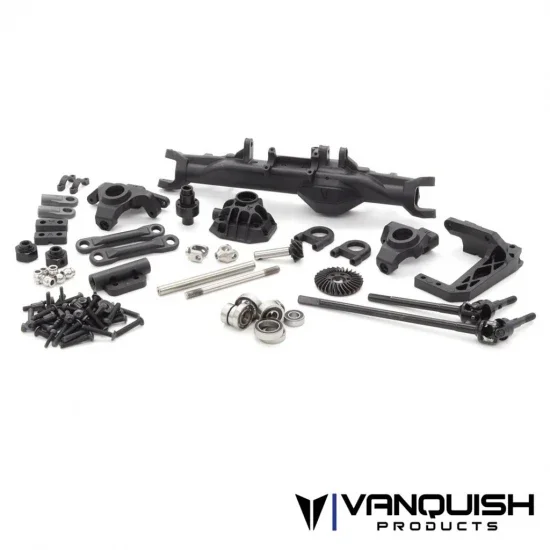

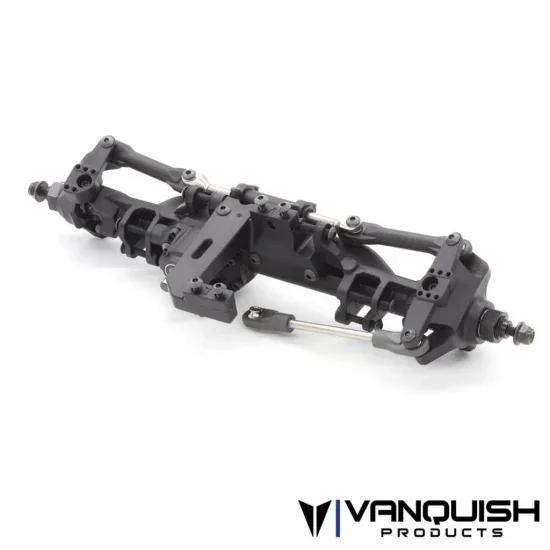

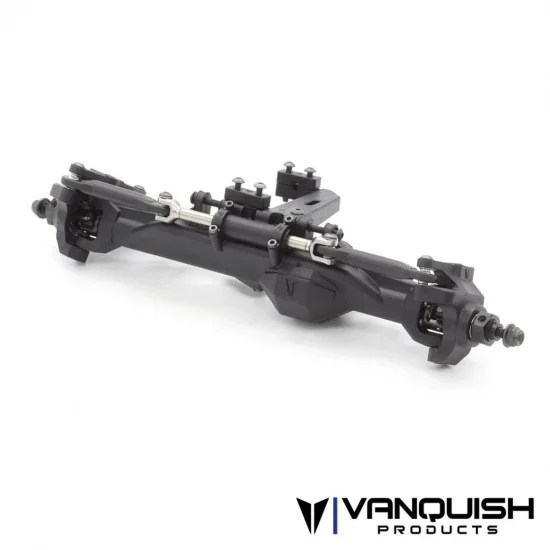

Vanquish H10 Front Axle Set – SCH-VPS08800

The Vanquish H10 Front Axle Set (SCH-VPS08800) delivers a complete axle package for scale crawlers and custom builds, combining an ultra‑rigid moulded housing with performance‑focused geometry and standout scale details.

Designed for 4‑link suspension with a behind‑the‑axle servo mount, the H10 replaces the traditional tie rod with a simulated hydraulic ram for authentic off‑road styling while maintaining precise steering performance.

Key Features

• Front straight axle with 206.5mm hex face width (8.13")
• Moulded plastic axle housing with ultra‑rigid design
• Universal style axle shafts with chromoly universal shafts
• Up to 49 degrees of steering; high caster reinforced C‑hubs
• High‑pinion hypoid machined axle gears, 30/8 (VPS08330)
• 6‑bolt ring gear and spool
• One‑piece moulded bearing retainers
• Adjustable lower shock mounting position (S8E offset pivot ball IRC00509)
• Scale removable third member
• Simulated hydraulic ram steering and behind‑the‑axle servo mount

Suggested Compatibility

• Vanquish SLW and Incision hubs
• VPS09010 H10 Optic RTR
• Incision .280" width pivot ball
• IRC00509 S8E lower shock mount offset pivot ball at shock mount locations

Notes

• Does not include link mounting hardware
• Optional lower ratio ring and pinion (8/33) available (VPS08331)
