Description

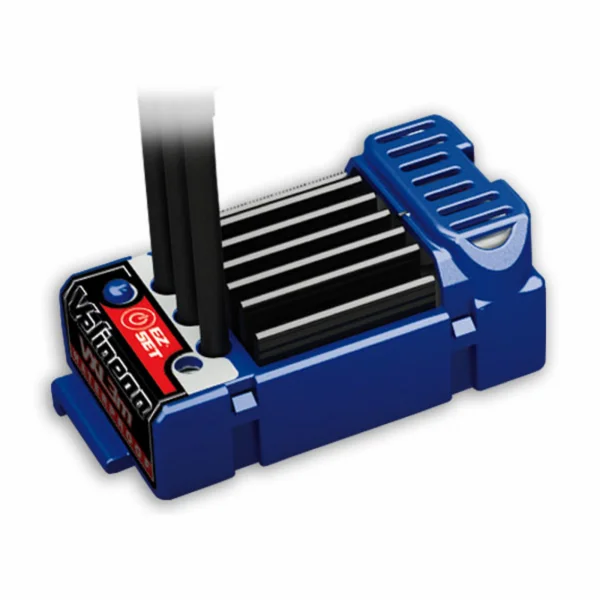

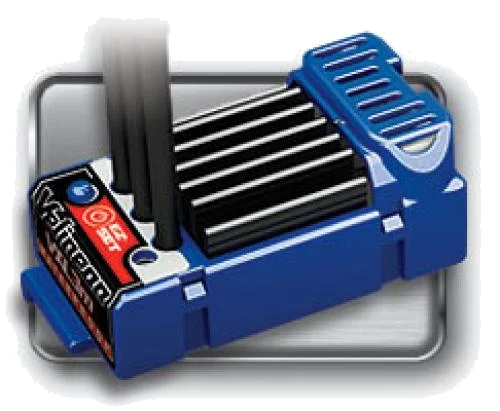

The Traxxas TRX3375 VXL-3m Electronic Speed Control - Waterproof (brushless) is a forward/reverse electronic speed control for sensorless brushless motors, part of the Traxxas Velineon range.
The VXL-3m is built around simple set-up. Its EZ-Set push-button programming works just like the Traxxas XL-5 family of speed controls, so anyone who has used one will find nothing new to learn. Three drive profiles are available: Sport Mode (forward, brake and reverse), Race Mode (forward and brake only) and Training Mode, which limits forward and reverse power to 50%. Training Mode is a patented Traxxas feature that helps younger or less experienced drivers keep control, and switching profiles restores full throttle when they are ready. A multi-colour LED gives clear feedback during set-up and use.

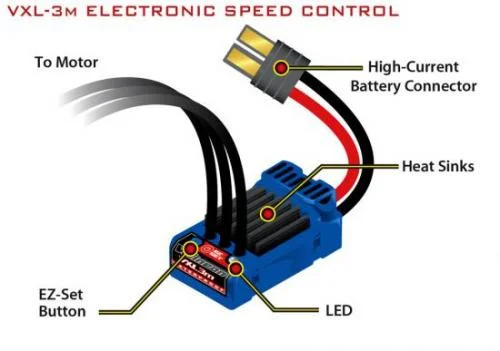

The circuit design lets sensorless brushless motors run smoothly and precisely without extra sensor wiring. Two-stage low voltage detection signals when a LiPo pack is nearing its minimum voltage, and the control accepts packs up to 11.1-volt 3S LiPo as well as 6-12 cell NiMH. Power reaches the motor through the Traxxas High-Current Connector and gold plated 3.5 mm bullet connectors on 16-gauge cable, while the MOSFET design keeps resistance down to 0.0005 ohms.
Protection comes from two-stage thermal shutdown, locked rotor protection that cuts power if the motor is bound, and over-voltage failsafe mode. Rubber seals and O-rings give the case water resistance, and a micro fin aluminium heatsink dissipates heat. It is listed at 1:16 scale, so suggested compatibility is with models of that size; please check your model's requirements before fitting.
Specifications
- Weight: 106.6 g
- Length: 140 mm
- Width: 56 mm
- Height: 79 mm
- Scale: 1:16
- Colour: Blue
- Age recommendation: 14+
Secured by Stripe
VXL-3m Electronic Speed Control - Waterproof (brushless) Manuals & Guides
Manuals & Guides
- Traxxas Velineon VXL-3M Mini Brushless Power System - Waterproof Manual (TRX3370)
- Traxxas Velineon VXL-3M Mini Brushless Power System - Waterproof Manual (TRX3370) – page 1
- Traxxas Velineon VXL-3M Mini Brushless Power System - Waterproof Manual (TRX3370) – page 3
- Traxxas Velineon VXL-3M Mini Brushless Power System - Waterproof Manual (TRX3370) – page 5
- Traxxas Velineon VXL-3M Mini Brushless Power System - Waterproof Manual (TRX3370) – page 7
Specifications
The Velineon VXL-3m forward/reverse electronic speed control simplifies brushless technology with easy, built-in profiles and intuitive programming. The VXL-3m uses advanced circuit design that allows sensorless brushless motors to operate with the smoothness and precision of the best brushed systems. It sets up, operates, and programs just like the Traxxas XL-5 family of ESCs so there's no tricky new procedures to learn. Traxxas' exclusive patented Training Mode is also included to limit full throttle to 50% for young or inexperienced drivers. For the most advanced users, the VXL-3m is equipped with two-stage low voltage detection to allow LiPo battery use, including powerful 11.1-volt 3s packs! The VXL-3m is manufactured by Traxxas to ensure the highest level of quality and support.
VXL-3m Electronic Speed Control - Waterproof (brushless) Key Features:
- Traxxas patented High-Current Connector maintains pure, unrestricted power flow from the battery to the brushless power system
- Built-in two-stage low voltage detection for Lithium Polymer (LiPo) battery use provides a clear signal to the driver that the battery pack is nearing its minimum voltage threshhold
- Wide range of battery options, including 6-12 cell NiMH packs
- The patented Training Mode is an exclusive Traxxas feature that reduces the overall power output of the VXL-3M by 50%, making it easier for new or younger drivers to control their model. When they're ready, simply change profiles to unleach full-throttle action.
- Advanced curcuit design allows sensorless brushless motors to operate with the smoothness and precision of the best brushed systems. There's no need for additional sensor wiring and hardware complexity
- The EZ-Set push-button setup operates and programs just like other Traxxas speed controls such as the XL-5. This eliminates the need to learn a new set of procedures.
- The VXL-3m is programmable with three drive profiles:
- Sport Mode - Fwd / Brake / Rev
- Race Mode - Fwd / Brake
- Training Mode - 50% Fwd / Brake / 50% Rev
- Multi-colour LED provides clear feedback
- Two-stage thermal shutdown protection protects the VXL-3m from overheating
- Locked Rotor Protection prevents system damage by cutting power if the vehicle is stuck or the motor is bound
- Battery Over-Voltage Protection causes the ESC to go into failsafe mode if the maximum input voltage is exceeded
- Water resistant cause design uses rubber seals and O-rings to protect against damage caused by water and moisture
- Micro fin aluminium heatsink dissipates heat
- MOSFET design provides high-current output with incredibly low resistance (.0005 ohms)
- Gold plated 3.5 mm bullet connectors on 16-gauge Maxx Cable flow full power to the motor without performance-strangling resistance
VXL-3m Electronic Speed Control - Waterproof (brushless) Tech Specs:
- Weight: 106.6g / 3.76oz
- Shipping Weight: 0.11kg / 0.24lbs
- Product Height: 79mm / 3.1in
- Product Width: 56mm / 2.2in
- Product Length: 140mm / 5.5in
- Scale: 01:16
- Age Recommendation: 14+
- Colour: Blue
- Material: Plastic
- Power Source: Electric
Key Info:
- Brand: Traxxas
- Part No: TRX3375
- Barcode: 020334337504
- Motor Type: Brushless
- Fitment: Option Part
- Fitment: Standard Part
- LiPo Compatible: Yes
