Description

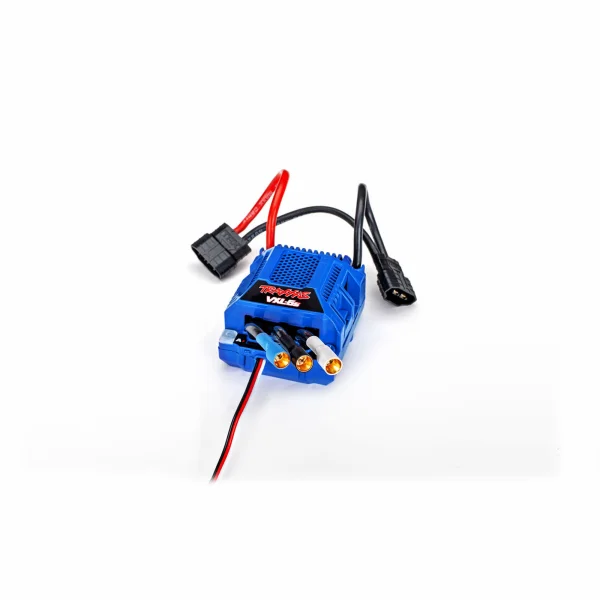

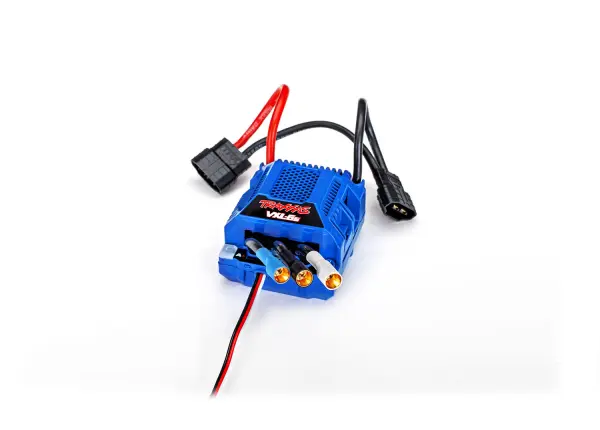

The Traxxas Velineon VXL-6s Electronic Speed Control, waterproof (brushless) (fwd/rev/brake), part number TRX3485T, is a brushless electronic speed control for electric radio-controlled models. It provides forward, reverse and brake functions, with three selectable drive profiles for different driving requirements. Sport Mode offers forward, brake and reverse, Race Mode provides forward and brake, while Training Mode limits output to 50% forward, brake and 50% reverse to make the model easier to control.
The ESC supports battery options from NiMH packs up to 6s LiPo power. Two-stage low-voltage detection provides an indication when a LiPo battery is approaching its minimum voltage threshold, while battery over-voltage protection switches the ESC to failsafe mode if the maximum input voltage is exceeded. Locked rotor protection cuts power if the motor is bound or the vehicle is unable to move.
Control And Protection
An integrated cooling fan works with the heatsink to manage ESC temperatures, supported by two-stage thermal shutdown protection. Multi-colour LED status lights provide feedback on temperature and voltage conditions. Internal safety programming monitors ESC operation, and the EZ-Set push-button is used for setup and programming.
Integrated telemetry provides speed, RPM, voltage and ESC temperature data when used with a compatible Traxxas system. Traxxas high-current connectors and 6.5 mm gold-plated bullet connectors on Maxx cable wiring connect the battery and brushless motor. The water-resistant case uses rubber seals and O-rings to help protect the electronics from water and moisture.
Specifications
- Product dimensions: 133 × 64 × 118 mm
- Weight: 288.04 g
- Battery range: NiMH packs to 6s LiPo
- Motor connection: 6.5 mm gold-plated bullet connectors
- Connector: Traxxas
- Power source: Electric
- Scale: 1:7
- Colour: Blue
Secured by Stripe
Specifications
Few speed controls can match the VXL-6s ESC for raw, tyre-shredding power. Whethertearing through the desert in the Unlimited Desert Racer or maxing out the Sledgeon a 70+ mph speed run, the VXL-6s ESC pours on the power you demand forover-the-top fun. Power doesn’t need to be complicated and the VXL-6s offers thesame user-friendly experience you get with all Traxxas speed controls. Just plug inthe batteries, press the EZ-Set button, and hold on!
LED StatusPatented Traxxas high current connectors funnel power to the ESC through ultra-efficient Maxx cable wiring. Huge 6.5 mm gold-plated connectors deliver power straight to the motor. An integrated fan cools the oversized heatsink to keep ESC temperatures down and extend run times. Bright LED status lights keep you informed with temperature and voltage warnings. Internal safety programming constantly monitors ESC performance to protect it from damage.
Traxxas Velineon VXL-6s Electronic Speed Control, waterproof (brushless) (fwd/rev/brake) Key Features:
- Integrated telemetry for speed, RPM, voltage, and ESC temperature
- Two-stage thermal shutdown protection with integrated cooling fan protects the VXL-6s from overheating
- Bright multi-colour LED status lights provide clear feedback
- Built-in two-stage low voltage detection for Lithium Polymer (LiPo) battery use provides a clear signal to the driver that the batteries are nearing their minimum voltage threshold
- Wide range of battery options from NiMH packs up to 6s LiPo power
- The patented Training Mode is an exclusive Traxxas feature that reduces the overall power output of the VXL-6s by 50%, making it easier for inexperienced drivers to control their model. When you’re ready, simply change profiles to unleash full-throttle action
- The EZ-Set push-button setup operates and programs just like other Traxxas speed controls—eliminating the need to learn a new set of procedures
- The VXL-6s is programmable with three drive profiles: Sport Mode – Fwd / Brake / Rev, Race Mode – Fwd / Brake, Training Mode** – 50% Fwd / Brake / 50% Rev
- Patented Traxxas High-Current Connectors eliminates a common bottleneck and maintain pure, unrestricted power flow from the batteries to the brushless power system
- Locked Rotor Protection prevents system damage by cutting power if the vehicle is stuck or the motor is bound
- Battery Over-Voltage Protection causes the ESC to go into failsafe mode if the maximum input voltage is exceeded
- Water resistant case design uses rubber seals and O-rings to protect against damage caused by water and moisture
- Gold plated 6.5 mm bullet connectors on ultra-efficient Maxx Cable flow full power to the motor without performance strangling resistance
Traxxas Velineon VXL-6s Electronic Speed Control, waterproof (brushless) (fwd/rev/brake) Tech Specs:
- Weight: 288.04g / 10.16oz
- Shipping Weight: 0.29kg / 0.64lbs
- Product Height: 118mm / 4.65in
- Product Width: 64mm / 2.5in
- Product Length: 133mm / 5.25in
- Connector: Traxxas
- Scale: 1:7
- Age Recommendation: 14+
- Colour: Blue
- Material: Plastic
- Power Source: Electric
Key Info:
- Brand: Traxxas
- Part No: TRX3485T
- Barcode: 020334348579
