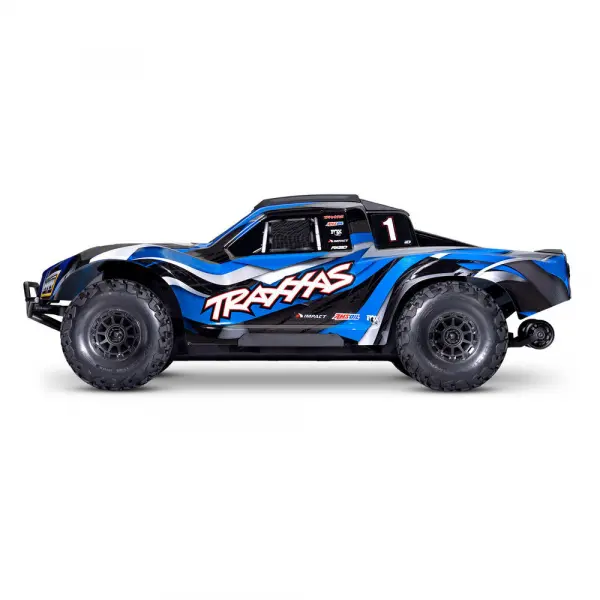

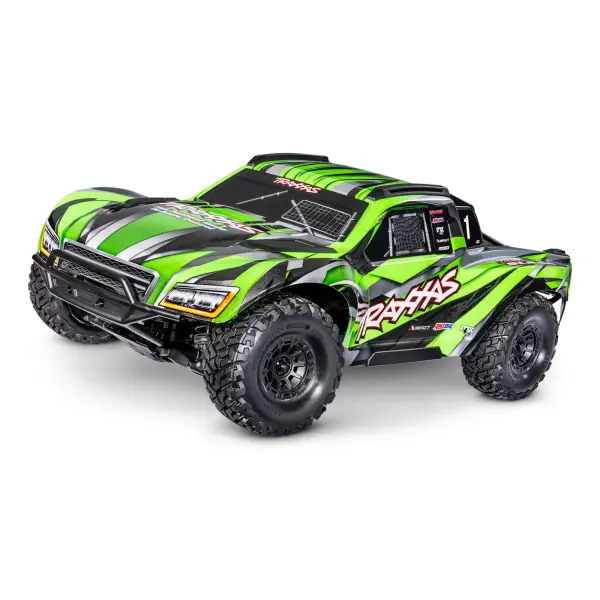

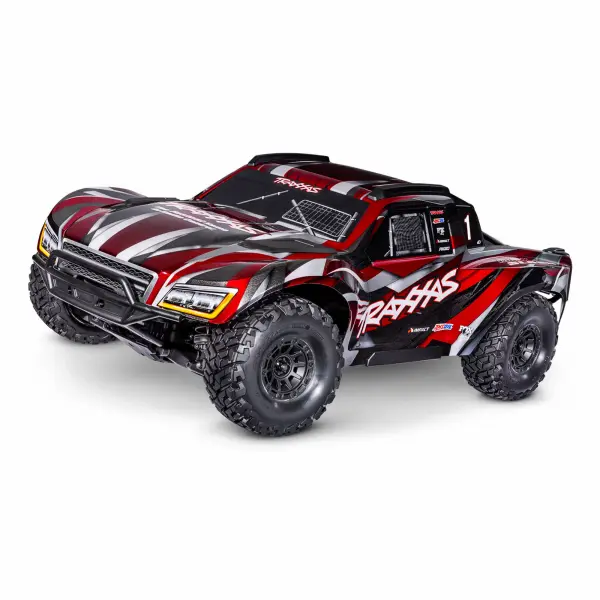

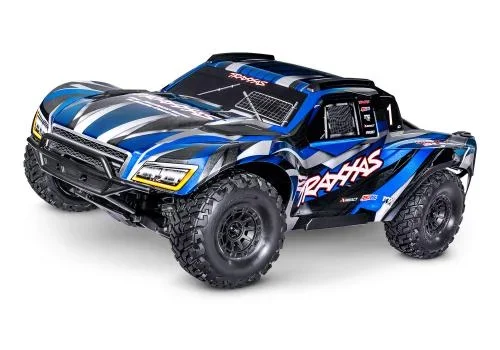

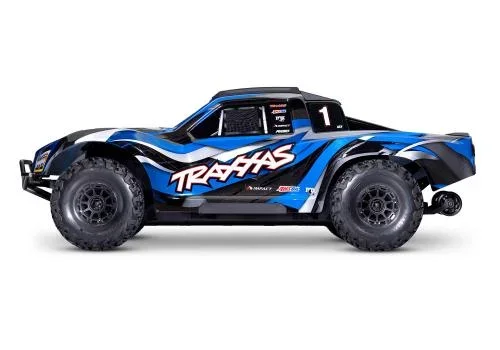

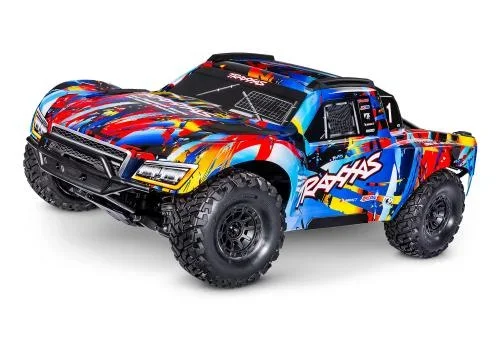

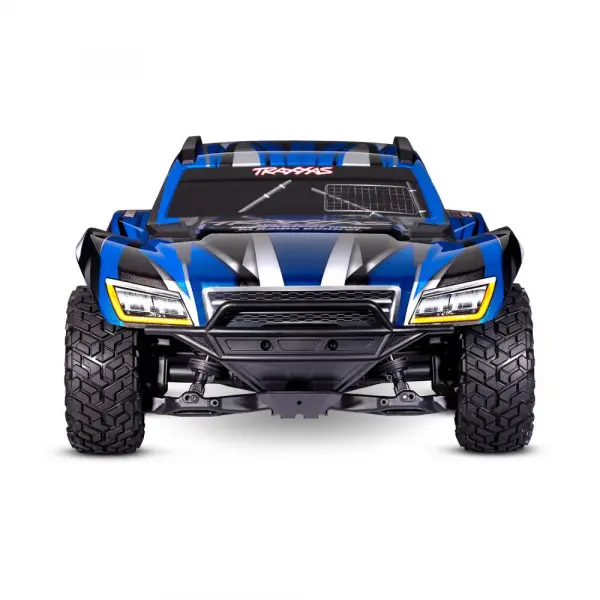

Traxxas MAXX Slash

Traxxas rocked the world 15 years ago with the release of the Slash, launching a short course revolution and a generation of enthusiasts that have propelled Slash to become the best-selling truck in RC. Now, Slash is going even bigger. We MAXXed the Power, Size, Durability, and Excitement!

Traxxas MAXX Slash Features:

• NEW VXL-6s Power

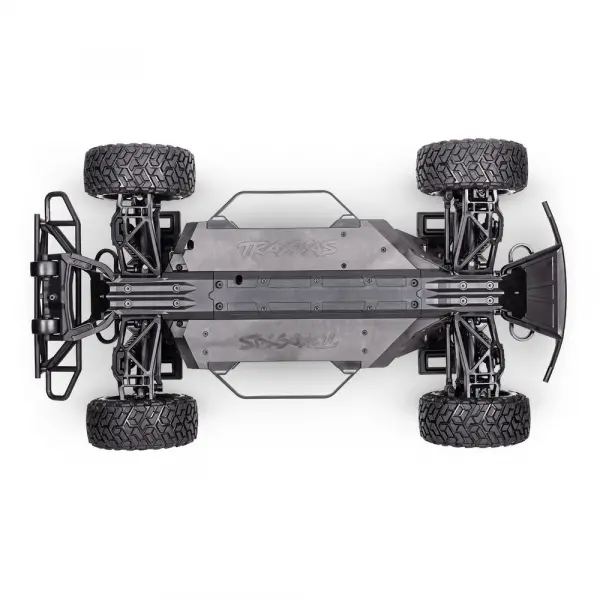

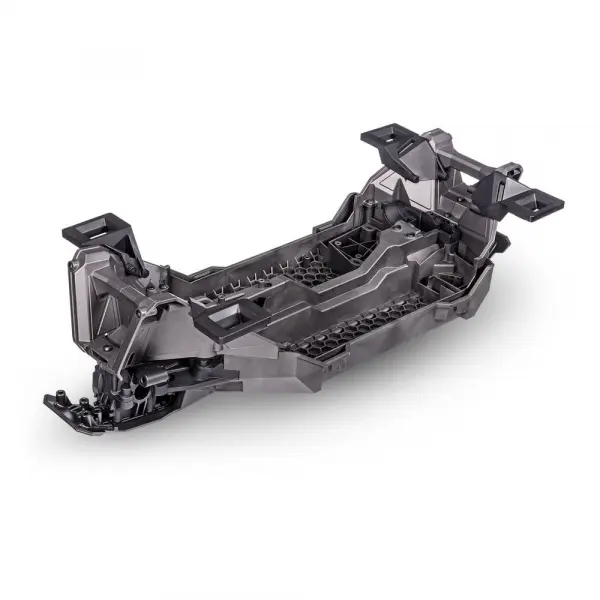

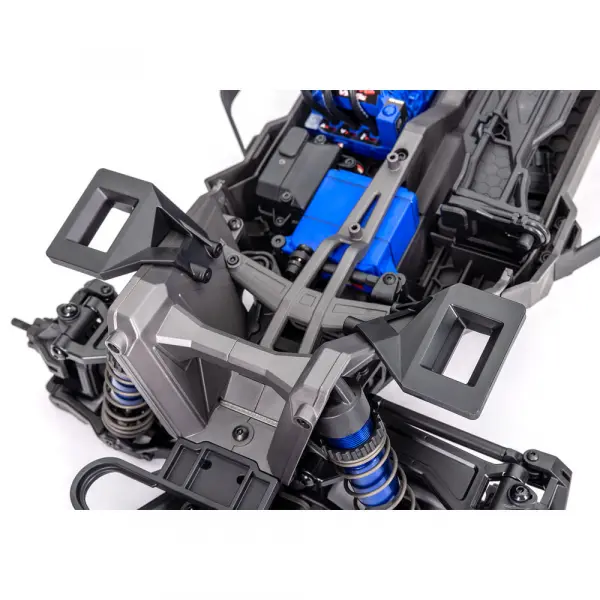

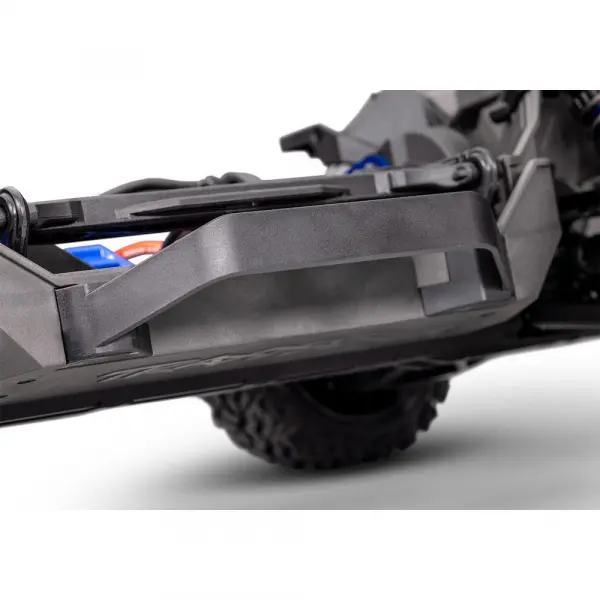

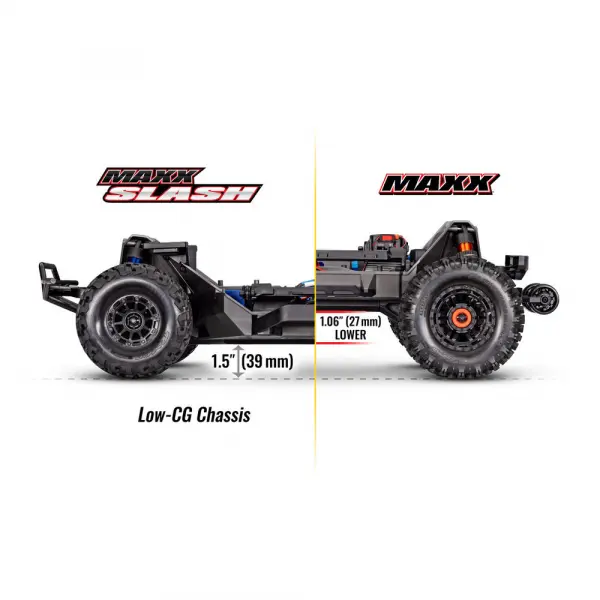

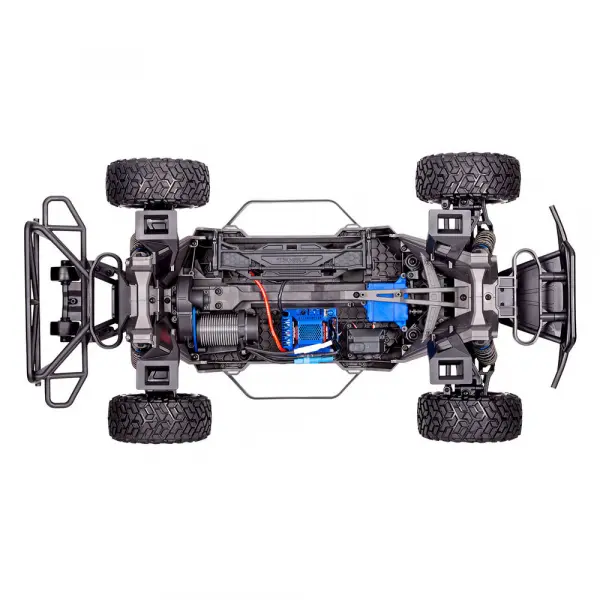

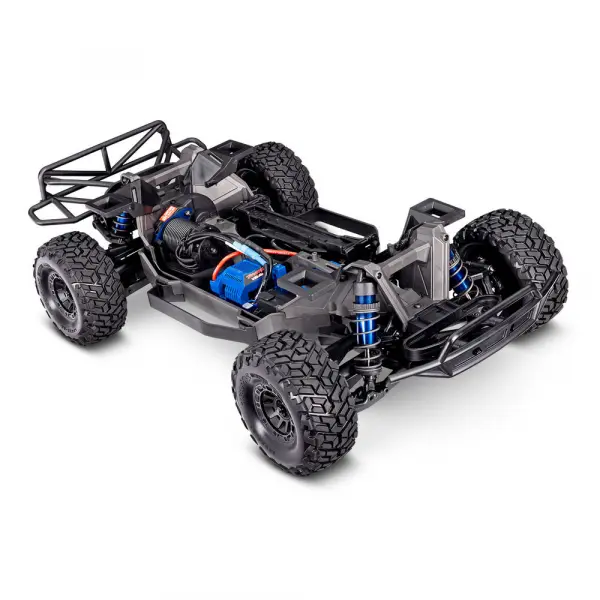

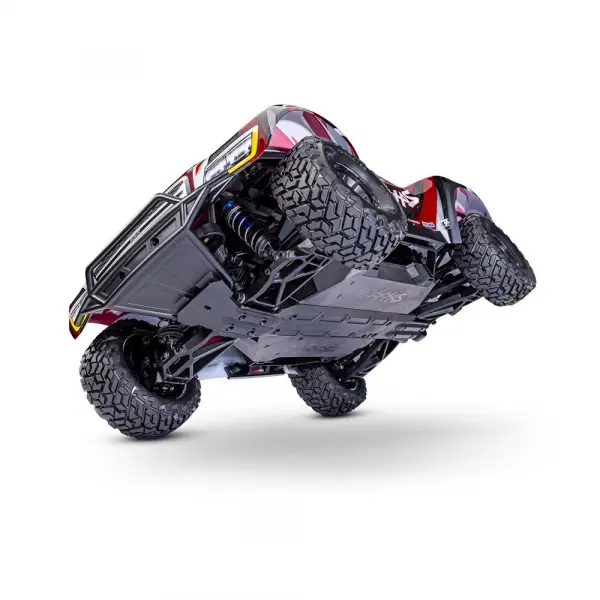

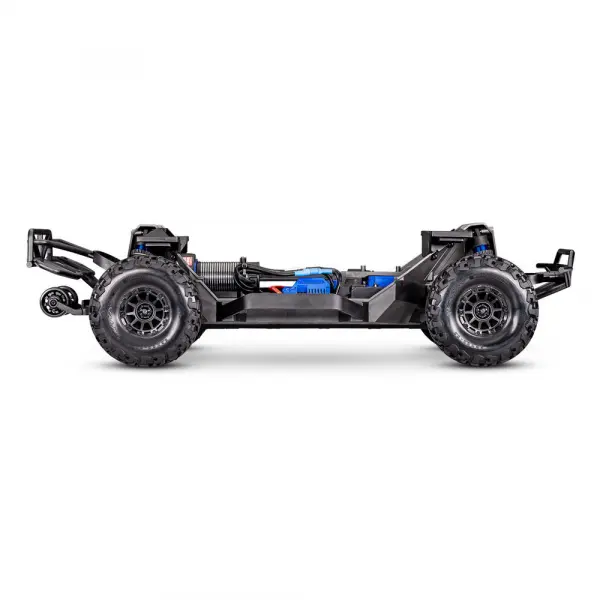

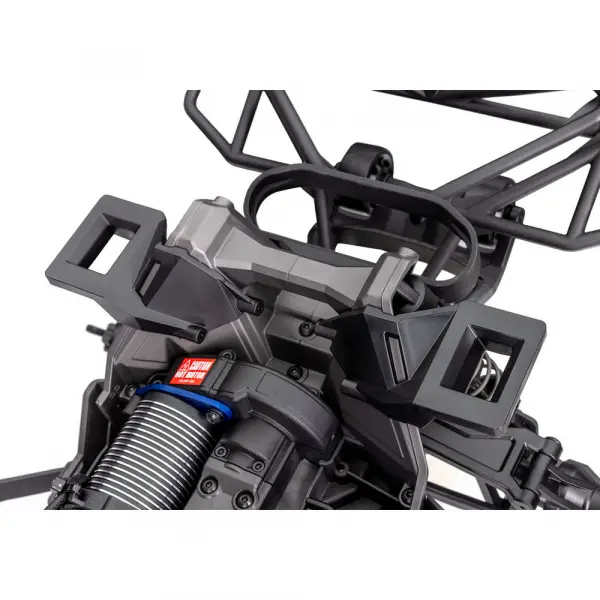

• NEW Low-CG Chassis

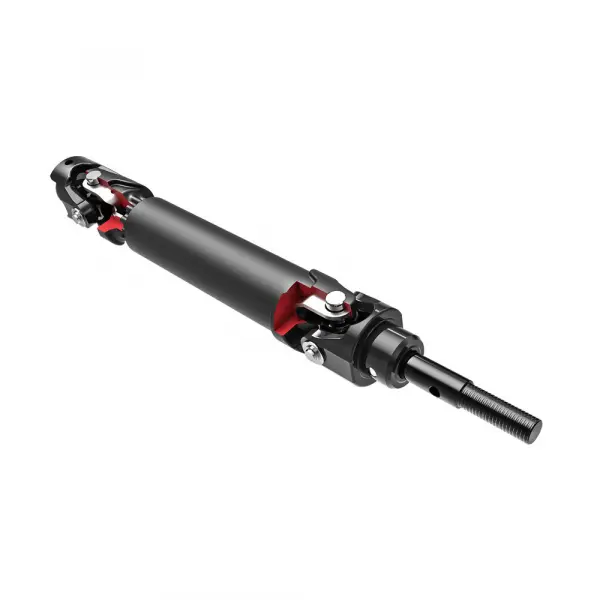

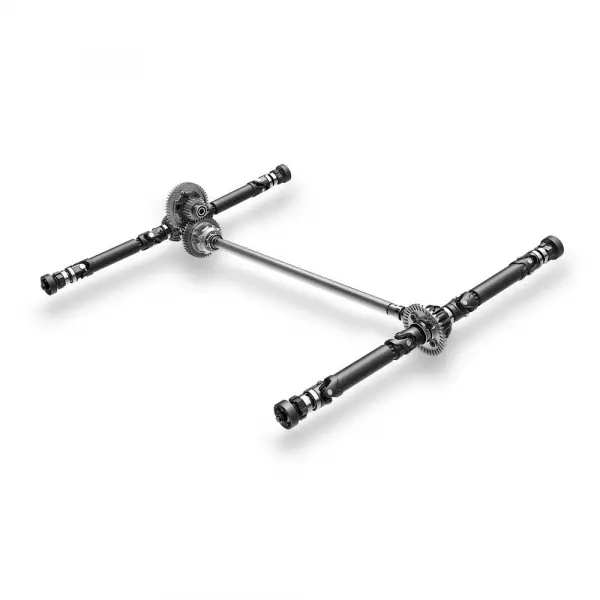

• NEW Steel-Core Hybrid Driveshafts
• NEW Belted Maxx SC Tires

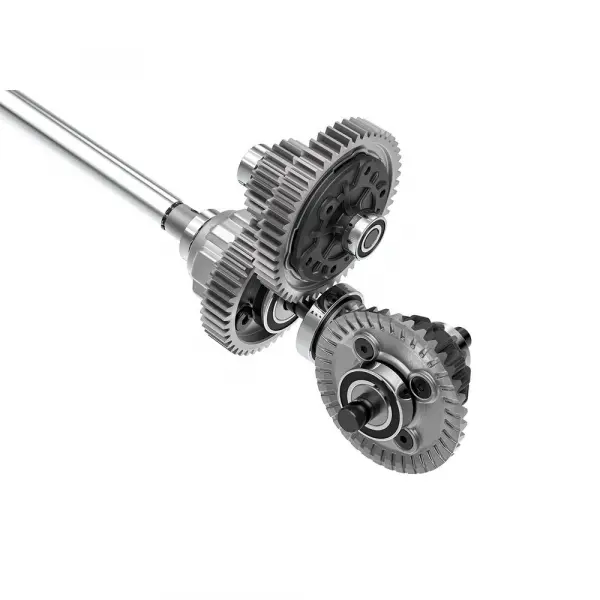

• NEW Torque Biasing Center Drive with Aluminum Housing

6s POWER

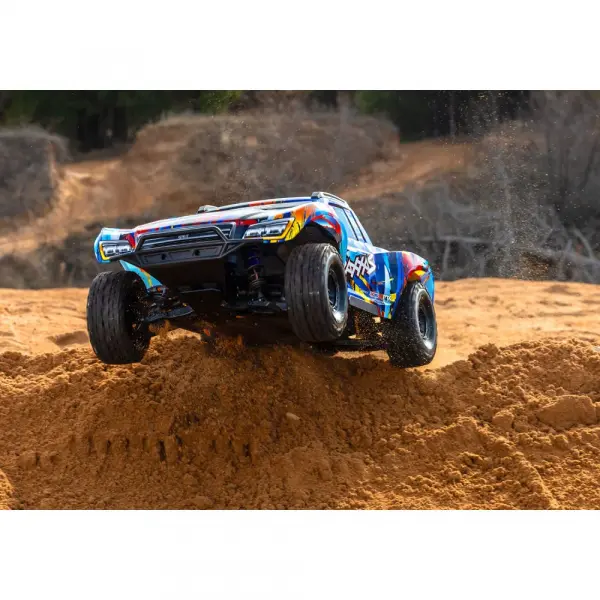

Maxx Slash punches harder and faster with brutal 6s power and 70+mph speed. Low center of gravity and new belted tires keep it all in control.

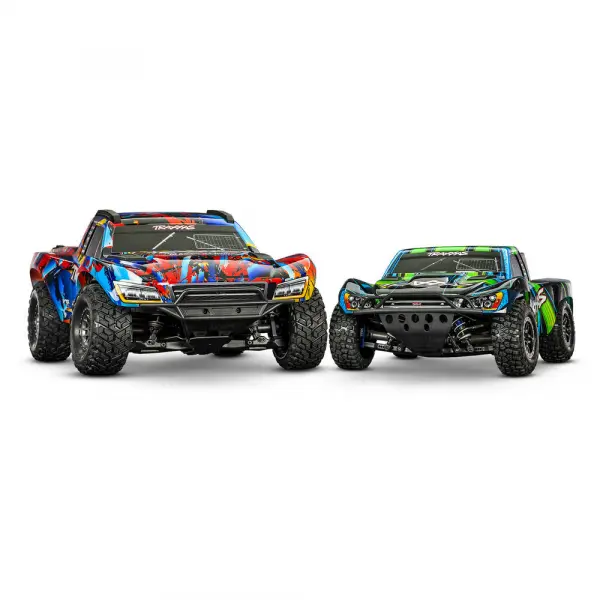

MAXX-SIZED SLASH
Being big is good. Being the perfect size for maximum performance is best. Maxx Slash is the perfect size to power aggressively over the roughest terrain imaginable, yet it is still feels light, responsive, and agile.

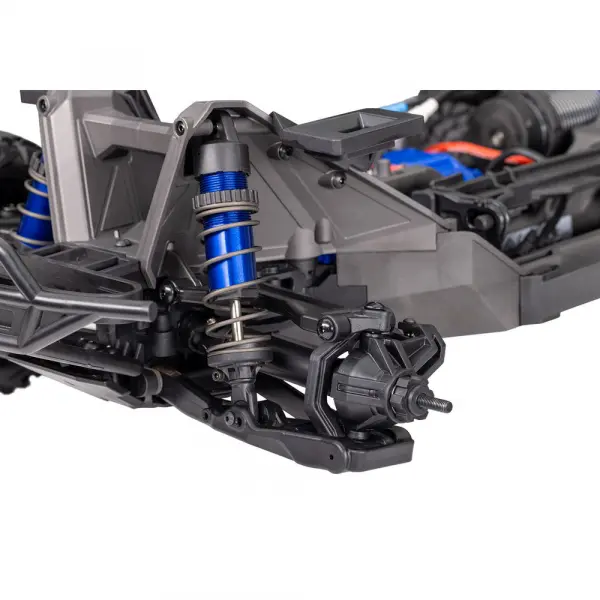

MAXX STRENGTH
The Maxx platform has already proven it’s synonymous with durability. The engineering on Maxx Slash continues to innovate, adding even more strength for critical 6s power handling and faster, harder-hitting action.

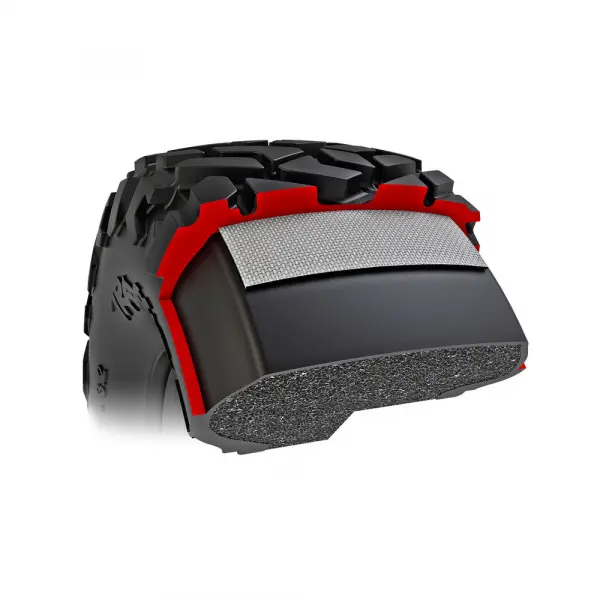

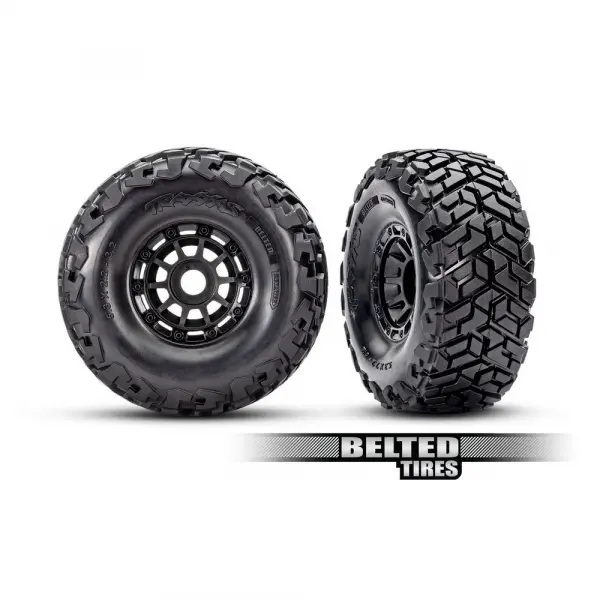

BELTED TIRES

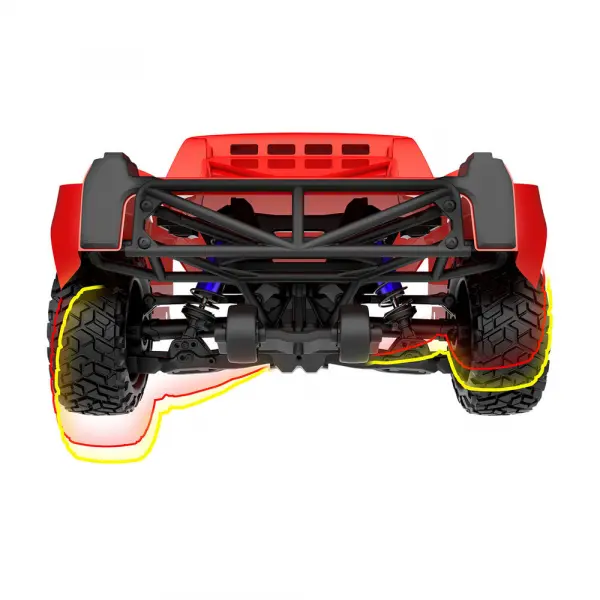

Maxx SC belted tires limit high-speed tire expansion for a larger, flatter contact patch and game-changing precision and control. Tire uniformity is critical for stability, especially at the top of its 70+ mph speed range.

THE TRAXXAS EXPERIENCE
The all-new Maxx Slash delivers class-leading power, ultimate quality, and durability that is engineered to be second to none

Traxxas MAXX Slash Specifications:

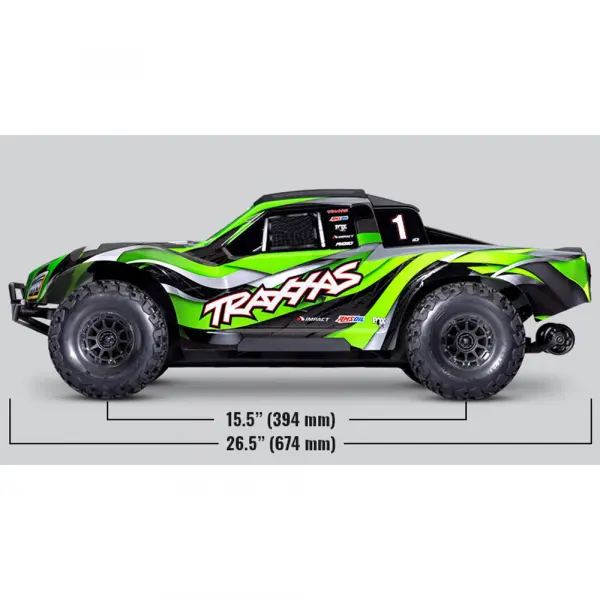

• Length: 26.52 inches (674 mm)
• Front Track: 14.30 inches (363 mm)
• Rear Track: 14.30 inches (363 mm)
• Ground Clearance: 1.54 inches (39 mm)
• Weight (no battery): 11.78 pounds (5.34 kg)
• Height (overall): 9.64 inches (245 mm)

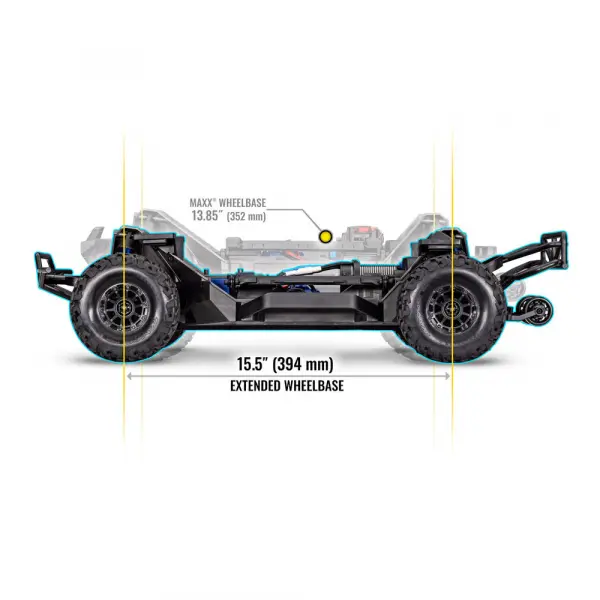

• Wheelbase: 15.49 inches (394 mm)

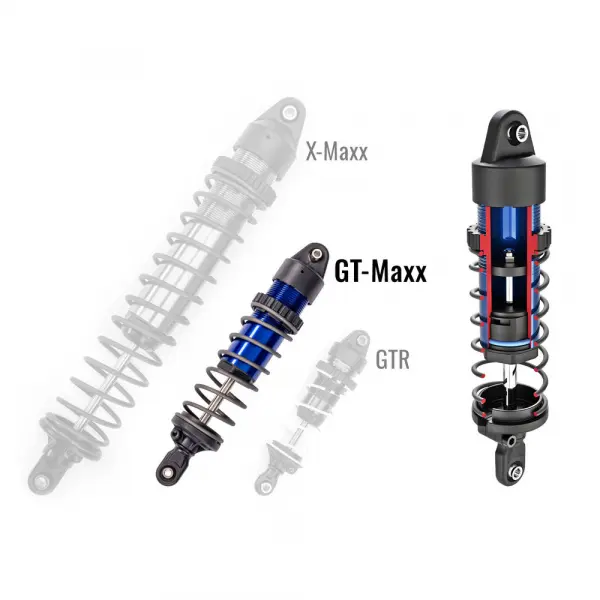

• Shock Length (front): 4.90 inches (124 mm)
• Shock Length (rear): 4.90 inches (124 mm)
• Tire Diameter: 5.27 inches (134 mm)
• Wheel Diameter: 2.2 x 3.2 inches (56 x 81 mm)
• Speed Control: Velineon® VXL-6s

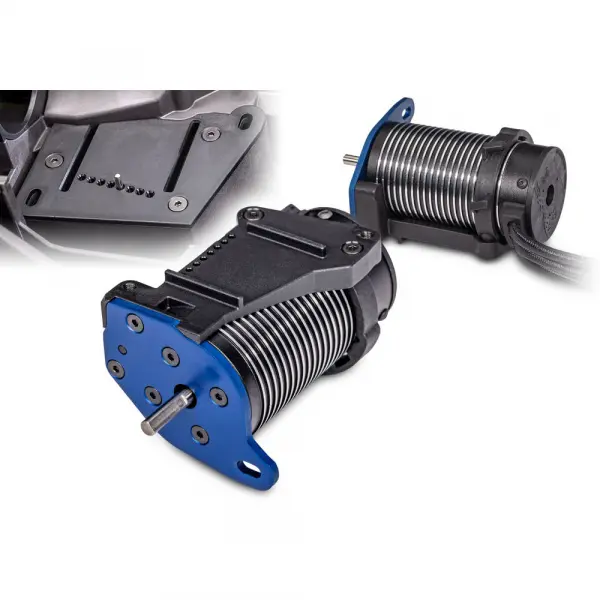

• Motor (electric): Velineon® 2000 kV Brushless
• Overall Drive Ratio: 11.38:1 (25/50 motor pinion and spur gear)

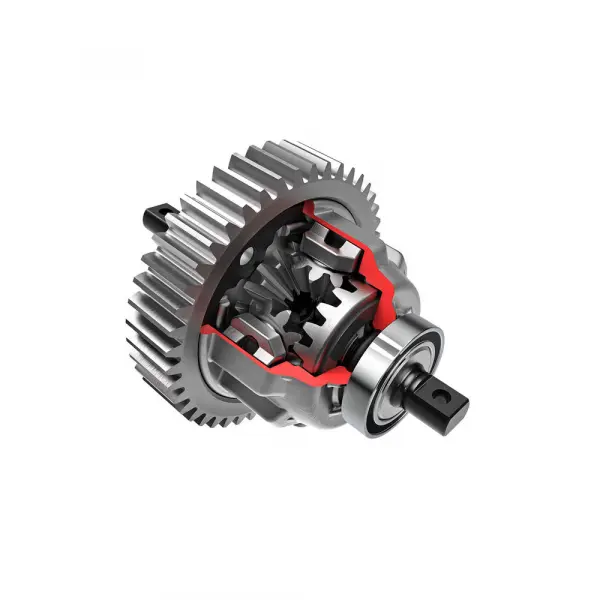

• Differential Type: Sealed, hardened steel bevel, limited slip
• Gear Pitch: Module 1.0
• Chassis Structure/Material: Hex-reinforced nylon composite
• Brake Type: Electronic
• Drive System: Shaft-driven 4WD
• Steering: Double-shear bellcrank
• Wheels & Tires: Dual-profile SCT wheels with Maxx SC belted tires & foam inserts
• Radio System: 2-Channel, TQi™ 2.4 GHz Transmitter with TSM® receiver
• Servo: 2090 Waterproof (285 oz-in torque)
• Top Speed: 70+ mph with two 3s LiPo batteries and optional gearing (sold separately)
• Skill Level: 4
• Battery Tray: (L/W/H): 181 x 56 x 45 mm

What’s In The Box:

• Maxx Slash, Ready-To-Race short course truck with Traxxas 2000 kV brushless motor
• VXL-6s waterproof electronic speed control with integrated telemetry
• Quick Start Guide
• TQi 2.4 GHz radio system
• High quality maintenance tools
• Jumper plug (for 4s battery use)

Traxxas MAXX Slash Requires to Complete:

LiPo Batteries

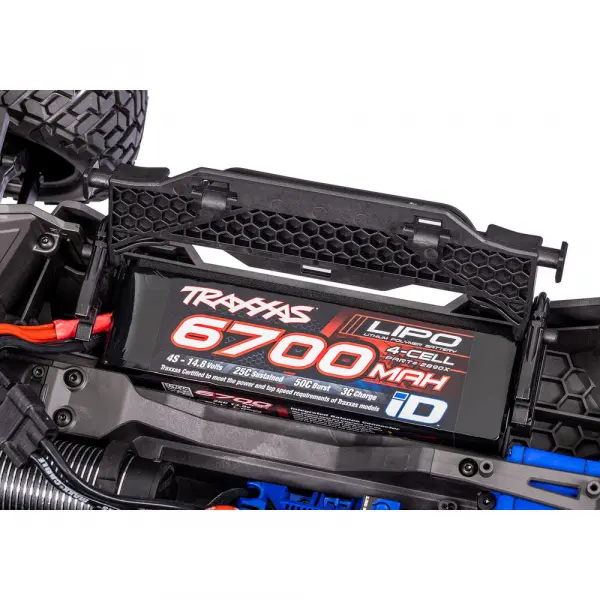

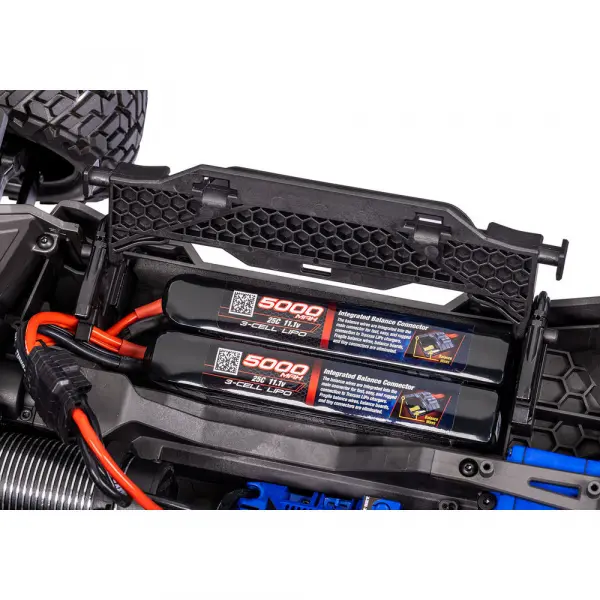

• Traxxas recommends dual 5000 mAh 3-cell 11.1 V Power Cell LiPo batteries for maximum performance. Dual 7600 mAh 7.4 V LiPo batteries or a single 6700 mAh 14.8 V LiPo battery will operate the vehicle with reduced performance. NiMH batteries are not supported.

LiPo Balance Charger with iD™

• Traxxas EZ-Peak® Live 4s-capable charger is recommended for easy and fast charging performance (model 2971).

AA Alkaline Batteries

• Four AA alkaline batteries for the transmitter.

• Brand: Traxxas
• Part No: TRX102076-4
• Scale: 1:8
• Build Level: Assembled (RTR)
• Power Source: Electric - Brushless
• Surface Type: Off Road
• Vehicle Type: Short Course Truck
