XFly X1300 Fpv Monoplane Kit

Brand: XFly

Part No: XFW003K

£82.17 ~~RRP £94.99~~

Shadow Stock: Usually ships next day

Collect Instore

Request Price Match Ask a Question Write a Review Show Spares and Option Parts

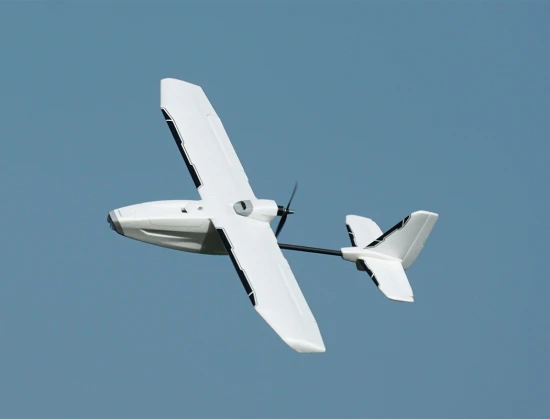

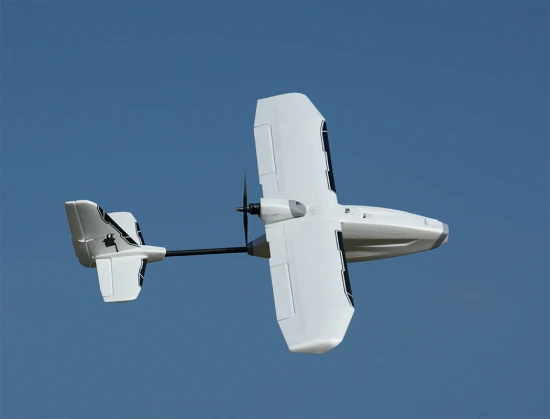

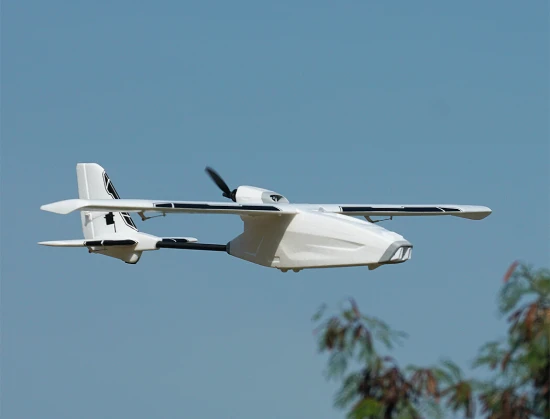

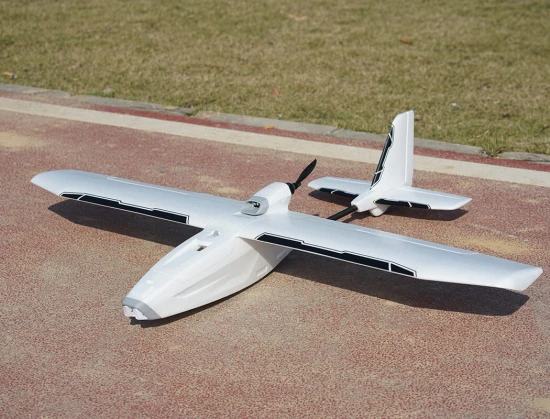

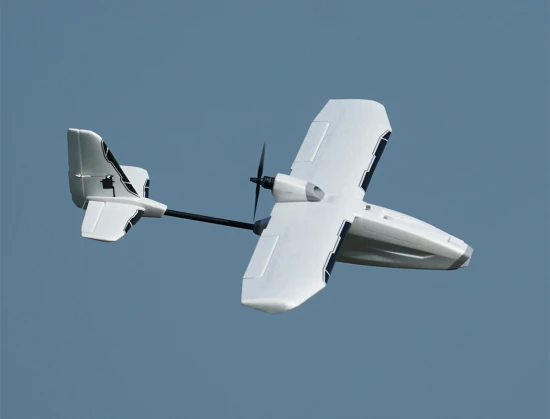

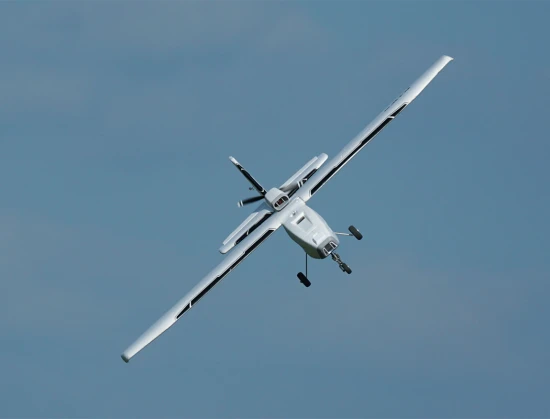

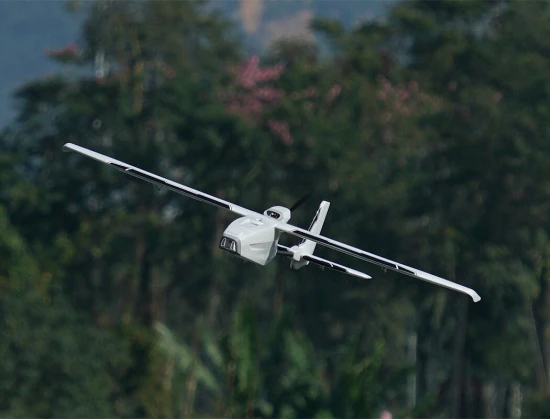

The XFly X1300 FPV Monoplane Kit is a 1300 mm high-wing pusher designed for stable, forward-clear FPV flying. Supplied as an airframe kit (electronics not included), it leverages 3D-printed components and provides downloadable print files so you can reproduce or modify plastic parts. Also referenced as part number XFW003K, it hand launches easily and can use optional landing gear (sold separately) for ground take-off.

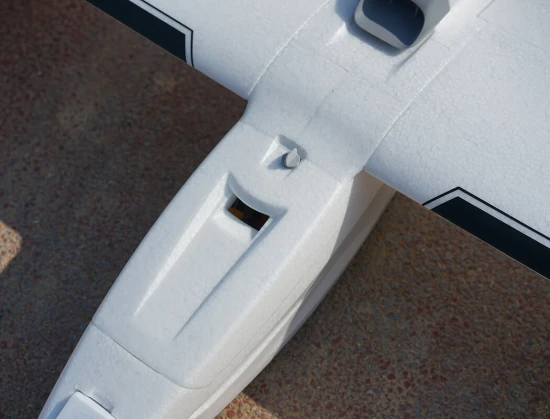

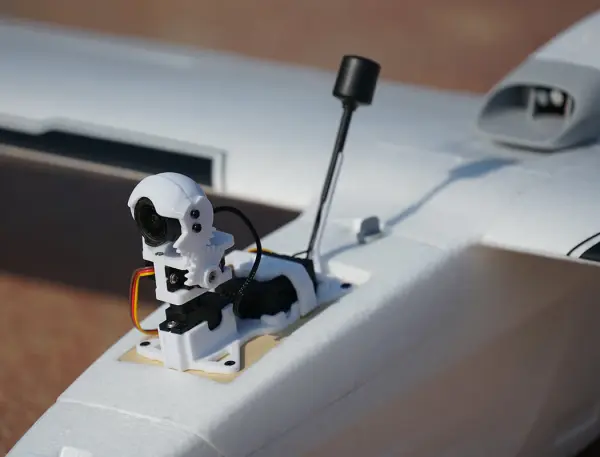

Assembly is quick and tool-free with no screws or glue. The spacious battery bay accepts common 4S LiPo packs or 21700 formats for optimised endurance. A mounting spot on the battery hatch supports FPV installation; suggested compatibility includes DJI O3 or the Walksnail Moonlight Kit. The airframe supports both fixed-view cameras and multi-axis gimbals, and there is a reserved position should you wish to add flaps.

Features

Quick assembly with no screws or glue required.
Spacious battery compartment allowing for 4S LiPo batteries or 21700 batteries for optimised flight times.
3D files accessible to download, making it easy to acquire plastic parts needed.
Digital metal gear servos with ball-link equipped linkages for precise and stable movement.

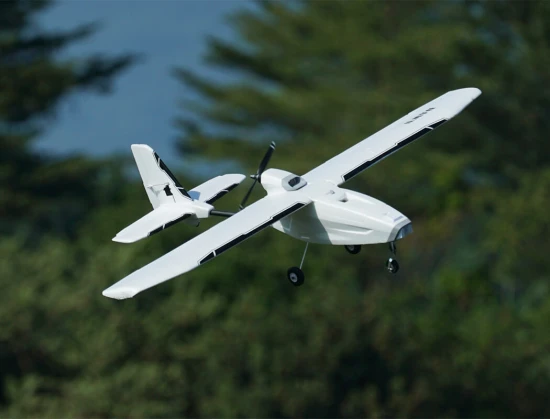

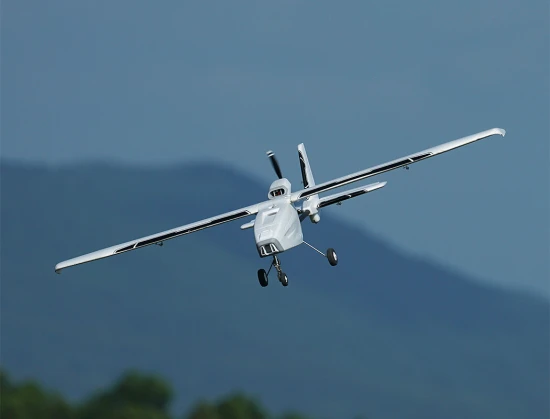

Easy to hand launch, or install the optional landing gear to take off from the ground.
Flaps can be added in the reserved position.

Specifications

Material: Lightweight EPO & PLA
Wingspan: 1300 mm (51.2 in)
Wing Loading: 58 g/dm²
Wing Area: 22.5 dm²
Length: 972 mm (38.3 in)
Flying Weight: Around 1300 g
Servos: 9 g metal gear x5 (not included)
Motor: 2212 1400 Kv outrunner brushless (not included)
ESC: 40 A brushless (not included)
Propeller: 8x5 two-blade set (included)
Battery: Li-Po 4S 14.8 V 2600–3300 mAh or 21700-4S1P 5000 mAh (21700-4S2P 10000 mAh) (not included)
Radio: 4–6 channel (not included)
Approximate Flying Time: 10–30 minutes
Assembly Time: ~15 minutes
Skill Level: Beginner
Age Level: 14+ years
Flaps: No
Retracts: No
Landing Gear: Optional
Prop Size: 8x5

Suggested Compatibility

FPV systems: DJI O3 or Walksnail Moonlight Kit

Free Shipping

On UK Orders over £100

Happy to Help

Helpful, friendly advice

28 Day Returns

Easy returns process

Secure Payments

Secured by Stripe

XFLY X1300 FPV MONOPLANE KIT (ELECTRONICS NOT INCLUDED)

XFly Model X1300 is an FPV aircraft which uses 3D printing technology on most components. 3D files are accessible for customers to download and print plastic parts for replacement or modification, making it possible to explore more fun.

X1300 is a high wing monoplane with 1300mm wingspan and a rear-mounted pusher propeller, delivering FPV flying experience with stability and forward visibility. Hand launch is a breeze while taking off from the ground with landing gears (sold separately) is also an option. Assembly is simple and quick with no screws or glue needed and you can get the aircraft assembled in just a few minutes. Battery compartment is spacious enough to accommodate common 4S LiPo batteries or 21700 batteries for optimised flight times. With a place reserved on the battery hatch, DJI O3 or Walksnail Moonlight Kit FPV transmission system can be installed. X1300 also supports simultaneous installation of fix view and multi-axis gimbals. Moreover, customers can modify the aircraft and add flaps in the reserved position.

Features

Quick assembly with no screws or glue required.
Spacious battery compartment allowing for 4S LiPo batteries or 21700 batteries for optimised flight times.
3D files accessible to download, making it easy to acquire plastic parts needed.
Digital metal gear servos with ball-link equipped linkages for precise and stable movement.
Easy to hand launch, or install the optional landing gears to take off from the ground.
Flaps can be added in the 'reserved position'.

Specifications

Material: Light Weight Strong EPO & PLA
Wing Span: 1300mm (51.2in)
Wing Load: 58g/dm²
Wing Area: 22.5dm²
Length: 972mm (38.3in)
Flying Weight: Around 1300g
Servo: 9g Metal Gear Servo x 5 (Not Included)
Motor: 2212 1400Kv Outrunner Brushless Motor (Not Included)
ESC: 40A Brushless ESC (Not Included)
Propeller: 8 x 5 2 Blade Propeller x 1 Set (Included)
Battery: Li-Po 4s 14.8v 2600mAh - 3300mAh / 21700-4S1P-5000mAh (21700-4S2P-10000mAh) (Not Included)
Radio: 4 - 6 Ch Radio Control (Not Included)
Approximate Flying Time: 10-30 mins
Assembley Time: 15 mins
Skill Level: Beginner
Age Level: 14+ Years
Flap: No
Retract: No
Landing Gear: Optional
Prop Size: 8x5''

Key Info:

Brand: XFly
Part No: XFW003K
Barcode: 5056135780763
Power: Electric
Flying Style: FPV (First Person Video)
Assembly Level: Kit (Unassembled)
