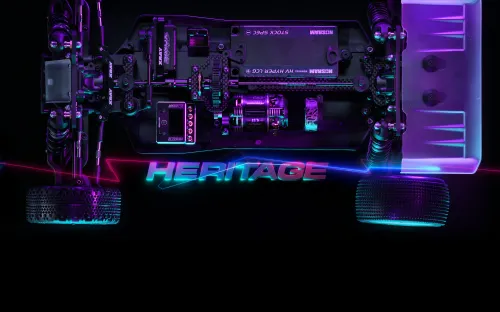

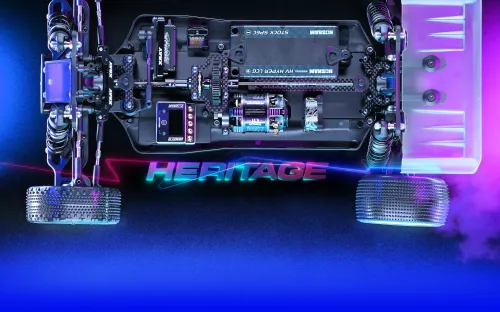

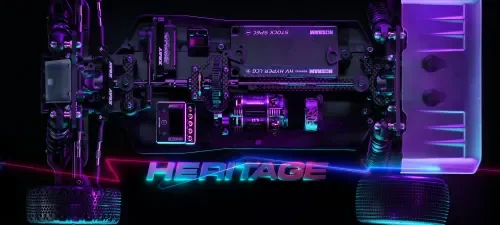

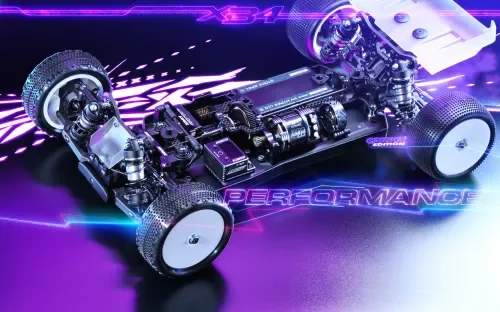

XRay XB4C 26 - Carpet Edition

The XRAY XB4C 26 Carpet Edition (XR360019) refines handling for high-traction conditions with a focus on a lower centre of gravity and reduced rotating mass. Centralised and lowered components, updated chassis geometry and lightweight hardware combine to deliver precise, consistent performance on demanding carpet layouts.

Key Features

• Centralised and lowered components reduce rotational inertia and lower CG to improve handling dynamics.
• Revised chassis plate accommodates new side guards and motor mount dimensions, allowing lower battery and motor placement.
• New motor and central bulkhead lower the motor position and improve CG.
• New carbon centre upper deck for XB4C.
• Smaller spur gear maximises the benefit of the lower motor position.
• Updated side guards provide clearance for lowered motor and battery positions and allow easier installation.
• New front and rear bulkheads include provisions for anti-roll bar centring collars.
• Rear carbon T-shaped chassis brace introduces additional flex adjustment choices.
• Narrowed rear chassis brace positions motor and battery closer to the centre line.
• Ultra-light and strong titanium front and rear shock mounts.
• Ultra-light and strong titanium turnbuckles.
• Steering plate and servo saver mounted with bearings for smooth, precise operation.
• Lighter differential outdrives reduce rotating mass.
• Lighter slipper outdrives reduce rotating mass.
• Shorter shock caps increase up-travel range.
• Lowered 6 mm spring collars provide a larger ride height adjustment range.
• New front wing improves car control in the air and results in easier jumping.
• Rear wheel hub 2-slot for XB4.

XB4C Carpet Edition Highlights

• Includes smaller 78T slipper clutch spur.
• 2.0 mm front and rear anti-roll bar included.
• New lower rear shock tower (5 dot) reduces chassis roll on high traction.

Built on XRAY’s race-proven platform, the XB4C 26 leverages lowered mass, refined flex options and lightweight driveline components to deliver responsive steering, stability and traction where it counts. Part number XR360019.
